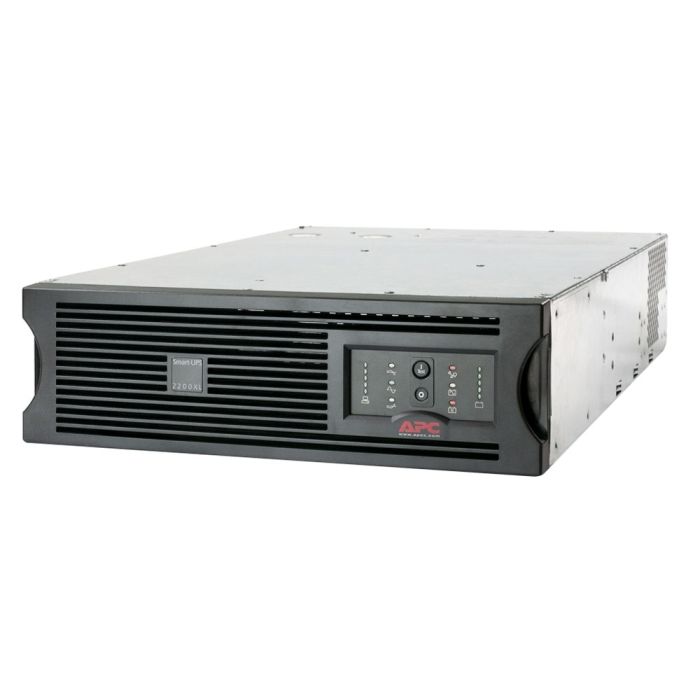

APC Smart-UPS XL 2200VA 1980W RM 3U 230V SUA2200RMXLI3U - Refurbished
APC Smart-UPS XL 2200VA 1980W RM 3U SUA2200RMXLI3U
Model: SUA2200RMXLI3U
Input: IEC-320 C20, Schuko CEE 7 / EU1-16P, British BS1363A
Output: (8) IEC 320 C13 (Battery Backup), (1) IEC 320 C19 (Battery Backup), (2) IEC Jumpers (Battery Backup)
Line-Interactive UPS - Sinewave Output
New batteries, Refurbished UPS
1 Year Warranty Included
$699.99
Out of stock
Manufacturer: APC
Model: APC Smart-UPS XL 2200VA 1980W, RM, 3U, 230V
Condition: New batteries, refurbished UPS
Part Number: SUA2200RMXLI3U
Maximum output: 1980W / 2200VA
Typical backup time at half load: 26.15 minutes (990 Watts)
Typical backup time at full load: 7.6 minutes (1980 Watts)
Warranty: 1 year full replacement warranty
APC Smart-UPS XL 2200VA 1980W SUA2200RMXLI3U Manual
SUA2200RMXLI3U - APC Smart-UPS XL Specifications:
Main:
|
Main Input Voltage |
230V |
|||||
|
Main Output Voltage |
230V |
|||||
|
Other Output Voltage |
220V |
|||||
|
Rated Power in W |
1980W |
|||||
|
Rated Power in VA |
2200VA |
|||||
|
Input Connection Type |
|
|||||
|
Output Connection Type |
|
|||||
|
Number of Rack Unit |
3U |
|||||
|
Cable Length |
1.83 m |
|||||
|
Number of Cables |
1 |
|||||
|
Battery Type |
Lead-Acid Battery |
Batteries & Runtime:
|
Additional Information |
Configurable for 220 : 230 or 240 nominal output voltage |
|
Extended Runtime |
1 |
|
Number of Battery Filled Slots |
0 |
|
Number of Battery Free Slots |
0 |
|
Battery Recharge Time |
3 h |
|
Number of Battery Replacement Quantity |
1 |
|
Battery Life |
3 - 5 year(s) |
|
Replacement Battery |
APCRBC105 |
|
Battery Charge Power (Watts) |
287 W rated |
|
Battery Power in VAH |
864 VAh runtime |
|
Battery Option |

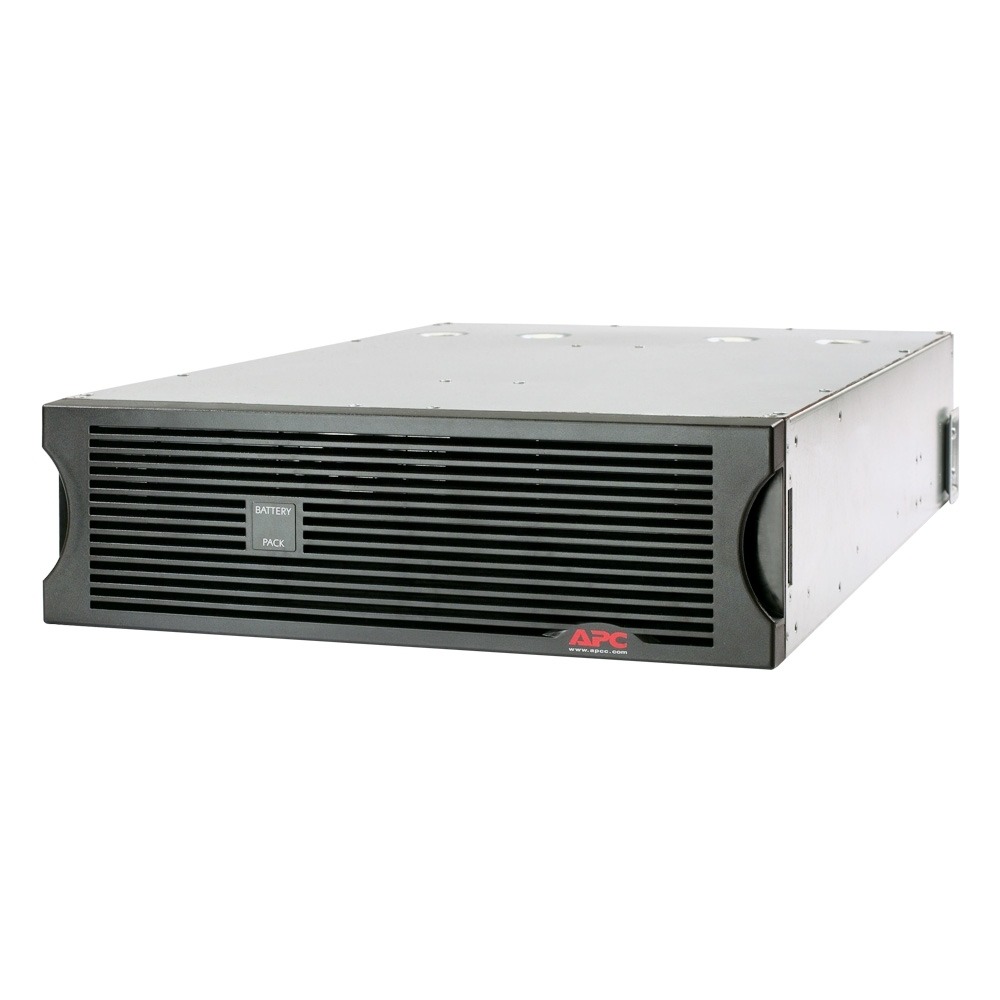

SUA48RMXLBP3U 1 2016 VAh |
General:
|
Number of Power Module |
1750 |
|
Number of Power Module Filled Slots |
0 |
|
Number of Power Module Free Slots |
0 |
|
Product Web Sub-Family |
Extended run |
|
Redundant |
No |
Physical:
|
Color |
Black |
|
Height |
133mm, 13.3cm |
|
Width |
483mm, 48.3cm |
|
Depth |
660mm, 66.0cm |
|
Net Weight |
60.0kg |
|
Mounting Location |
Front |
|
Mounting Preference |
Lower |
|
Mounting Mode |
Rack-mounted |
|
USB Compatible |
Yes |
Input:
|
Network Frequency |
50/60 Hz +/- 3 Hz auto-sensing |
|
Input Voltage Limits |
151 - 302 V adjustable |
Output:
|
Harmonic Distortion |
Less than 5 % at full load |
|
Maximum configurable power in VA |
2200VA |
|
Maximum Configurable Power in W |
1980W |
|
Topology |
Line Interactive |
|
Waveform Type |
Sine wave |
|
Transfer Time |
2-4 ms |
|
Efficiency |
96 % (full load) |
|
Output Frequency (sync to mains) |
47 - 53 Hz for 50 Hz nominal sync to mains |
Conformance:
|
Product Certifications |
C-Tick |
Environmental:
|
Acoustic Level |
53 dBA |
|
Heat Dissipation |
375 Btu/h |
|
Operating Altitude |
0 - 10000 ft |
|
Ambient Air Temperature for Operation |
32 - 104 °F (0 - 40 °C) |
|
Ambient Air Temperature for Storage |
5 - 113 °F (-15 - 45 °C) |
|
Storage Altitude |
0 - 50000 ft (0.00 - 15240.00 m) |
|
Relative Humidity |
0 - 95 %
|
|
Storage Relative Humidity |
0 - 95% |
Communications & Management:
|
Control Panel |
LED status display with load and battery bar-graphs and on line : on battery : replace battery : and overload indicators |
|
Alarm |
Alarm when on battery : distinctive low battery alarm : configurable delays |
|
Emergency Power Off (EPO) |
Optional |
|
Free Slots |
1 |
Surge Protection and Filtering:
|
Surge Energy Rating |
480 J
|
|
Noise Suppression |
Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
|
