39% Off

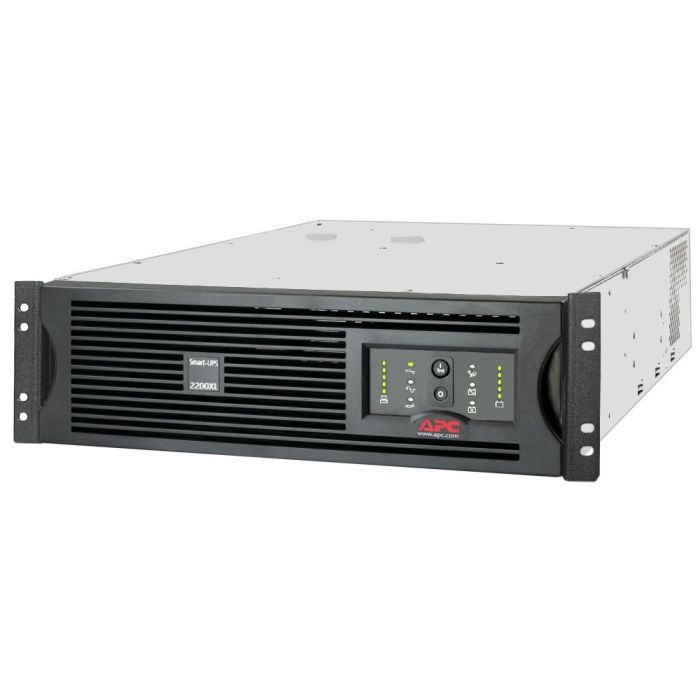

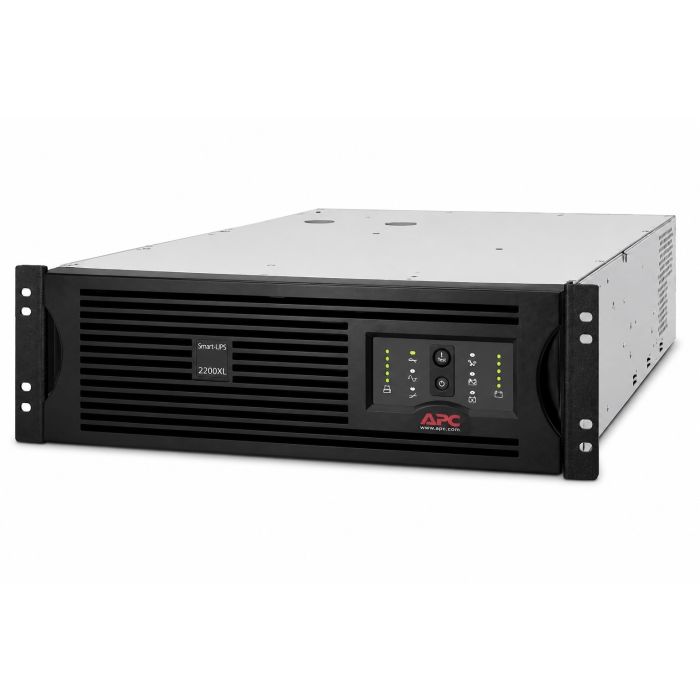

APC Smart-UPS XL 2200VA RM 3U
Model: SUA2200RMXL3U

1980 Watts / 2200 VA
Output: (9) NEMA 5-15R, (2) NEMA 5-20R
Refurbished with New Batteries
1 Year Replacement Warranty

Availability: In stock

Msrp Price: $824.99

Now only: $499.99

Shipping Info
  • This item is in stock and ships within 1 business day
  • We will gladly accept returns for any reason within 30 days of receipt of delivery
  • Continental USA & Canada



Manufacturer: APC
Model: APC Smart-UPS XL 2200VA RM 3U
Condition: Refurbished with Brand New Batteries
Part Number: SUA2200RMXL3U
Maximum output: 1980 Watts / 2200 VA
Battery Protected Outlets: 11
Typical backup time at half load: 24 minutes (990 Watts)
Typical backup time at full load: 9 minutes (1980 Watts)
Warranty: 1 Year Full Replacement warranty. 30 Day Full Money Back Guarantee
Includes: APC Smart UPS 2200XL (rail kit not included)

This APC Smart-UPS XL 2200VA rack mount 3U is an extended runtime UPS. This UPS can have external battery packs attached to allow for a significant increase in runtime. It is a modular UPS providing the ability to expand as the need for run time increases. Up to ten external battery packs can be added to this UPS to provide an extremely long run time. If you need help configuring your UPS for a specific run time, contact us and we will configure it for you.


Output Power Capacity

1980 Watts / 1850 VA

Max Configurable Power

1980 Watts / 2200 VA

Nominal output voltage


Output Voltage Distortion

less than 5% at full load

Output Frequency (sync to mains)

47-53Hz for 50Hz nominal , 57-63Hz for 60Hz nominal

Crest Factor

up to 5 : 1

Waveform type


Output Connections

(9) NEMA 5-15R

(2) NEMA 5-20R



Nominal input voltage 120V
Input frequency 50/60 Hz +/- 3 Hz (auto sensing)
Input Connection Type NEMA L5-20P
Cord Length 8 feet ( 2.44 meters )
Input voltage range for main operations 82 - 147 V
Input voltage adjustable range for mains operation 75 - 154 V


Batteries and Runtime:

Battery Type

Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof

Replacement battery cartridge


RBC™ Quantity


External Battery Pack


Typical backup time
at half load

24 minutes (990 Watts)

Typical backup time
at full load

9 minutes (1980 Watts)

Communications and Management:

Interface port DB-9 RS-232 , SmartSlot
Available Smart Slot Interface Quantity 1
Control panel LED status display with load and battery bar-graphs and On Line : On Battery : Replace Battery : and Overload Indicators
Audible alarm Alarm when on battery : distinctive low battery alarm : configurable delays
Emergency Power Off (EPO) Optional


Surge energy rating 880 Joules
Filtering Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449)


Maximum Height

5.26 inches (133 mm)

Maximum Width

19.00 inches (483 mm)

Maximum depth

26.00 inches (660 mm)

Rack Height

3 U

Net Weight

131.00 lbs. (59.55 kg)

Shipping Weight

153.00 lbs. (69.55 kg)
