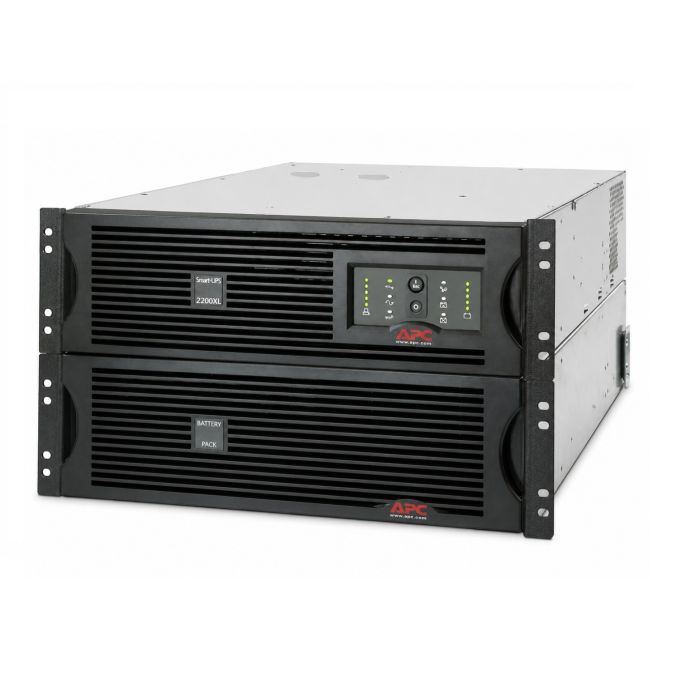

Main image Click to view image in fullscreen APC SUA2200RMXL3U 2200VA UPS + SUA48RMXLBP3U Battery Pack - Refurbished

APC UPS 2200VA 1980W SUA2200RMXL3U + SUA48RMXLBP3U Battery Pack 120V 20A, RM 6U - Refurb

APC Smart-UPS XL 2200VA 1980W RM 3U + External Battery Pack
Model: SUA2200RMXL3U + SUA48RMXLBP3U
Input: NEMA 5-20P (120V - 20A)
Output: (9) NEMA 5-15R, (2) NEMA 5-20R
Line-Interactive UPS - Sinewave Output
Extended Runtime Configuration
New batteries, Refurbished UPS & Battery Pack
1 Year Warranty Included

Extended Warranty *

1 Year Included

2 Year + $20.00

3 Year + $35.00

In stock

Quantity

Manufacturer: APC
Model: APC Smart-UPS XL 2200VA 1980W RM 3U with External Battery Pack
Condition: New Batteries, Refurbished UPS & Battery Pack
Part Number: SUA2200RMXL3U + SUA48RMXLBP3U
Maximum output: 1980W / 2200VA

Typical Backup Time with 1 EBM (at Half Load):

o SUA2200RMXL3U: Approximately 24 minutes (990 Watts)

o SUA48RMXLBP3U: Approximately 60+ minutes total runtime (990 Watts with 1 EBM)

Typical Backup Time with 1 External Battery Pack (at Full Load):

o SUA2200RMXL3U: Approximately 9 minutes (1980 Watts)

o SUA48RMXLBP3U: Approximately 25-35 minutes total runtime (1980 Watts with 1 EBM)

Warranty: 1 year full replacement warranty

Description: APC Smart-UPS XL SUA2200RMXL3U with SUA48RMXLBP3U External Battery Pack is a refurbished extended runtime UPS solution designed for servers, network equipment, telecom systems, and critical rackmount infrastructure. This 2200VA / 1980W line-interactive UPS delivers pure sine wave output and reliable battery backup protection in a rackmount 6U configuration. The included external battery pack significantly extends runtime for longer power protection during outages. Features include automatic voltage regulation (AVR), intelligent battery management, LED status indicators, USB connectivity, and hot-swappable lead-acid batteries. Input connection is NEMA 5-20P with output connections including (9) NEMA 5-15R and (2) NEMA 5-20R receptacles. Both the UPS and external battery pack include newly installed batteries and are backed by a 1 year full replacement warranty.

APC SMART-UPS XL 2200VA 1980W LCD RM 3U SUA2200RMXL3U Manual

APC Smart-UPS XL 48V RM 3U Battery Pack SUA48RMXLBP3U User's Manual

SUA2200RMXL3U & SUA48RMXLBP3U - APC Smart-UPS XL 2200VA Extended Runtime Specifications::

Key Features:
Main Input Voltage	120V
Main Output Voltage	120V
Rated Power in W	1980W
Rated Power in VA	2200VA
Output Power Capacity	1980W / 2200VA
Rack Height	6U Total
UPS Rack Height	3U
External Battery Pack Height	3U
Output Connections	(9) NEMA 5-15R
	(2) NEMA 5-20R
Nominal Output Voltage	120V
Nominal Input Voltage	120V
Input Connections	NEMA 5-20P
Topology	Line Interactive
Waveform Type	Pure Sine Wave
Extended Runtime Support	Yes
External Battery Pack Included	Yes
Battery Expansion Capability	Yes
Form Factor	Rackmount
AVR Support	Automatic Voltage Regulation
Hot-Swappable Batteries	Yes
Intelligent Battery Management	Yes


Output:
Maximum Configurable Power (Watts)	1980W
Maximum Configurable Power (VA)	2200VA
Output Voltage Distortion	Less than 5%
Output Frequency (sync to mains)	50/60 Hz
Load Crest Factor	3 : 1
Waveform Type	Sine Wave
Transfer Time	2-4 ms
Surge Protection	Yes
Surge Energy Rating	880 Joules
Output Receptacles	(9) NEMA 5-15R, (2) NEMA 5-20R
Power Conditioning	Full-time multi-pole noise filtering
Voltage Regulation	Automatic Voltage Regulation (AVR)
UPS Topology	Line-Interactive
Backup Expansion	External Battery Pack Supported


Input:
Input Frequency	50/60 Hz +/- 3 Hz Auto-sensing
Input Voltage Range	75 - 154V Adjustable
Number of Power Cords	1
Input Plug Type	NEMA 5-20P
Input Current Capacity	20A
Input Voltage	120V
Input Connection Type	Single Phase
Power Input Configuration	Standard North American Input
Cable Length	8 ft (2.44 m)
Efficiency at Full Load	High Efficiency Line-Interactive Operation


Batteries & Runtime:
Battery Type	Sealed Lead-Acid Battery
UPS Battery Quantity	1 RBC105
External Battery Pack Quantity	2 RBC105
Total Battery Packs Included	1 External Battery Pack
Typical Recharge Time	3 Hours
Expected Battery Life	3 - 5 Years
Replacement Battery	APCRBC105
Extendable Runtime	Yes
Battery Voltage	48V External Battery System
Runtime Expansion	Significantly extended runtime with included battery pack
Battery Management	Intelligent battery charging and diagnostics
Hot-Swappable Batteries	Yes
Battery Monitoring	Integrated battery status monitoring
Battery Runtime Expansion Support	Multiple external battery packs supported
Battery Cabinet Type	Rackmount External Battery Cabinet


Communications & Management:
Interface Ports	USB, SmartSlot
Control Panel	LED status display with load and battery indicators
Audible Alarm	Low battery, overload, and on-battery alarms
SmartSlot Expansion	1 SmartSlot Available
Remote Management Support	Optional via APC management cards
Monitoring Features	Battery and load status monitoring
Alarm Notifications	Audible and visual alarms
User Interface	Front-panel LED diagnostics
Emergency Power Off (EPO)	Optional
Management Expansion	APC SmartSlot accessory compatible


Physical:
UPS Height	5.24 inches (13.3 cm)
UPS Width	19.02 inches (48.3 cm)
UPS Depth	25.98 inches (66 cm)
Battery Pack Height	5.24 inches (13.3 cm)
Battery Pack Width	19.02 inches (48.3 cm)
Battery Pack Depth	25.98 inches (66 cm)
Total Rack Space	6U
UPS Net Weight	131.29 lbs. (59.55 kg)
Battery Pack Net Weight	140.0 lbs. (63.64 kg)
Combined Weight	Approx. 271 lbs. (123 kg)
Mounting Mode	Rack-mounted
Mounting Preference	Lower Rack Position Recommended
Color	Black
USB Compatible	Yes


Environmental:
Operating Temperature	32 - 104 °F (0 - 40 °C)
Operating Relative Humidity	0 - 95%
Operating Elevation	0 - 10000 ft (0 - 3048 meters)
Storage Temperature	5 - 113 °F (-15 - 45 °C)
Storage Relative Humidity	0 - 95%
Storage Elevation	0 - 50000 ft (0 - 15240 meters)
Audible Noise at 1 Meter	53 dBA
Heat Dissipation	375 BTU/hr
Environmental Suitability	Enterprise rack and server room environments
