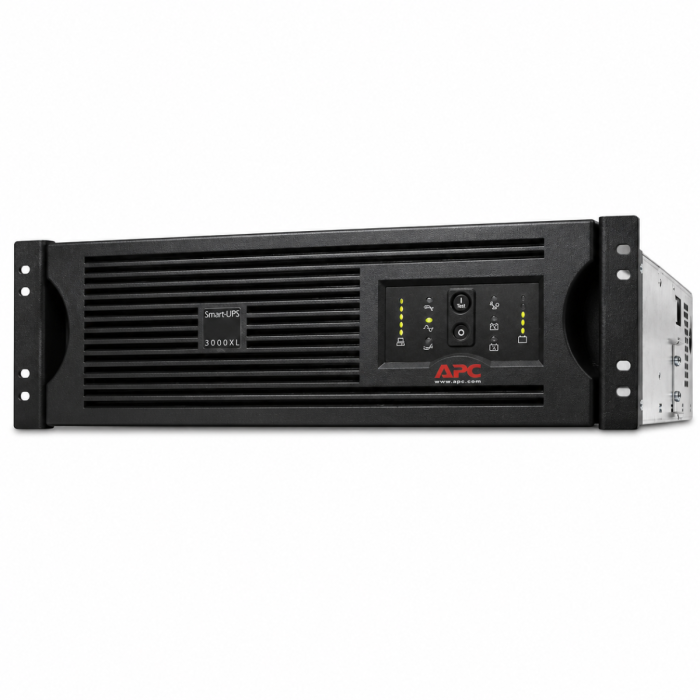

APC Smart-UPS XL 3000VA 2400W 120V 30A SU3000RMXL3U Out:(6)5-15R,(2)5-20R- Refurbished

Manufacturer: APC
Model: APC Smart-UPS XL 3000VA 2400W RM 3U 120V
Condition: New Batteries, Refurbished UPS
Part Number: SU3000RMXL3U
Maximum output: 2400W / 3000VA
Typical backup time at half load: 18.7 minutes (1200 Watts)
Typical backup time at full load: 5.7 minutes (2400 Watts)
Warranty: 1 Year Full Replacement Warranty

Description: The APC SU3000RMXL3U Smart-UPS XL is a line-interactive rackmount UPS designed to provide reliable power protection for servers, network switches, storage devices, VoIP systems, and critical IT equipment. Delivering 3000VA / 2400W of pure sine wave output power, it features Automatic Voltage Regulation (AVR), hot-swappable batteries, SmartSlot expansion for optional network management, and support for external SU48R3XLBP battery packs to extend runtime. Its 3U rackmount design, intelligent battery management, and enterprise-class reliability make it an ideal solution for business, server room, and network infrastructure applications.

APC Smart-UPS XL 3000VA 2400W RM 3U SU3000RMXL3U - User Manual

SU3000RMXL3U - APC Smart-UPS XL 3000VA Specifications:

Main
Main Input Voltage	120V
Main Output Voltage	120V
Rated Power in W	2400W
Rated Power in VA	3000VA
Input Connection Type	NEMA L5-30P
Output Connection Type	(6) NEMA 5-15R
	(2) NEMA 5-20R
Number of Rack Unit	3U
Cable Length	8 ft (2.44 m)
Number of Cables	1
Battery Type	Lead-Acid Battery
Batteries & Runtime
Extended Runtime Support	Yes
Battery Recharge Time	3 Hours
Battery Life	3-5 Years
Replacement Battery	RBC27
Battery Replacement Quantity	1
Battery Power	864 VAh
Battery Charger Power	287W Rated
Hot-Swappable Batteries	Yes
Compatible External Battery Pack	SU48R3XLBP 1 2016 VAh SU48R3XLBP 2 3360 VAh SU48R3XLBP 3 4704 VAh SU48R3XLBP 4 6048 VAh SU48R3XLBP 6 8736 VAh SU48R3XLBP 8 11424 VAh SU48R3XLBP 10 14112 VAh
External Battery Options	Up to 10 × SU48R3XLBP
Typical Backup Time at Half Load	18.7 Minutes (1200 Watts)
Typical Backup Time at Full Load	5.7 Minutes (2400 Watts)
General
UPS Topology	Line Interactive
Waveform Type	Pure Sine Wave
Maximum Configurable Power	2400W / 3000VA
Maximum Output Current	15A
Crest Factor	Up to 5:1
Harmonic Distortion	Less Than 5% at Full Load
Redundant	No
Application	Servers, Storage, Network Switches, Telecom and IT Equipment
Physical
Color	Black
Height	5.24 in (13.3 cm)
Width	19.02 in (48.3 cm)
Depth	25.98 in (66 cm)
Net Weight	124.25 lbs (56.36 kg)
Mounting Location	Front
Mounting Preference	Lower
Mounting Mode	Rack-Mounted
USB Compatible	No
Input
Input Voltage Limits	86-154V Adjustable / 92-147V
Input Frequency	50/60 Hz ±3 Hz Auto-Sensing
Input Phase	Single-Phase
Input Connection	NEMA L5-30P
Output
Output Voltage	120V
Maximum Configurable Power in VA	3000VA
Maximum Configurable Power (Watts)	2400W
Maximum Output Current	15A
Output Frequency	47-53 Hz (50Hz) / 57-63 Hz (60Hz)
Waveform Type	Pure Sine Wave
Output Connections	(6) NEMA 5-15R, (2) NEMA 5-20R
Communications & Management
Control Panel	LED Status Display with Load and Battery Bar Graphs
Status Indicators	On Line, On Battery, Replace Battery, Overload
Communication Port	RS-232
SmartSlot Expansion Slot	1
Network Management Card Support - Optional	AP9606, AP9617, AP9618, AP9619
Emergency Power Off (EPO)	Optional
Alarm	On Battery, Low Battery and Configurable Delay Alarms
Surge Protection & Filtering
Surge Energy Rating	880 Joules
Noise Suppression	Full-Time Multi-Pole Noise Filtering
IEEE Surge Let-Through	0.3%
Response Time	Zero Clamping Response Time
Compliance	Meets UL 1449
Environmental
Acoustic Level	53 dBA
Heat Dissipation	375 BTU/hr
Operating Altitude	0-10,000 ft
Operating Temperature	32°F to 104°F (0°C to 40°C)
Storage Temperature	5°F to 113°F (-15°C to 45°C)
Storage Altitude	0-50,000 ft (15,240 m)
Operating Humidity	0-95% Non-Condensing
Storage Humidity	0-95% Non-Condensing
Conformance
Product Certifications	CSA
Condition	New Batteries, Refurbished UPS
Warranty	1 Year Full Replacement Warranty Included
