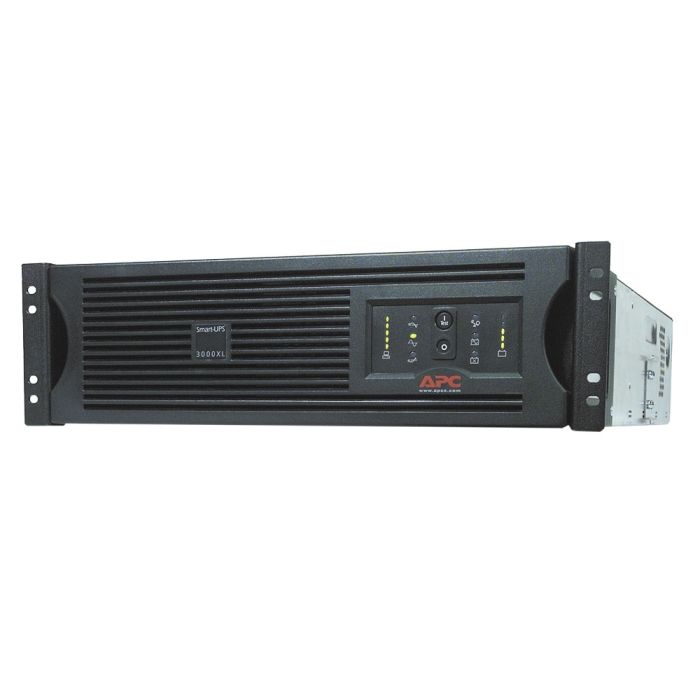

APC Smart-UPS XL 3000VA 2400W RM 3U 120V 30A SU3000RMXL3U - Refurbished
APC Smart-UPS XL 3000VA 2400W RM 3U 120V
Model: SU3000RMXL3U
Input: NEMA L5-30P (120V - 30A)
Output: (6) NEMA 5-15R, (2) NEMA 5-20R
Line-Interactive UPS - Sinewave Output
New batteries, Refurbished UPS
1 Year Warranty Included
$649.99
Back Order
Manufacturer: APC
Model: APC Smart-UPS XL 3000VA 2400W RM 3U 120V
Condition: New batteries, refurbished UPS
Part Number: SU3000RMXL3U
Maximum output: 2400W / 3000VA
Typical backup time at half load: 18.7 minutes (1200 Watts)
Typical backup time at full load: 5.7 minutes (2400 Watts)
Warranty: 1 year full replacement warranty
APC Smart-UPS XL 3000VA 2400W RM 3U SU3000RMXL3U Manual
SU3000RMXL3U - APC Smart-UPS XL 3000VA Specifications:
Main:
|
Main Input Voltage |
120V |
||||
|
Main Output Voltage |
120V |
||||
|
Rated Power in W |
2400W |
||||
|
Rated Power in VA |
3000VA |
||||
|
Input Connection Type |
|
||||
|
Output Connection Type |
|
||||
|
Number of Rack Unit |
3U |
||||
|
Cable Length |
8 ft (2.44 m) |
||||
|
Number of Cables |
1 |
||||
|
Battery Type |
Lead-Acid Battery |
Batteries & Runtime:
|
Extended Runtime |
1 |
|
Number of Battery Filled Slots |
0 |
|
Number of Battery Free Slots |
0 |
|
Battery Recharge Time |
3 h |
|
Number of Battery Replacement Quantity |
1 |
|
Battery Life |
3…5 year(s) |
|
Replacement Battery |
RBC27 |
|
Battery Power in VAH |
864 VAh runtime |
|
Battery Charger Power |
287 W rated |
|
Battery Option |
SU48R3XLBP 1 2016 VAh |
General:
|
Number of Power Module |
2400 |
|
Number of Power Module Filled Slots |
0 |
|
Number of Power Module Free Slots |
0 |
|
Redundant |
No |
Physical:
|
Color |
Black |
|
Height |
5.24 in (13.3 cm) |
|
Width |
19.02 in (48.3 cm) |
|
Depth |
25.98 in (66 cm) |
|
Net Weight |
124.25 lb(US) (56.36 kg) |
|
Mounting Location |
Front |
|
Mounting Preference |
Lower |
|
Mounting Mode |
Rack-mounted |
|
Two Post Mountable |
0 |
|
USB Compatible |
No |
Input:
|
Input Voltage Limits |
86-154 V adjustable |
|
Network Frequency |
50/60 Hz +/- 3 Hz auto-sensing |
Output:
|
Crest Factor |
Up to 5 : 1 |
|
Harmonic Distortion |
Less than 5 % at full load |
|
Maximum Configurable Power in VA |
3000VA |
|
Max Configurable Power (Watts) |
2400W |
|
Maximum Output Current |
15 A |
|
UPS Type |
Line Interactive |
|
Waveform Type |
Sine wave |
|
Output Frequency |
47-53 Hz for 50 Hz nominal sync to mains |
Conformance:
|
Product Certifications |
CSA
|
Environmental:
|
Acoustic Level |
53 dBA
|
|
Heat Dissipation |
375 Btu/h |
|
Operating Altitude |
0-10000 ft |
|
Ambient Air Temperature for Operation |
32-104 °F (0-40 °C) |
|
Ambient Air Temperature for Storage |
5-113 °F (-15-45 °C) |
|
Storage Altitude |
0-50000 ft (0.00…15240.00 m) |
|
Relative Humidity |
0-95% |
|
Storage Relative Humidity |
0-95% |
Communications & Management:
|
Control Panel |
LED status display with load and battery bar-graphs and on line : on battery : replace battery : and overload indicators |
|
Emergency Power Off |
Optional |
|
Free Slots |
1 |
|
Alarm |
Alarm when on battery : distinctive low battery alarm : configurable delays |
Surge Protection & Filtering:
|
Surge Energy Rating |
880 J
|
|
Noise Suppression |
Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449 |
