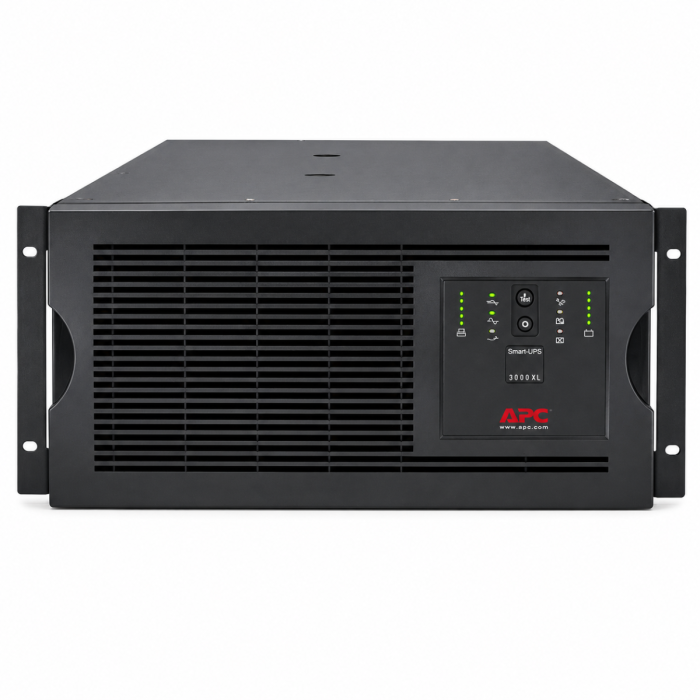

APC Smart-UPS XL 3000VA 2700W Battery Backup RM 5U 120V 30A SUA3000XL - Refurbished

Manufacturer: APC
Model: APC Smart-UPS XL 3000VA 2700W, RM, 5U, 120V
Condition: New Batteries, Refurbished UPS
Part Number: SUA3000XL
Maximum output: 2700W / 3000VA

Output Waveform: Pure Sine Wave
Typical backup time at half load: 17.0 minutes (1350 Watts)
Typical backup time at full load: 5.0 minutes (2700 Watts)
Warranty: 1 year full replacement warranty

Description: The APC Smart-UPS XL SUA3000XL is a line-interactive rackmount UPS designed to provide reliable power protection for servers, network switches, storage systems, telecommunications equipment, and other mission-critical applications. Delivering 3000VA / 2700W of pure sine wave output, it features Automatic Voltage Regulation (AVR), hot-swappable batteries, a SmartSlot for optional network management, and support for multiple external SUA48XLBP battery packs for extended runtime. With (9) NEMA 5-15R and (2) NEMA 5-20R output receptacles, high efficiency operation, and enterprise-class reliability, the SUA3000XL is an ideal solution for protecting critical IT infrastructure.

APC Smart-UPS XL 3000VA 2700W SUA3000XL 30A 120V - User Manual

SUA3000XL - APC Smart-UPS XL Specifications:

Key Features
UPS Topology	Line Interactive
Form Factor	Rackmount
Rack Height	5U
Rated Power Capacity	3000VA / 2700W
Waveform Type	Pure Sine Wave
Input Voltage	120V
Output Voltage	120V
Input Connection	NEMA L5-30P
Output Connections	(9) NEMA 5-15R, (2) NEMA 5-20R
Input Cord Length	8 ft (2.44 m)
Efficiency	Up to 96%
Hot-Swappable Batteries	Yes
Extended Runtime Support	Yes
External Battery Pack Compatibility	SUA48XLBP
SmartSlot Expansion	Yes
Cold Start Capability	Yes
Application	Servers, Storage, Network Switches, VoIP and IT Equipment
Output
Nominal Output Voltage	120V
Maximum Configurable Power	3000VA / 2700W
Maximum Output Current	22.5A
Output Receptacles	(9) NEMA 5-15R
	(2) NEMA 5-20R
Waveform Output	Pure Sine Wave
Transfer Time	2 ms Typical
Output Frequency	47-53 Hz (50Hz) / 57-63 Hz (60Hz)
Harmonic Distortion	Less Than 5% at Full Load
Efficiency at Full Load	96%
Input
Nominal Input Voltage	120V
Input Connection Type	NEMA L5-30P
Input Voltage Range	75-154V Adjustable / 82-144V
Input Frequency	50/60 Hz ±3 Hz Auto-Sensing
Input Phase	Single-Phase
Batteries & Runtime
Battery Type	Sealed Lead-Acid
Replacement Battery	RBC55
Battery Replacement Quantity	1
Battery Life	3-5 Years
Battery Capacity	816 VAh
Battery Charger Power	271W Rated
Battery Recharge Time	3 Hours
Hot-Swappable Batteries	Yes
Typical Backup Time at Half Load	17 Minutes (1350 Watts)
Typical Backup Time at Full Load	5 Minutes (2700 Watts)
Compatible External Battery Packs	SUA48XLBP, UXABP48
Maximum External Battery Packs	Up to 10 Supported
Battery Option	SUA48XLBP 1 2448 VAh SUA48XLBP 2 4080 VAh SUA48XLBP 3 5712 VAh UXABP48 1 4176 VAh UXABP48 2 7536 VAh UXABP48 3 10896 VAh SUA48XLBP 8 13872 VAh SUA48XLBP 10 17136 VAh
Communications & Management
Control Panel	LED Status Display with Load and Battery Bar Graphs
Status Indicators	On Line, On Battery, Replace Battery, Overload
Communication Port	RS-232
SmartSlot Expansion Slot	1
Network Management Card Support	AP9606, AP9617, AP9618, AP9619
Emergency Power Off (EPO)	Yes
Alarm	On Battery, Low Battery and Configurable Delay Alarms
Physical
Color	Black
Height	17.5 in (44.4 cm)
Width	8.7 in (22.1 cm)
Depth	19.5 in (49.5 cm)
Net Weight	140.3 lbs (63.64 kg)
Mounting Mode	Rack-Mounted with Kit
Mounting Preference	No Preference
Mounting Location	Front
USB Compatible	No
Surge Protection & Filtering
Surge Energy Rating	480 Joules
Noise Suppression	Full-Time Multi-Pole Noise Filtering
IEEE Surge Let-Through	0.3%
Response Time	Zero Clamping Response Time
Compliance	Meets UL 1449
Environmental
Acoustic Level	53 dBA
Heat Dissipation	305 BTU/hr
Operating Temperature	32°F to 104°F (0°C to 40°C)
Storage Temperature	5°F to 113°F (-15°C to 45°C)
Operating Humidity	0-95% Non-Condensing
Storage Humidity	0-95% Non-Condensing
Operating Altitude	Up to 10,000 ft
Storage Altitude	Up to 50,000 ft (15,240 m)
Conformance
Product Certifications	CSA
Product Family	Smart-UPS XL Extended Run
Condition	New Batteries, Refurbished UPS
Warranty	1 Year Full Replacement Warranty Included
