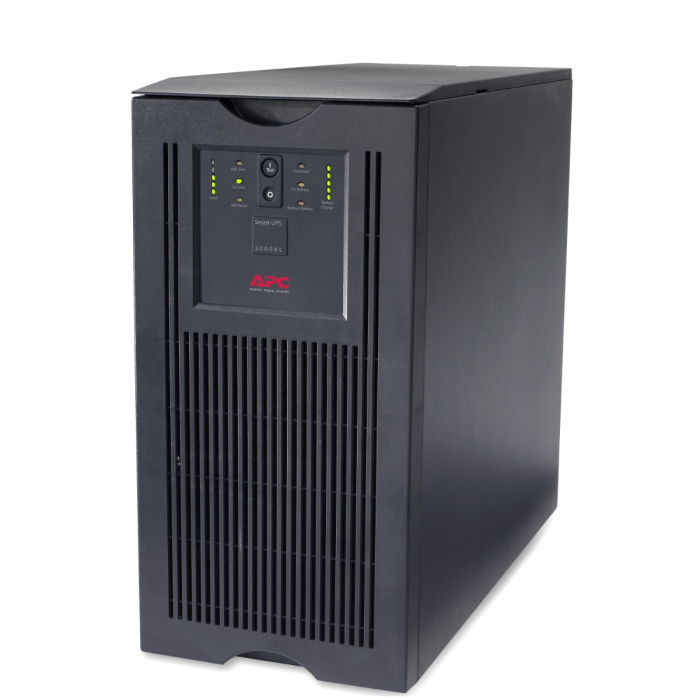

APC Smart-UPS XL 3000VA 2700W Battery Backup Tower 120V 30A SUA3000XL - Refurbished
APC Smart-UPS XL 3000VA 2700W Tower 120V
Model: SUA3000XL
Input: NEMA L5-30P (120V - 30A)
Output: (9) NEMA 5-15R (Battery Backup), (2) NEMA 5-20R (Battery Backup)
Line-Interactive UPS - Sinewave Output
New batteries, Refurbished UPS
1 Year Warranty Included
$799.99
In stock
Manufacturer: APC
Model:Â APC SMART-UPS XL 3000VA 2700W Tower 120V
Condition: New Batteries, Refurbished UPS
Part Number: SUA3000XL
Maximum output: 2700WÂ /Â 3000VA
Typical backup time at half load: 17.0 minutes (1350 Watts)
Typical backup time at full load: 5.0 minutes (2700 Watts)
Warranty: 1 Year full replacement warranty
APC SMART-UPS XL 3000VA 2700W Tower SUA3000XL - User Manual
SUA3000XL - APC SMART-UPS XL 3000VA Specifications:
Key Features:
|
Output Power Capacity |
2.7kW / 3.0kVA |
||||
|
Output Connections |
|
||||
|
Nominal Output Voltage |
120V |
||||
|
Nominal Input Voltage |
120V |
||||
|
Input Connections |
|
||||
|
Cord Length |
2.4 meters |
Output:
|
Max Configurable Power (Watts) |
2.7kW / 3.0kVA |
|
Efficiency at Full Load |
96.0 % |
|
Output Voltage Distortion |
Less than 5 % at full load |
|
Output Frequency (sync to mains) |
47 - 53 Hz For 50 Hz nominal Sync to mains, 57 - 63 Hz For 60 Hz nominal Sync to mains |
|
Topology |
Line Interactive |
|
Waveform type |
Sine wave |
|
Transfer Time |
2ms typical |
Input:
|
Input frequency |
50/60 Hz +/- 3 Hz Auto-sensing |
|
Input voltage range for main operations |
75 - 154 Adjustable, 82 - 144V |
|
Number of Power Cords |
1 |
|
Efficiency at Full Load |
96.0 % |
Batteries & Runtime:
|
Battery type |
Lead-acid battery |
|
Typical Recharge Time |
3hour(s) |
|
Replacement Battery |
RBC55 |
|
Expected Battery Life (years) |
3 - 5 |
|
RBC Quantity |
1 |
|
Battery Charge Power (Watts) |
271Watts |
|
Extendable Run Time |
1 |
|
Battery Volt-Amp-Hour Capacity |
816 |
Communications & Management:
|
Interface Port(s) |
DB-9 RS-232, Smart-Slot |
|
Control panel |
LED status display with load and battery bar-graphs and on line : on battery : replace battery : and overload indicators |
|
Audible Alarm |
Alarm when on battery : distinctive low battery alarm : configurable delays |
|
Emergency Power Off (EPO) |
Yes |
|
Available SmartSlotâ„¢ Interface Quantity |
1 |
Surge Protection and Filtering:
|
Surge Energy Rating |
480 Joules |
|
Filtering |
Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449 |
Physical:
|
Maximum Height |
17.5 inches (444mm, 44.4cm)
|
|
Maximum Width |
8.7 inches (221mm, 22.1cm) |
|
Maximum Depth |
19.5 inches (495mm, 49.5cm) |
|
Rack Height |
5U |
|
Net Weight |
140.0 lbs. (63.64 kg) |
|
Shipping Weight |
182.0 lbs. (82.73 kg) |
|
Shipping Height |
22.0 inches (559mm, 55.9cm) |
|
Shipping Width |
15.0 inches (381mm, 38.1cm) |
|
Shipping Depth |
30.0 inches (762mm, 76.2cm) |
|
Color |
Black |
Environmental:
|
Operating Temperature |
32 - 104 °F (0 - 40 °C)
|
|
Operating Relative Humidity |
0 - 95% |
|
Operating Elevation |
0 - 10000ft (0 - 3048meters) |
|
Storage Temperature |
-15 - 45°C |
|
Storage Relative Humidity |
0 - 95% |
|
Storage Elevation |
0 - 50000ft 0 - 15240meters |
|
Audible noise at 1 meter from surface of unit |
53.0dBA |
|
Online thermal dissipation |
305.0BTU/hr |
