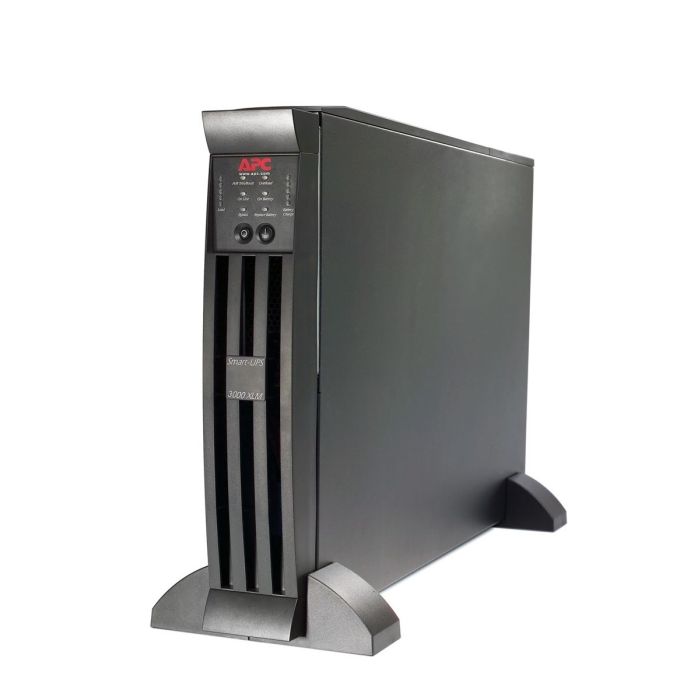

APC Smart-UPS XL 3000VA 2850W Modular Tower 120V SUM3000RMXL2U - Refurbished

Manufacturer: APC
Model: APC Smart-UPS XL 3000VA 2850W Tower 120V
Condition: New Batteries, Refurbished UPS
Part Number: SUM3000RMXL2U
Maximum output: 2850W / 3000VA
Typical backup time at half load: 11.9 minutes (1425 Watts)
Typical backup time at full load: 3.5 minutes (2850 Watts)
Warranty: 1 Year Full Replacement Warranty

Description: The APC Smart-UPS XL Modular SUM3000RMXL2U is a 3000VA / 2850W line-interactive UPS designed to provide reliable power protection for servers, network infrastructure, telecommunications systems, and other mission-critical equipment. Featuring pure sine wave output, Automatic Voltage Regulation (AVR), internal automatic bypass, and scalable runtime through compatible external battery packs, the SUM3000RMXL2U delivers dependable backup power and advanced power conditioning. The modular Smart-UPS XL architecture provides flexible runtime expansion and simplified battery maintenance for growing power requirements. Refurbished with new batteries and backed by a 1 Year Full Replacement Warranty.

APC Smart-UPS XL 3000VA 2850W Tower SUM3000RMXL2U Manual

SUM3000RMXL2U - APC Smart-UPS XL XL 3000VA Tower Specifications:

Key Features
UPS Topology	Line Interactive
Form Factor	Rackmount
Rack Height	2U
Capacity	3000VA / 2850W
Input Voltage	120V
Output Voltage	120V
Waveform Type	Pure Sine Wave
Maximum Output Current	24A
Input Plug	NEMA L5-30P
Output Receptacles	(6) NEMA 5-15R
	(2) NEMA 5-20R
Internal Bypass	Automatic & Manual
Extended Runtime Support	Yes
Network Management Card	Pre-Installed
Environmental Monitoring	Included
Efficiency at Full Load	95%
Input
Nominal Input Voltage	120V
Input Frequency	50/60 Hz ±3% Auto-Sensing
Input Voltage Range	75V – 154V Adjustable
Adjustable Range	82V – 147V
Input Connection Type	NEMA L5-30P
Input Phase	Single-Phase
Input Cord Length	10 ft (3.05 m)
Number of Power Cords	1
Output
Rated Output Capacity	3000VA
Rated Output Power	2850W
Maximum Configurable Power	3000VA
Maximum Configurable Power	2850W
Output Voltage	120V
Maximum Output Current	24A
Output Receptacles	(6) NEMA 5-15R
	(2) NEMA 5-20R
Output Frequency	50/60 Hz Sync to Utility
Waveform Type	Pure Sine Wave
Transfer Time	2–4 ms Typical
Voltage Regulation	Automatic Voltage Regulation (AVR)
Internal Bypass	Automatic & Manual
Harmonic Distortion	Less Than 5%
Power Conditioning	Full-Time Multi-Pole Noise Filtering
Batteries & Runtime
Battery Type	VRLA (Valve Regulated Lead Acid)
Replacement Battery	RBC43
RBC Quantity	1
Typical Recharge Time	3 Hours
Battery Life	3–5 Years
Battery Charge Power	199W
Extendable Runtime	Yes

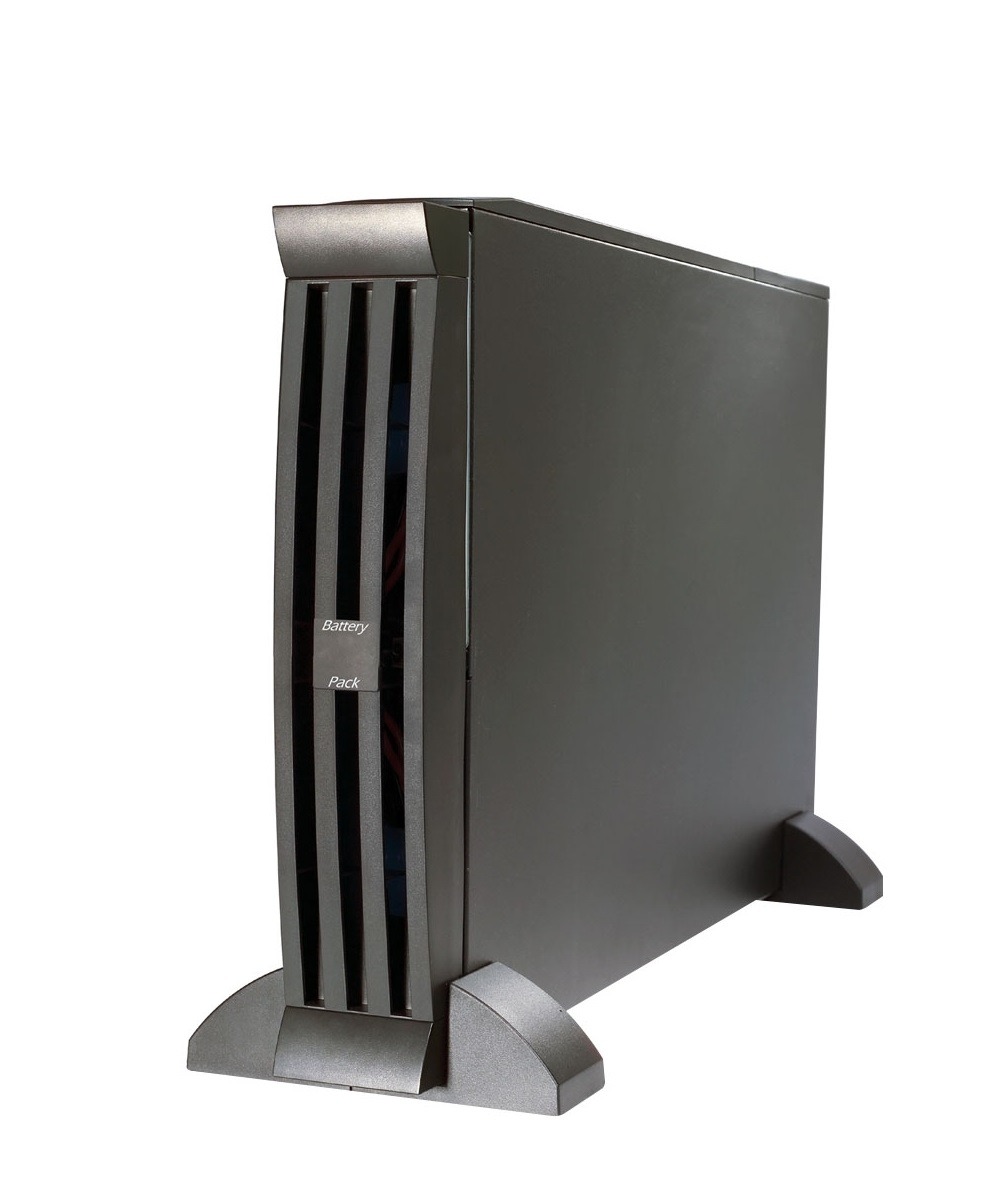

External Battery Pack Support	Yes
Battery Slots Empty	0
Included Battery Modules	0
Communications & Management
Control Panel	LED Status Display
LED Indicators	On Line
	On Battery
	Replace Battery
	Overload
	Bypass
SmartSlot Card	Network Management Card 2 - Optional
Network Interface	Ethernet
Web Management	Supported
SNMP Management	Supported
Remote Monitoring	Supported
Remote Shutdown	Supported
Event Logging	Supported
Alarm Notifications	Supported
SmartSlot Expansion	Supported
Serial Port	RS-232
USB Port	Yes
EPO Support	Yes
Alarm Types	On Battery
	Low Battery
	Configurable Delay Alarms
Included Management Accessories	Web/SNMP Management Card
	Smart UPS Signalling RS-232 Cable
	USB Cable
Surge Protection & Filtering
Surge Energy Rating	540 Joules
Noise Filtering	Full-Time Multi-Pole Noise Filtering
IEEE Surge Let-Through	0.3%
Response Time	Zero Clamping Response Time
Physical
Color	Black
Height	3.4 in (8.6 cm)
Width	17.0 in (43.2 cm)
Depth	26.7 in (67.8 cm)
Weight	103.22 lbs (46.82 kg)
Rack Height	2U
Mounting Mode	Rack-Mounted
Mounting Preference	Lower
Mounting Location	Front
USB Compatible	No
Environmental
Operating Temperature	32°F to 104°F (0°C to 40°C)
Storage Temperature	23°F to 131°F (-5°C to 55°C)
Operating Humidity	0–95%
Storage Humidity	0–95%
Operating Altitude	Up to 10,000 ft
Storage Altitude	Up to 30,000 ft
Acoustic Noise	55 dBA
Heat Dissipation	300 BTU/hr
Compliance
Certifications	BSMI
	CSA
	NOM
	VCCI
Condition	Refurbished with New Batteries
Warranty	1 Year Full Replacement Warranty Included
