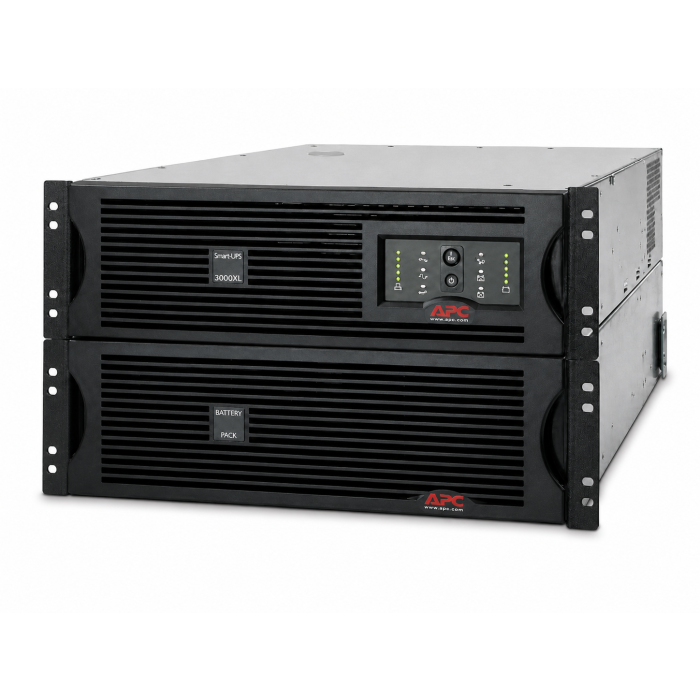

Main image Click to view image in fullscreen APC UPS 3000VA 2700W SUA3000RMXL3U + SUA48RMXLBP3U Battery Pack 120V 30A RM 6U - Refurbished

APC UPS 3000VA 2700W SUA3000RMXL3U + SUA48RMXLBP3U Battery Pack 120V 30A RM 6U - Refurbished

APC Smart-UPS XL 3000VA 2700W RM 3U + External Battery Pack
Model: SUA3000RMXL3U + SUA48RMXLBP3U
Input: NEMA L5-30P (120V - 30A)
Output: (9) NEMA 5-15R, (2) NEMA 5-20R
Line-Interactive UPS - Pure Sinewave Output
Extended Runtime Configuration
New batteries, Refurbished UPS & Battery Pack
1 Year Warranty Included

Extended Warranty *

1 Year Included

2 Year + $20.00

3 Year + $35.00

In stock

Quantity

Manufacturer: APC
Model: APC Smart-UPS XL 3000VA 2700W RM 3U with External Battery Pack
Condition: New Batteries, Refurbished UPS & Battery Pack
Part Number: SUA3000RMXL3U + SUA48RMXLBP3U
Maximum output: 2700W / 3000VA

Typical Backup Time with 1 EBM (at Half Load):

o SUA3000RMXL3U: Approximately 16 minutes (1350 Watts)

o SUA48RMXLBP3U: Approximately 45-60+ minutes total runtime (1350 Watts with 1 EBM)

Typical Backup Time with 1 External Battery Pack (at Full Load):

o SUA2200RMXL3U: Approximately 6 minutes (2700 Watts)

o SUA48RMXLBP3U: Approximately 18-30 minutes total runtime (2700 Watts with 1 EBM)

Warranty: 1 year full replacement warranty

Description: The APC Smart-UPS XL 3000VA (SUA3000RMXL3U) with SUA48RMXLBP3U External Battery Pack is a refurbished 6U rackmount line-interactive UPS system providing 3000VA / 2700W of reliable backup power protection for servers, networking, and critical IT equipment. Features include pure sine wave output, AVR, hot-swappable batteries, extended runtime support, LED status indicators, USB connectivity, and SmartSlot expansion capability. Includes new batteries in both the UPS and battery pack, NEMA L5-30P input, (9) NEMA 5-15R and (2) NEMA 5-20R outputs, and a 1-year full replacement warranty.

APC Smart-UPS XL 3000VA 2700W RM 3U SUA3000RMXL3U - User Manual

APC Smart-UPS XL 48V RM 3U Battery Pack SUA48RMXLBP3U User's Manual

SUA3000RMXL3U & SUA48RMXLBP3U - APC Smart-UPS XL 3000VA Extended Runtime Specifications:

Key Features:
Main Input Voltage	120V
Main Output Voltage	120V
Rated Power in W	2700W
Rated Power in VA	3000VA
Output Power Capacity	2700W / 3000VA
Rack Height	6U Total
UPS Rack Height	3U
External Battery Pack Height	3U
Output Connections	(9) NEMA 5-15R
	(2) NEMA 5-20R
Nominal Output Voltage	120V
Nominal Input Voltage	120V
Input Connections	NEMA L5-30P
Topology	Line Interactive
Waveform Type	Pure Sine Wave
Extended Runtime Support	Yes
External Battery Pack Included	Yes
Battery Expansion Capability	Yes
Form Factor	Rackmount
AVR Support	Automatic Voltage Regulation
Hot-Swappable Batteries	Yes
Intelligent Battery Management	Yes
USB Connectivity	Yes
SmartSlot Expansion	Yes


Output:
Maximum Configurable Power (Watts)	2700W
Maximum Configurable Power (VA)	3000VA
Maximum Output Current	15A
Output Voltage Distortion	Less than 5%
Output Frequency (sync to mains)	50/60 Hz
Load Crest Factor	3 : 1
Waveform Type	Sine Wave
Transfer Time	2-4 ms
Surge Protection	Yes
Surge Energy Rating	880 Joules
Output Receptacles	(9) NEMA 5-15R, (2) NEMA 5-20R
Power Conditioning	Full-time multi-pole noise filtering
Voltage Regulation	Automatic Voltage Regulation (AVR)
UPS Topology	Line-Interactive
Efficiency at Full Load	95%
Backup Expansion	External Battery Pack Supported


Input:
Input Frequency	50/60 Hz +/- 3 Hz Auto-sensing
Input Voltage Range	75 - 154V Adjustable
Number of Power Cords	1
Input Plug Type	NEMA L5-30P
Input Current Capacity	30A
Input Voltage	120V
Input Connection Type	Single Phase
Power Input Configuration	Standard North American Input
Cable Length	8 ft (2.44 m)
Efficiency at Full Load	High Efficiency Line-Interactive Operation


Batteries & Runtime:
Battery Type	Sealed Lead-Acid Battery
UPS Battery Quantity	1 RBC105
External Battery Pack Quantity	2 RBC105
Total Battery Packs Included	1 External Battery Pack
Typical Recharge Time	3 Hours
Expected Battery Life	3 - 5 Years
Replacement Battery	APCRBC105
Extendable Runtime	Yes
Battery Voltage	48V External Battery System
Battery Power in VAh	864VAh Runtime
Runtime Expansion	Significantly extended runtime with included battery pack
Battery Management	Intelligent battery charging and diagnostics
Hot-Swappable Batteries	Yes
Battery Monitoring	Integrated battery status monitoring
Battery Runtime Expansion Support	Multiple external battery packs supported
Battery Cabinet Type	Rackmount External Battery Cabinet


Communications & Management:
Interface Ports	USB, SmartSlot
Control Panel	LED status display with load and battery indicators
Audible Alarm	Low battery, overload, and on-battery alarms
SmartSlot Expansion	1 SmartSlot Available
Remote Management Support	Optional via APC management cards
Monitoring Features	Battery and load status monitoring
Alarm Notifications	Audible and visual alarms
User Interface	Front-panel LED diagnostics
Emergency Power Off (EPO)	Optional
Management Expansion	APC SmartSlot accessory compatible
LED Indicators	On Line, On Battery, Replace Battery, Overload
Optional Network Management	Supported with APC management accessories


Physical:
UPS Height	5.24 inches (13.3 cm)
UPS Width	19.02 inches (48.3 cm)
UPS Depth	25.98 inches (66 cm)
Battery Pack Height	5.24 inches (13.3 cm)
Battery Pack Width	19.02 inches (48.3 cm)
Battery Pack Depth	25.98 inches (66 cm)
Total Rack Space	6U
UPS Net Weight	131.29 lbs. (59.55 kg)
Battery Pack Net Weight	140.0 lbs. (63.64 kg)
Combined Weight	Approx. 271 lbs. (123 kg)
Mounting Mode	Rack-mounted
Mounting Preference	Lower Rack Position Recommended
Color	Black
USB Compatible	Yes


Environmental:
Operating Temperature	32 - 104 °F (0 - 40 °C)
Operating Relative Humidity	0 - 95%
Operating Elevation	0 - 10000 ft (0 - 3048 meters)
Storage Temperature	5 - 113 °F (-15 - 45 °C)
Storage Relative Humidity	0 - 95%
Storage Elevation	0 - 50000 ft (0 - 15240 meters)
Audible Noise at 1 Meter	53 dBA
Heat Dissipation	375 BTU/hr
Environmental Suitability	Enterprise rack and server room environments
