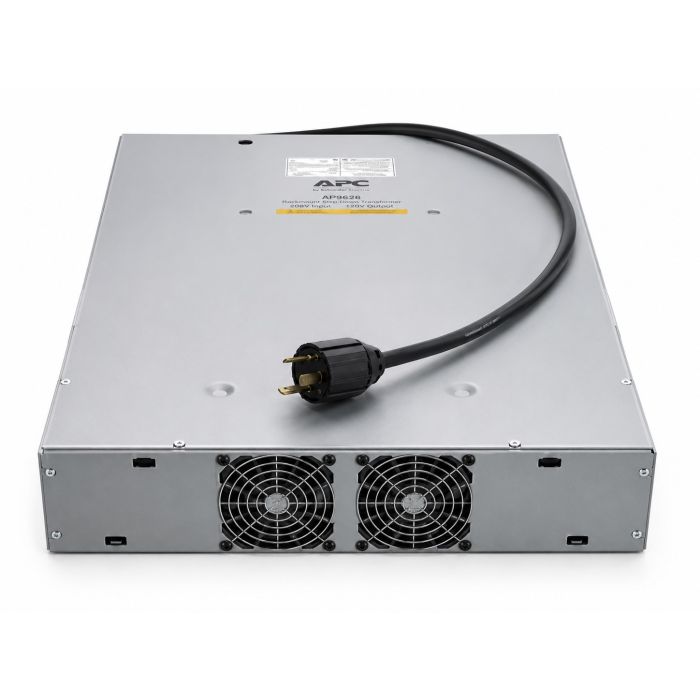

APC Smart-UPS 5000VA Step-Down Transformer 208V to 120V 30A, AP9626 - Refurbished

Manufacturer: APC
Model: APC Smart-UPS RM 208V to 120V, Step-Down Transformer
Condition: Refurbished - Non Faceplate
Part Number: AP9626
Warranty: 1 Year Full Replacement Warranty

Description: The APC AP9626 Smart-UPS Rackmount Step-Down Transformer is designed to convert 208V input power to 120V output for use with APC Smart-UPS systems and other compatible equipment. Featuring a 5000VA load capacity, NEMA L6-30P input connection, and (12) NEMA 5-20R output receptacles, the AP9626 provides reliable voltage conversion for rackmount deployments requiring 120V power from a 208V source. Its 2U rackmount design integrates easily into standard equipment racks, making it ideal for data centers, network closets, and enterprise environments. Refurbished and backed by a 1 Year Full Replacement Warranty.

APC Smart-UPS RM Step-Down Transformer AP9626 - User Manual

AP9626 - APC Smart-UPS RM Step-Down Transformer Specifications:

Key Features
Product Type	Rackmount Step-Down Transformer
Form Factor	Rackmount
Rack Height	2U
Load Capacity	5000VA
Input Voltage	208V
Output Voltage	120V
Input Connection	NEMA L6-30P
Output Connections	(12) NEMA 5-20R
Input Current Rating	30A
Maximum Continuous Output Current	24A
Efficiency	90%
Application	Converts 208V input to 120V output for APC Smart-UPS systems and other 120V equipment
Included Accessories	Rack Mounting Brackets, User Manual
Output
Output Voltage	120V
Output Receptacles	(12) NEMA 5-20R
Maximum Output Current	24A
Total Output Capacity	5000VA
Efficiency	90%
Transformer Type	Step-Down Isolation Transformer
Output Distribution	Twelve NEMA 5-20R Receptacles
Input
Input Voltage	208V
Input Connection Type	NEMA L6-30P
Input Current Limit	30A
Maximum Line Current	24A
Number of Power Cords	1
Input Phase	Single-Phase
Input Frequency	50/60 Hz
Physical
Height	3.50 in (8.9 cm)
Width	17.52 in (44.5 cm)
Depth	24.02 in (61 cm)
Net Weight	95.20 lbs (43.18 kg)
Color	Black
Rack Height	2U
Mounting Mode	Rack-Mounted
Mounting Preference	No Preference
Mounting Location	Front
Environmental
Operating Temperature	32°F to 104°F (0°C to 40°C)
Storage Temperature	5°F to 113°F (-15°C to 45°C)
Operating Humidity	0-95% Non-Condensing
Storage Humidity	0-95% Non-Condensing
Operating Altitude	Up to 10,000 ft (3,048 m)
Storage Altitude	Up to 50,000 ft (15,240 m)
Conformance
Product Certifications	CSA
Standards	UL 1778, OSHPD
Condition	Refurbished - Non Faceplate
Warranty	1 Year Full Replacement Warranty Included
