35% Off

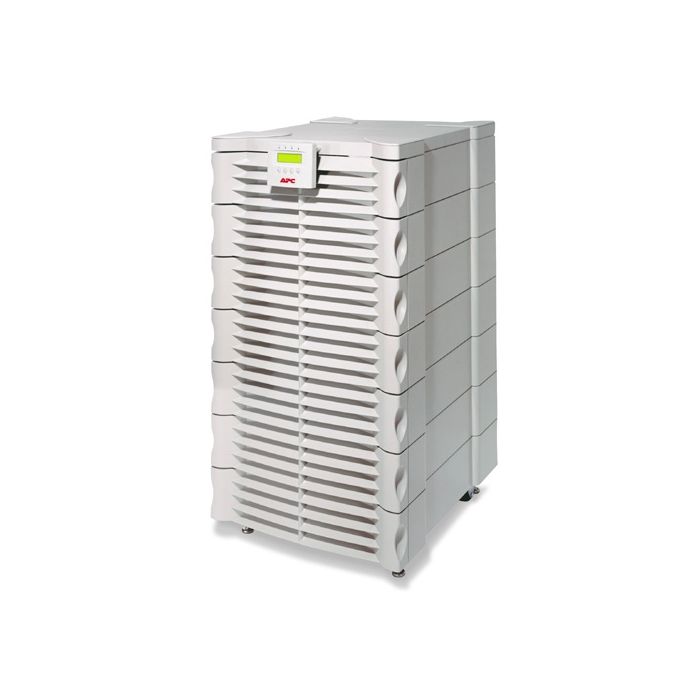

APC Symmetra 12kVA Scalable to 16kVA N+1 SY12KEX-PD

APC Symmetra 12kVA Scalable to 16kVA N+1
Model: SY12KEX-PD

8400 Watts / 12 kVA
Output: (1) Hard Wire 3-wire (2PH + G), (1) Hard Wire 4-wire (2PH + N +G),
(4) NEMA 5-15R,
(3) NEMA L14-30R, (3) NEMA L6-30R
Refurbished with New Batteries
1 Year Replacement Warranty

Availability: In stock

Msrp Price: $9,999.99

Now only: $6,499.99

Shipping Info
  • This item is in stock and ships within 1 business day
  • We will gladly accept returns for any reason within 30 days of receipt of delivery
  • Continental USA & Canada

Description

Details

Manufacturer: APC
Model: APC Symmetra 12kVA Scalable to 16kVA N+1
Condition: Refurbished with New Batteries
Part Number: SY12KEX-PD
Warranty: 1 Year Full Replacement Warranty, additional warranty available

The SY12KEX-PD comes refurbished with new batteries. The SY12KEX-PD comes with a one year replacement warranty. Additional warranty of up to 3 years is available for your convenience.

SY12KEX-PD Specifications

Output:

Output Power Capacity

8400 Watts / 12 kVA

Max Configurable Power

11.2 kW / 16 kVA

Nominal Output Voltage

120V, 208V

Output Voltage Note

Configurable for 120/208

or 120/240 output voltage

Efficiency at Full Load

87.0%

Output Voltage Distortion

Less than 5% at full load

Output Frequency

(sync to mains)

57 - 63 Hz for 60 Hz nominal

Other Output Voltages

240

Crest Factor

up to 5 : 1

Topology

Double Conversion Online

Waveform Type

sinewave

Bypass

Internal Bypass

(Automatic and Manual)

Output Connections

(1) Hard Wire 3-wire (2PH + G)

(1) Hard Wire 4-wire (2PH + N +G)



(4) NEMA 5-15R

(3) NEMA L14-30R

(3) NEMA L6-30R




Input:

Nominal Input Voltage

208V

Input Frequency

45 - 65 Hz (auto sensing)

Input Connections

Hard Wire 3-wire (2PH+N+G)



Input voltage range for

main operations

155 - 276V

Other Input Voltages

240


Batteries and Runtime:

Battery Type

Maintenance-free sealed

Lead-Acid battery with s

uspended electrolyte :

leakproof

Included Battery Modules

3

Typical recharge time

2.50 hour(s)

Replacement Battery

SYBATT

Available Battery Module Slots

1


Communications and Management:

Interface Port(s)

DB-9 RS-232, Smart-Slot

Available SmartSlot

Interface Quantity

3

Pre-Installed SmartSlot

Cards

AP9617

Control panel

Multi-function LCD status

and control console

Audible Alarm

Alarm when on battery :

distinctive low battery alarm :

configurable delays

Emergency Power

Off (EPO)

Yes


Physical:

Maximum Height

1321.00 mm

Maximum Width

610.00 mm

Maximum Depth

686.00 mm

Net Weight

392.73 KG

Shipping Weight

439.55 KG

Shipping Height

1575.00 mm

Shipping Width

838.00 mm

Shipping Depth

737.00 mm






Environmental:

Operating Environment

0 - 40 °C

Operating Relative Humidity

0 - 95%

Operating Elevation

0-3000 meters

Storage Temperature

-15 - 45 °C

Storage Relative Humidity

0 - 95%

Storage Elevation

00-15000 meters

Audible noise at 1 meter

from surface of unit

62.00 dBA

Online Thermal Dissipation

3727.00 BTU/hr
