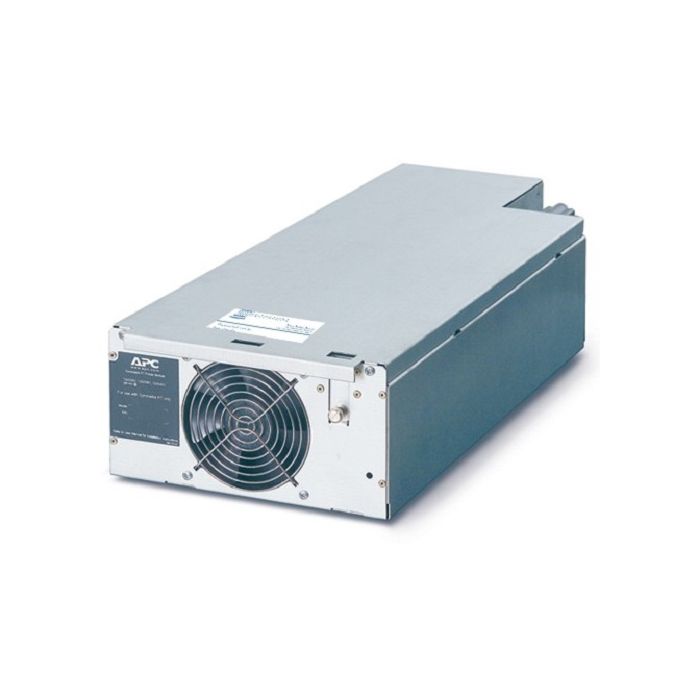

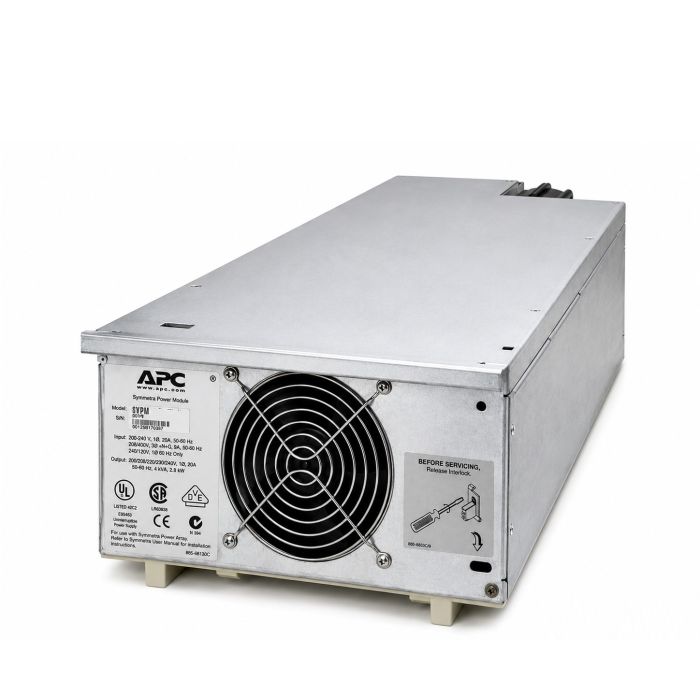

APC Symmetra 4kVA 2800W Power Module SYPM for 8-16kVA UPS Systems - Refurbished
APC Symmetra 4kVA / 2800W Power Module for APC Symmetra 8kVA–16kVA UPS Systems
Model: SYPM
Capacity: 4000VA / 2800W
Input Voltage: 200V / 208V / 400V 3-Phase
Output Voltage: 200V / 208V / 230V
Double-Conversion Online Power Module
Hot-Swappable Power Module
Scalable Power Capacity with N+1 Redundancy
Refurbished Power Module
1 Year Full Replacement Warranty Included
$1,099.99
In stock
Model: APC Symmetra 4kVA Power Module for Select Symmetra 8kVA–16kVA UPS Systems
Condition: Refurbished, Fully Tested and Certified for Reliable Operation
Part Number: SYPM
Product Type: Hot-Swappable UPS Power Module
Power Capacity: 4000VA / 2800W
Compatibility: APC Symmetra 8kVA, 12kVA, and 16kVA UPS Systems
Features: Hot-swappable design for seamless power module replacement without interrupting protected equipment. Provides scalable power capacity and N+1 redundancy for compatible APC Symmetra UPS systems. Designed for high-density, double-conversion online UPS applications.
Warranty: 1 Year Full Replacement Warranty
Includes: (1) Refurbished APC SYPM 4kVA Power Module
Â
Â
 APC Symmetra 4kVA power module - User ManualÂ
Â
Â
APC Symmetra 4kVA SYPM Power Module - Specifications :
Â
| General | Â |
| Part Number | SYPM |
| Manufacturer | APC |
| Model | APC Symmetra 4kVA Power Module |
| Product Type | Hot-Swappable Power Module |
| Compatible UPS Systems | APC Symmetra 8kVA, 12kVA and 16kVA UPS Systems |
| Topology | Double Conversion Online |
| Rated Power | 4000VA / 2800W |
| Main Input Voltage | 200V, 208V, 400V 3-Phase |
| Main Output Voltage | 200V, 208V, 230V |
| Number of Rack Units | 0U |
| Number of Cables | 1 |
| Range of Product | Symmetra Power Module |
| Hot-Swappable | Yes |
| Application | Provides scalable power capacity and N+1 redundancy for compatible APC Symmetra UPS systems. |
| Â | Â |
| Batteries & Runtime | Â |
| Included Battery Modules | 0 |
| Battery Slots Filled | 0 |
| Battery Slots Empty | 0 |
| Runtime | Determined by the UPS battery configuration |
| Â | Â |
| Input | Â |
| Input Voltage | 200V, 208V, 400V 3-Phase |
| Input Frequency | 50/60 Hz ±5 Hz Auto-Sensing |
| Number of Input Cables | 1 |
| Â | Â |
| Output | Â |
| Output Voltage | 200V, 208V, 230V |
| Maximum Configurable Power | 2800W |
| Rated Power | 4000VA |
| Â | Â |
| Installation | Â |
| Installation Type | Hot-Swappable |
| Mounting Location | Front |
| Mounting Preference | No Preference |
| Mounting Mode | Not Rack-Mountable |
| User Installation | Yes (Compatible Symmetra UPS Only) |
| Â | Â |
| Physical | Â |
| Form Factor | Power Module |
| Height | 5.90 in (149.9 mm) |
| Width | 9.84 in (249.9 mm) |
| Depth | 23.23 in (590 mm) |
| Net Weight | 33.07 lb (15 kg) |
| USB Compatible | No |
| Color | Black / Gray |
| Â | Â |
| Environmental | Â |
| Operating Frequency | 50/60 Hz ±5 Hz Auto-Sensing |
| Cooling | Air Cooled by Symmetra UPS Chassis |
| Operating Environment | Indoor Use |
| Â | Â |
| Warranty | Â |
| Condition | Refurbished |
| Warranty | 1 Year Full Replacement Warranty |
| Includes | (1) Refurbished APC SYPM 4kVA Power Module |
