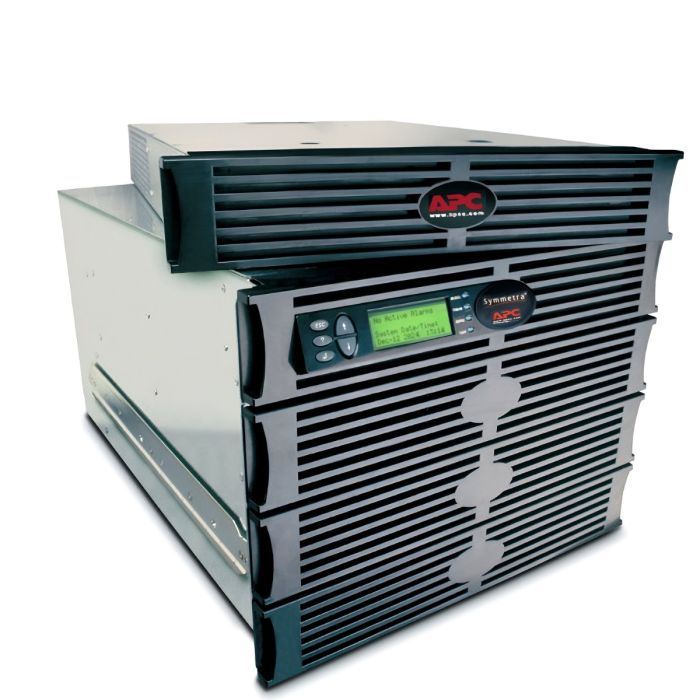

APC Symmetra SYH6K6RMT-P1 6000VA 240V/208 to 120V Step Down Transformer AP9626
APC Symmetra RM 6kVA Scalable to 6kVAÂ (N+1 Optional) 240V/208 to 120V Step-Down Transformer
Model:Â SYH6K6RMT-P1
Maximum: 4200W / 6000VA
Input:Â Hard Wire 3-wire (2PH + G), NEMA L6-30P (30A Twist-Lock)
Output: (2) NEMA L6-20R, (1) NEMA L6-30R, (12) NEMA 5-20R
Refurbished APC Symmetra - Step Down Transformer, with New Batteries
1 Year Replacement Warranty Included
$5,049.99
Back Order
Manufacturer:Â APC
Model: APC Symmetra RM 6000VA Scalable to 6kVA (N+1 Optional ) w/208 to 120V Step-Down Transformer AP9626
Condition: Refurbished with New Batteries
Part Number:Â SYH6K6RMT-P1
Maximum output:Â 4.2 KWatts / 6.0 kVA
Typical backup time at half load:Â 29 minutes (2.1 KWatts)
Typical backup time at full load: 12.6 minutes (4.2 KWatts)
Output Waveform: Sine wave
Includes:Â UPS Frame, (3)Power Modules, (3)Battery Modules, (1)AP9631, (1)AP9626 Step-Down Transformer
Warranty:Â 1 Year Full Replacement Warranty
The SYH6K6RMT is fully refurbished and comes with new batteries.Â
The SYH6K6RMT comes with a one year replacement warranty.
Additional warranty of up to 3 years is available for your convenience.
Â
Â
Â
Â
APC Symmetra SYH6K6RMT-P1 Specifications:
General:
|
Product Web sub-family |
2kVA power increments |
|
Number of Power Module |
3 |
|
Number Preinstalled Power Module |
3 |
|
Number of Power Module Free Slots |
1 |
|
Number of Power Module Filled Slots |
3 |
|
Redundant |
Yes |
Output:
|
Output Power Capacity |
4.2 KWatts / 6.0 kVA |
|
Max Configurable Power |
4.2 KWatts / 6.0 kVA |
|
Nominal Output Voltage |
120V , 208V |
|
Output Voltage Note |
Configurable for 208 or 240 nominal output voltage |
|
 Efficiency at Full Load |
85.0 % |
|
Output Voltage Distortion |
Less than 5% at full load |
|
Output Frequency (sync to mains) |
57 - 63 Hz for 60 Hz nominal |
|
Output Frequency (not synced) |
60Hz +/- 0.1% for 60Hz nominal  |
|
Load Crest Factor |
up to 5 : 1 |
|
Waveform Type |
Sine wave |
|
Output Connections |
(2) NEMA L6-20R, (1) NEMA L6-30R (12) NEMA 5-20RÂ Â |
|
Bypass |
Internal Bypass (Automatic and Manual) |
Input:
|
Nominal Input Voltage |
208V |
|
Input Frequency |
60 Hz +/- 3 Hz |
|
Input Connections |
Hard Wire 3-wire (2PH + G), NEMA L6-30P (30A Twist-Lock) |
|
Cord Length |
10 feet - 3.05 meters |
|
Input voltage range for main operations |
155 - 276V |
|
Efficiency at Full Load |
85.0 % |
|
Input Power Factor at Full Load |
0.98 |
Batteries & Runtime:
|
Battery Type |
Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof |
|
Included Battery Modules |
3 |
|
Typical recharge time |
3 hour(s) |
|
Replacement battery |
SYBT2 |
|
Extendable Run Time |
1 |
|
Extended Run Options |
APC-Symmetra-RM-6KVA-Scalable-to-60kVA-N-1-280-240V-w-208-to-120V-Step-Down-Transformer |
|
Typical Backup Time at Half Load |
29 minutes (2.1 KWatts) |
|
Typical Backup Time at Full Load |
12.6 minutes (4.2 KWatts) |
Communications & Management:
|
Interface Port(s) |
DB-9 RS-232 , RJ-45 10/100 Base-T |
|
Pre-Installed SmartSlotâ„¢ Cards |
AP9631 |
|
Control panel |
Multi-function LCD status and control console |
|
Audible Alarm |
Alarm when on battery : distinctive low battery alarm : configurable delays |
|
Emergency Power Off (EPO) |
Yes |
|
Available SmartSlotâ„¢ Interface Quantity |
1 |
Physical:
|
Maximum Height |
17.5" (44.5cm) |
|
Maximum Width |
19.0" (48.3cm) |
|
Maximum depth |
28.75" (73.0cm) |
|
Net Weight |
389.0lbs (176.82kg) |
