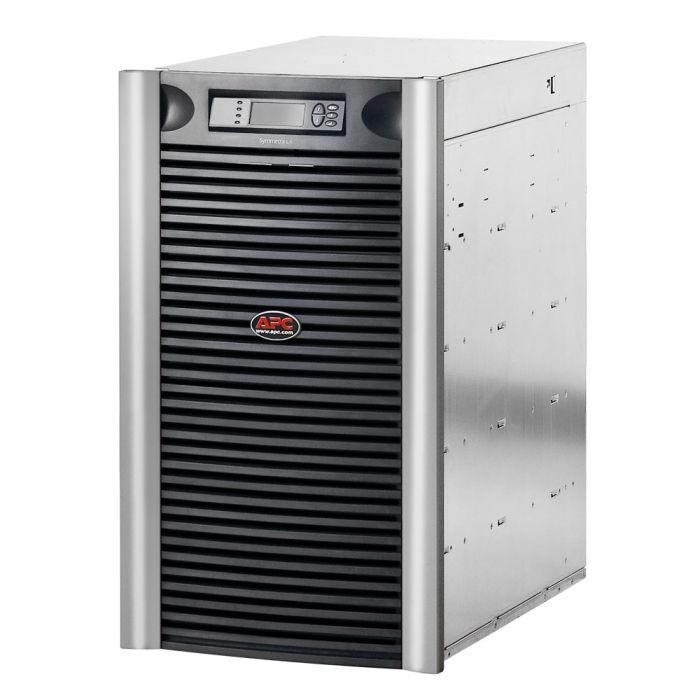

APC Symmetra LX 16kVA 12.8kW RM 19U 208/240V SYA16K16RMP - Refurbished
APC Symmetra LX 16kVA 12.8kW RM 19U
Model: SYA16K16RMP
Input: Hard Wire 4-wire (2PH+N+G)
Output: (8) NEMA L5-20R (Battery Backup), (4) NEMA L14-30R (Battery Backup)
Double Conversion Online UPS - Sinewave Output
New batteries, Refurbished UPS
1 Year Warranty Included
$6,599.99
In stock
Manufacturer: APC
Model: APC Symmetra LX 16kVA 208/240V
Condition: New batteries, refurbished UPS
Part Number: SYA16K16RMP
Maximum output: 12.8kW / 16kVA
Typical backup time at half load:17.1 minutes (6400 Watts)
Typical backup time at full load: 6 minutes (12800 Watts)
Warranty: 1 year full replacement warranty
APC Symmetra LX 16kVA 12.8kW N+1 RM 19U SYA16K16RMP Manual
SYA16K16RMP - APC Symmetra LX 16kVA Specifications:
Main:
|
Main Input Voltage |
208V |
||||
|
Product or Component Type |
Uninterruptible power supply (UPS) |
||||
|
Other Input Voltage |
240V |
||||
|
Main Output Voltage |
120V |
||||
|
Other Output Voltage |
240V |
||||
|
Kw Rating |
12800W |
||||
|
Rated Power in VA |
16000VA |
||||
|
Output Connection Type |
|
||||
|
Output Connector Type |
Hard Wire 4-wire (2PH+N+G) 1 |
||||
|
Number of Rack Unit |
19U |
||||
|
Battery Type |
Lead-Acid battery |
Batteries & Runtime:
|
Included Battery Modules |
4 |
|
Battery Slots Empty |
0 |
|
Typical Recharge Time |
3 h |
|
Additional Information |
Configurable for 120/208 or 120/240 output voltage |
|
Battery Charge Power (Watts) |
1148 W rated |
|
Battery Life |
3…5 year(s) |
|
Replacement Battery |
SYA8K16PX798 |
|
Extendable Run Time |
1 |
General:
|
Product Web Sub-family |
4kVA power increments |
|
Number of Power Module Free Slots |
1 |
|
Number of Power Module Filled Slots |
4 |
|
Redundant |
Yes |
Physical:
|
Color |
Black |
|
Height |
32.91 in (83.6 cm) |
|
Width |
18.58 in (47.2 cm) |
|
Depth |
27.09 in (68.8 cm) |
|
Net Weight |
632.33 lb(US) (286.82 kg) |
|
Mounting Location |
Front |
|
Mounting Preference |
Lower |
|
Mounting Mode |
Rack-mounted |
|
Two Post Mountable |
0 |
|
USB Compatible |
No |
Input:
|
Input Frequency |
45...65 Hz auto-sensing
|
|
Number of Input Connectors |
1 Hard Wire 4-wire (2PH+N+G) |
|
Efficiency at Full Load |
96...138 V line to neutral |
|
Input Total Harmonic Distortion |
Less than 7% for full load |
|
Input Power Factor at Full Load |
0.98 |
Output:
|
Max Configurable Power (Watts) |
12800W
|
|
Harmonic Distortion |
Less than 5 % at full load |
|
Output Frequency (sync to mains) |
47...63 Hz sync to mains |
|
Crest Factor |
Up to 5 : 1 |
|
Topology |
Double Conversion Online |
|
Waveform Type |
Sine wave |
|
Sine Wave |
Internal Bypass (Automatic and Manual) |
|
Maximum Output Current |
75 A |
|
Maximum Configurable Power in VA |
16000VA |
Conformance:
|
Product Certifications |
CSA
|
|
Standards |
FCC Part 15 class A |
Environmental:
|
Ambient Air Temperature for Operation |
32…104 °F (0…40 °C)
|
|
Relative Humidity |
0…95% |
|
Operating Altitude |
0...10000 ft |
|
Ambient Air Temperature for Storage |
5…113 °F (-15…45 °C) |
|
Storage Relative Humidity |
0…95% |
|
Storage Altitude |
0…15000 ft (0.00…4572.00 m) |
|
Acoustic Level |
62 dBA |
|
Heat Dissipation |
4995 Btu/h |
Communications & Management:
|
Free Slots |
1
|
|
Pre-Installed SmartSlot™ Cards |
Network management card 2 with environmental monitoring |
|
Control Panel |
Multi-function LCD status and control console |
|
Alarm |
Audible and visible alarms : prioritized by severity |
|
Emergency Power Off (EPO) |
Yes |
