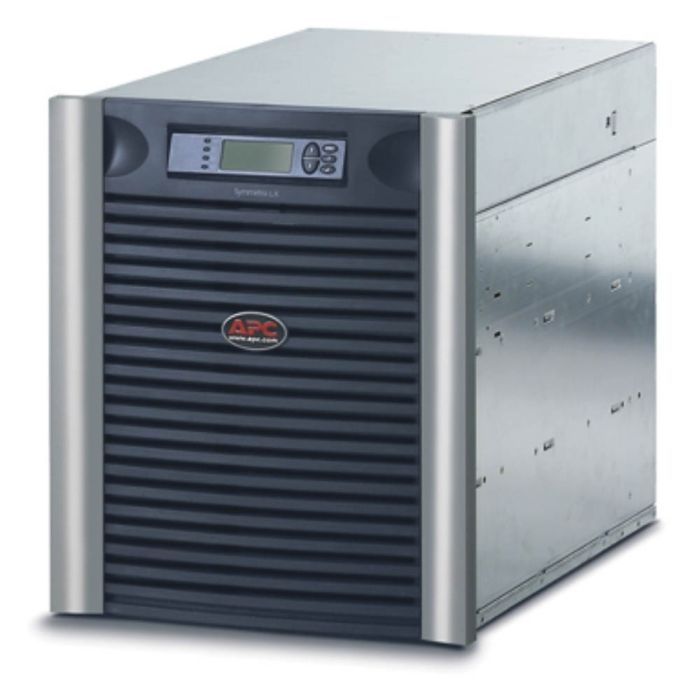

APC Symmetra LX 4kVA 3.2kW RM 13U 208/240V SYA4K8RMP - Refurbished
APC Symmetra LX 4kVA 3.2kW RM 13U
Model: SYA4K8RMP
Input: Hard Wire 4-wire (2PH+N+G)
Output: (4) NEMA L5-20R (Battery Backup), (2) NEMA L14-30R (Battery Backup)
(1) Power Modules, (1) Battery modules
Double Conversion Online UPS - Sinewave Output
New batteries, Refurbished UPS
1 Year Warranty Included
$4,499.99
In stock
Manufacturer: APC
Model: APC Symmetra LX 4kVA 3.2kW RM 13U 208/240V - Scalable to 8KVA
Condition: Refurbished with New Batteries
Part Number: SYA4K8RMP
Runtime at half load: 16min @ 3200W
Runtime at full load: 5.9min @ 3200W
Included: (1) Power Modules, (1) Battery Modules) - APC Symmetra LX 4kVA
Warranty: 1 Year Full Replacement Warranty, additional warranty available
The APC Symmetra LX 4kVA RM 13U SYA4K8RMP is refurbished with new batteries. There is (1) power module and (1) battery module installed. The system can be configured to 8kVA with the addition of another power module.
The SYA4K8RMP comes with a one year replacement warranty. Additional warranty of up to 3 years is available for your convenience.
SYA4K8RMP Specifications
Main:
|
Main Input Voltage |
208V |
||||
|
Other Input Voltage |
240V |
||||
|
Main Output Voltage |
120V |
||||
|
Other Output Voltage |
240V |
||||
|
Kw Rating |
3200W |
||||
|
Rated Power in VA |
4000VA |
||||
|
Output Connection Type |
|
||||
|
Output Connector Type |
Hard Wire 4-wire (2PH+N+G) 1 |
||||
|
Number of Rack Unit |
13U |
||||
|
Battery Type |
Lead-Acid battery |
Batteries & Runtime:
|
Included Battery Modules |
1 |
|
Battery Slots Empty |
1 |
|
Typical Recharge Time |
3 h |
|
Additional Information |
Configurable for 120/208 or 120/240 output voltage |
|
Battery Charge Power (Watts) |
287 W rated |
|
Battery Life |
3…5 year(s) |
|
Replacement Battery |
Replacement battery |
|
Extendable Run Time |
1 |
General:
|
Product Web Sub-family |
4kVA power increments |
|
Number of Power Module Free Slots |
2 |
|
Number of Power Module Filled Slots |
1 |
|
Redundant |
Yes |
Physical:
|
Color |
Black |
|
Height |
22.52 in (57.2 cm) |
|
Width |
18.58 in (47.2 cm) |
|
Depth |
27.09 in (68.8 cm) |
|
Net Weight |
295.62 lb(US) (134.09 kg) |
|
Mounting Location |
Front |
|
Mounting Preference |
Lower |
|
Mounting Mode |
Rack-mounted |
|
Two Post Mountable |
0 |
|
USB Compatible |
No |
Input:
|
Input Frequency |
45...65 Hz auto-sensing |
|
Number of Input Connectors |
1 Hard Wire 4-wire (2PH+N+G) |
|
Efficiency at Full Load |
96...138 V line to neutral |
|
Input Total Harmonic Distortion |
Less than 7% for full load |
|
Input Power Factor at Full Load |
0.98 |
Output:
|
Max Configurable Power (Watts) |
6400W |
|
Harmonic Distortion |
Less than 5 % at full load |
|
Output Frequency (sync to mains) |
47...63 Hz sync to mains |
|
Crest Factor |
Up to 5 : 1 |
|
Topology |
Double Conversion Online |
|
Waveform Type |
Sine wave |
|
Bypass Type |
Internal Bypass (Automatic and Manual) |
|
Efficiency at Full Load |
90% full load |
|
Maximum Output Current |
18A |
|
Maximum Configurable Power in VA |
8000VA |
Conformance:
|
Product Certifications |
CSA |
|
Standards |
FCC Part 15 class A |
Environmental:
|
Ambient Air Temperature for Operation |
32…104 °F (0…40 °C) |
|
Relative Humidity |
0…95% |
|
Operating Altitude |
0...10000 ft |
|
Ambient Air Temperature for Storage |
5…113 °F (-15…45 °C) |
|
Storage Relative Humidity |
0…95% |
|
Storage Altitude |
0…15000 ft (0.00…4572.00 m) |
|
Acoustic Level |
62 dBA |
|
Heat Dissipation |
3707 Btu/h |
Communications & Management:
|
Free Slots |
1 |
|
Pre-Installed SmartSlot™ Cards |
Network management card 2 with environmental monitoring |
|
Control Panel |
Multi-function LCD status and control console |
|
Alarm |
Audible and visible alarms : prioritized by severity |
|
Emergency Power Off (EPO) |
Yes |
