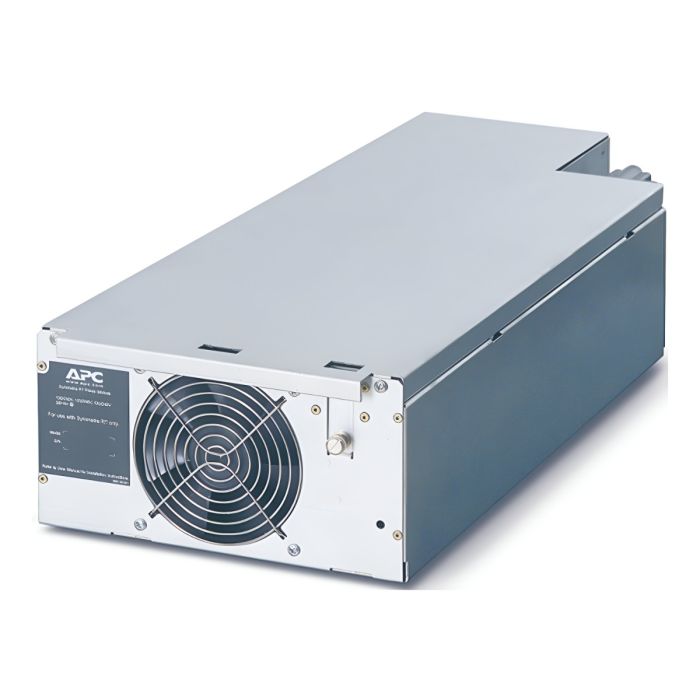

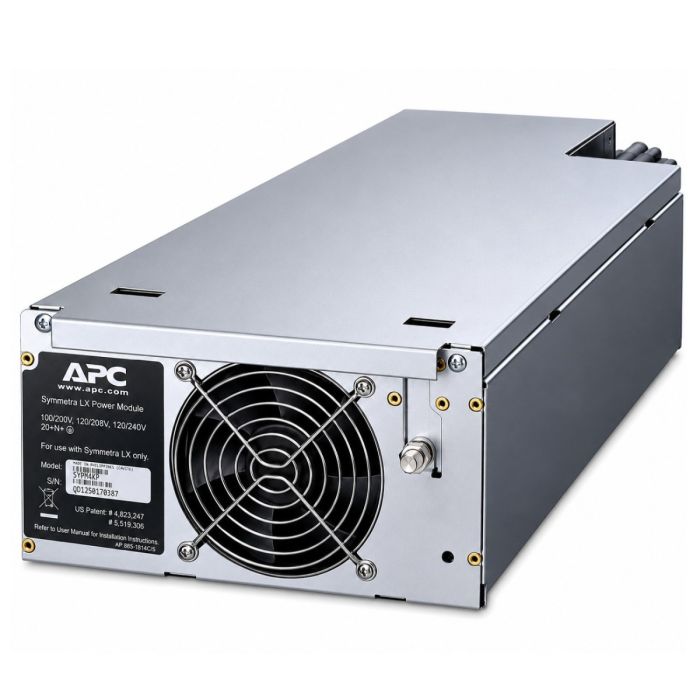

APC Symmetra LX 4000VA 3200W Power Module 200V/208V/240V SYPM4KP
APCÂ Symmetra LX 4kVA Power Module for APC Symmetra LX
Model: SYPM4KP
Double-Conversion Online
Refurbished Power Module
1 Year Warranty includedÂ
$1,099.99
In stock
Manufacturer: APC
Model: APC Symmetra LX 4kVA Power Module - SYPM4KP
Condition: Refurbished with a 1 year replacement warranty
Part Number:Â SYPM4KP
Warranty:Â 1 Year Full Replacement Warranty
Includes:Â SYPM4KP 4kVA Power Module
Â
APC Symmetra SYPM4KP Power Module 200/208V User Manual
Â
Â
Specifications for APC Symmetra SYPM4KP Power Module:
Main:
|
Main Input Voltage |
200V
208V |
|
Other Input Voltage |
240V
|
|
Main Output Voltage |
100V |
|
Other Output Voltage |
240V
|
|
Kw Rating |
3200W
|
|
Rated Power in VA |
4000VA
|
|
Output Connector Type |
Hard Wire 4-wire (2PH+N+G) 1
|
|
Number of Rack Unit |
0U
|
|
Number of Cables |
1
|
Â
Batteries & Runtime:
|
Included Battery Modules |
0
|
|
Battery Slots Empty |
0
|
|
Additional Information |
Configurable for 120/208 or 120/240 output voltage |
Â
Physical:
|
Color |
Silver
|
|
Height |
5.91 in (15 cm)
|
|
Width |
9.84 in (25 cm) |
|
Depth |
22.24 in (56.5 cm) |
|
Net Weight |
33.07 lb(US) (15 kg) |
|
Mounting Preference |
No Preference |
|
Mounting Mode |
Not rack-mountable |
|
USB Compatible |
No |
Â
Input:
|
Input Frequency |
45...65 Hz auto-sensing
|
|
Efficiency at Full Load |
155...276V
|
|
Input Power Factor at Full Load |
0.98 |
Â
Output:
|
Max Configurable Power (Watts) |
3200W
|
|
Harmonic Distortion |
Less than 5 % at full load
|
|
Output Frequency (sync to mains) |
47...63 Hz sync to mains |
|
Crest Factor |
Up to 5 : 1 |
|
Topology |
Double Conversion Online |
|
Waveform Type |
Sine wave |
Â
Conformance:
|
Product Certifications |
CSA
|
|
Standards |
FCC Part 15 class A
UL 1778 |
Â
Environmental:
|
Ambient Air Temperature for Operation |
32…104 °F (0…40 °C)
|
|
32…104 °F (0…40 °C) Relative Humidity |
0…95%
|
|
Operating Altitude |
0...10000 ft
|
|
Ambient Air Temperature for Storage |
5…113 °F (-15…45 °C)
|
|
Storage Relative Humidity |
0…95%
|
|
Storage Altitude |
0…15000 ft (0.00…4572.00 m)
|
|
Acoustic Level |
62 dBA
|
