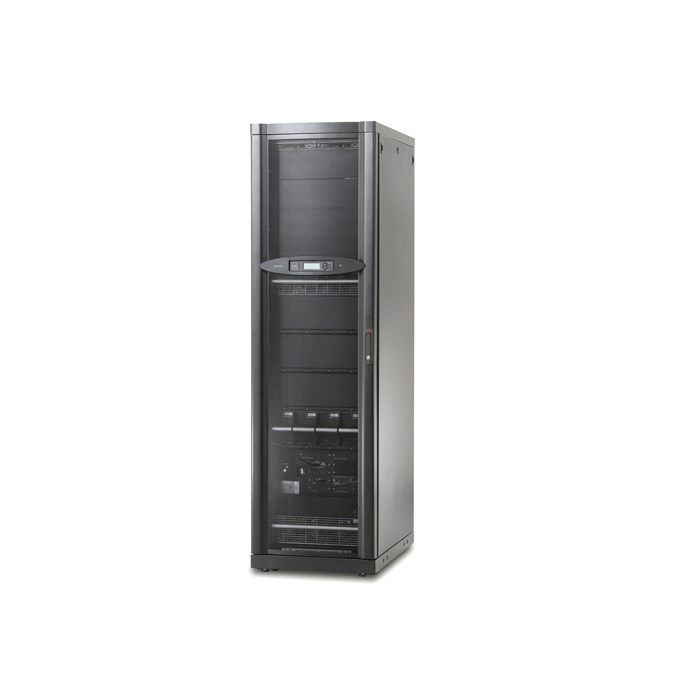

APC Symmetra PX 10kW Scalable to 40kW N+1, 208V SY10K40F

APC Symmetra PX 10kW to  Scalable to 40kW N+1, 208V (SY10K40F)
10 kW / 10 kVA
Output: (1) Hard Wire 5-wire (3PH + N + G), (1) Screw Terminals

Refurbished with New Batteries
1 Year Replacement Warranty

Availability: In stock

Msrp Price: $20,474.99

Now only: $13,649.99

Shipping Info
  • This item is in stock and ships within 1 business day
  • We will gladly accept returns for any reason within 30 days of receipt of delivery
  • Continental USA & Canada

Description

Details

Manufacturer: APC
Model: APC Symmetra PX 10kW to  Scalable to 40kW N+1, 208V
Condition: Refurbished with New Batteries
Part Number: SY10K40F
Warranty: 1 Year Full Replacement Warranty, additional warranty available

The SY10K40F comes refurbished with new batteries. The APC Symmetra comes with a one year replacement warranty. Additional warranty of up to 3 years is available for your convenience.

SY10K40F Specifications

General:

Bypass Connection

5 wire 3PH + N +G

Max Bypass Input Current

162A

Bypass Protection Device

175A


Output:

Output Power Capacity

10 kW / 10 kVA

Max Configurable Power

40 kW / 40 kVA

Nominal Output Voltage

120V, 208V, 208V 3PH

Output Voltage Distortion

Less than 5% at full load

Output Frequency

(sync to mains)

57 - 63 Hz for 60 Hz

nominal

Crest Factor

Unlimited

Other Output Voltages

240

Topology

Double Conversion Online

Waveform Type

sinewave

Output Connections

(1) Hard Wire 5-wire (3PH + N + G)

(1) Screw Terminals

Output Voltage Tolerance

+/-1% static and +/- 5%

at 100% load step

Output Voltage THD

< 2% for 0 to 100% linear

load and < 5% for full non

linear load

Overload Operation

60 seconds@ 125% and 30

seconds at 150%

Required Output Current Protection

150A

Bypass

Built-in Static Bypass


Input:

Nominal Input Voltage

208V 3PH

Input Frequency

50/60 Hz +/- 5 Hz

(auto sensing)

Input Connections

Hard Wire 5-wire

(3PH + N + G)



Input voltage range for

main operations

177 - 240V

Maximum Input Current

175.0  A

Maximum Short Circuit Withstand (Icw)

30.0 kA

Type of Input Protection Required

3-pole breaker


Batteries and Runtime:

Battery Type

Maintenance-free sealed

Lead-Acid battery with

suspended electrolyte :

leakproof

Included Battery Modules

1

Available Battery Module Slots

3

Typical recharge time

2 hour(s)

Replacement Battery

SYBT4

RBC™ Quantity

1

Nominal Battery Voltage

+/-192 V (split battery

referenced to neutral)

DC Overcurrent Protection

125A

Efficiency in Battery Operation

94.00%

Overload Operation

60 seconds@ 125% and

30 seconds at 150%

Extended Run Options

Symmetra PX 10kW

Scalable to 40kW N+1, 208V


Communications and Management:

Interface Port(s)

SmartSlot

Available SmartSlot

Interface Quantity

2

Pre-Installed SmartSlot

Cards

AP9630

Control panel

Multi-function LCD status

and control console

Audible Alarm

Alarm when on battery :

distinctive low battery alarm :

configurable delays

Emergency Power

Off (EPO)

Yes


Physical:

Maximum Height

2070.00 mm

Maximum Width

600.00 mm

Maximum Depth

902.00 mm

Rack Height

42U

Net Weight

406.82 KG

Shipping Weight

453.18 KG

Shipping Height

2311.00 mm

Shipping Width

749.00 mm

Shipping Depth

1054.00 mm

Color

Black

Units per Pallet

1.00


Environmental:

Operating Environment

0 - 40 °C

Operating Relative Humidity

0 - 95%

Operating Elevation

0-3000 meters

Storage Temperature

-15 - 45 °C

Storage Relative Humidity

0 - 95%

Storage Elevation

0-15000 meters

Audible noise at 1 meter

from surface of unit

64.00 dBA

Online Thermal Dissipation

3381.00 BTU/hr

Protection Class

NEMA 1
