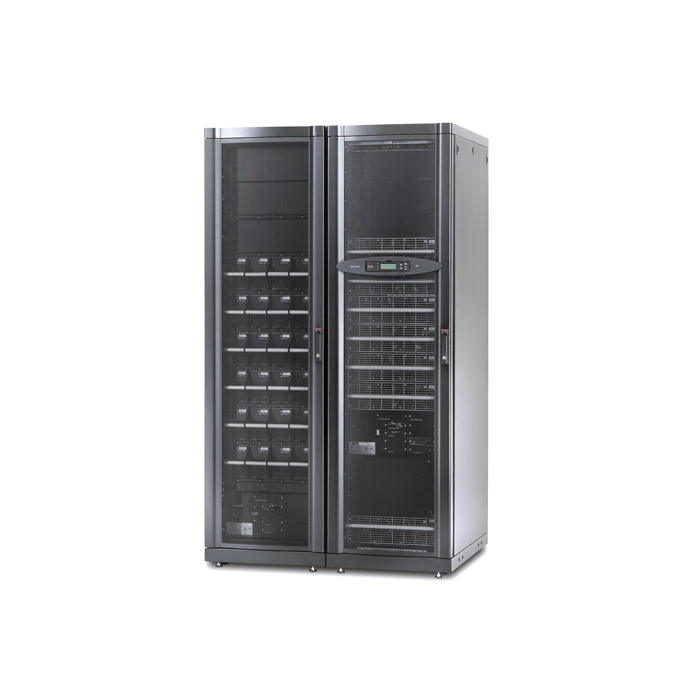

APC Symmetra PX 60kW Scalable to 80kW N+1 SY60K80F
APC Symmetra PX 60kW Scalable to 80kW N+1 (SY60K80F)
60 kW / 60 kVA
Output: (1) Hard Wire 5-wire (3PH + N + G), (1) Screw Terminals
Refurbished with New Batteries
1 Year Replacement Warranty
$34,449.99
In stock
Manufacturer: APC
Model: APC Symmetra PX 60kW Scalable to 80kW N+1
Condition: Refurbished with New Batteries
Part Number: SY60K80F
Warranty: 1 Year Full Replacement Warranty, additional warranty available
The SY60K80F comes refurbished with new batteries. The APC Symmetra comes with a one year replacement warranty. Additional warranty of up to 3 years is available for your convenience.
SY60K80F - APC Symmetra PX 60kW Specifications:
Main:
|
Main Input Voltage |
208 V 3 phase |
|
Main Output Voltage |
120V |
|
Kw Rating |
60000W |
|
Rated Power in VA |
60000VA |
|
Output Connector Type |
Hard Wire 5-wire (3PH + N + G) 1 |
|
Connections - terminals |
1 screw terminals |
|
Battery Type |
External battery system |
Batteries & Runtime:
|
Included Battery Modules |
6 |
|
Battery Slots Empty |
2 |
|
Typical Recharge Time |
2 h |
|
Battery Charge Power (Watts) |
8253 W rated |
|
Battery Life |
3…5 year(s) |
|
Replacement Battery |
SYBT4 |
|
Extendable Run Time |
1 |
General:
|
Number of Power Module Free Slots |
0 |
|
Number of Power Module Filled Slots |
0 |
|
Redundant |
Yes |
Physical:
|
Color |
Black |
|
Height |
81.50 in (207 cm) |
|
Width |
47.99 in (121.9 cm) |
|
Depth |
35.51 in (90.2 cm) |
|
Net Weight |
2747.76 lb(US) (1246.36 kg) |
|
USB Compatible |
No |
Input:
|
Input Frequency |
50/60 Hz +/- 5 Hz auto-sensing
|
|
Number of Input Connectors |
1 Hard Wire 5-wire (3PH + N + G) |
|
Efficiency at Full Load |
177...240V |
|
Maximum Short Circuit Withstand (Icw) |
30 kA |
|
Input Power Factor at Full Load |
0.99 |
Output:
|
Max Configurable Power (Watts) |
80000W
|
|
Harmonic Distortion |
Less than 3% |
|
Output Frequency (sync to mains) |
57...63 Hz for 60 Hz nominal sync to mains |
|
Crest Factor |
Unlimited |
|
Topology |
Double Conversion Online |
|
Waveform Type |
Sine wave |
|
Bypass Type |
Built-in Static Bypass |
|
Maximum Output Current |
222 A |
|
Maximum Configurable Power in VA |
80000VA |
Conformance:
|
Product Certifications |
cUL Listed
CSA |
|
Standards |
FCC Part 15 class A |
Environmental:
|
Ambient Air Temperature for Operation |
32…104 °F (0…40 °C)
|
|
Relative Humidity |
0…95% |
|
Operating Altitude |
0...10000 ft |
|
Ambient Air Temperature for Storage |
5…104 °F (-15…40 °C) |
|
Storage Relative Humidity |
0…95% |
|
Storage Altitude |
0…50000 ft (0.00…15240.00 m) |
|
Acoustic Level |
71 dBA |
|
Heat Dissipation |
17826 Btu/h |
|
NEMA degree of protection |
NEMA 1 |
Communications & Management:
|
Free Slots |
2
|
|
Pre-Installed SmartSlot™ Cards |
Network management card |
|
Emergency Power Off (EPO) |
Yes |
