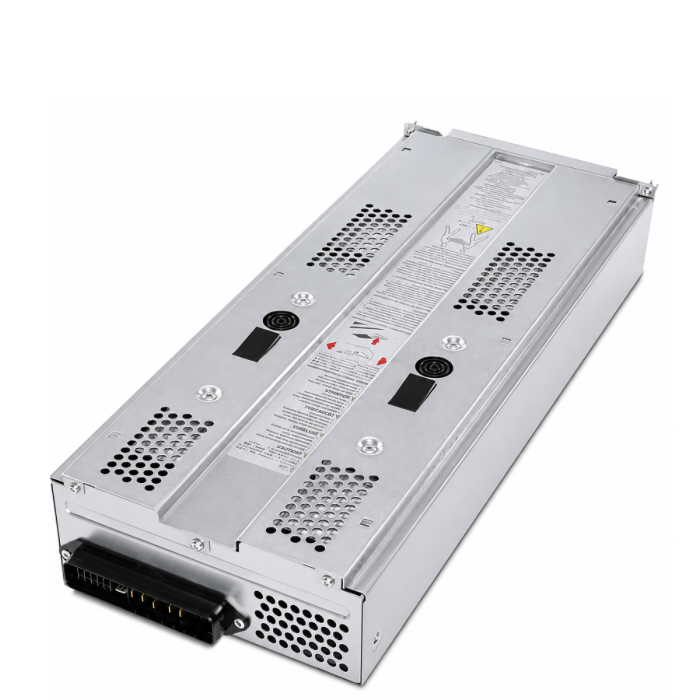

APC Symmetra RM 2000-6000VA Replacement Battery Module - SYBT2
APC Symmetra RM 2-6kVA Battery Module
Model: SYBT2
120V DC Battery Module
Plug-and-Play Installation
Compatible with APC Symmetra RM 2-6kVA Systems
New Batteries, Clean System-Pulled APC Case
1 Year Replacement Warranty Included
$499.99
In stock
Model: SYBT2
Model Description: APC Symmetra RM 2-6kVA Battery Module
Case Manufacturer: APC
Condition: Fresh New Batteries, Clean Refurbished Battery Module Case
Battery System: 120V DC, 5Ah
Battery Type: Sealed Lead-Acid (VRLA)
Compatibility: APC Symmetra RM 2-6kVA Systems
Installation: Plug-and-Play Battery Module
Warranty: 1 Year Replacement Warranty
Includes: Fully assembled SYBT2 Battery Module with fresh new batteries
Lifetime Expectancy: 3-5 Years
Description: The APC SYBT2 is a replacement battery module designed for APC Symmetra RM 2-6kVA modular UPS systems. Each module features a 120V DC battery system and installs directly into the Symmetra RM battery bay using its integrated internal connector. This replacement is supplied fully assembled with fresh new batteries in a clean refurbished original APC battery module case for convenient plug-and-play installation. The Symmetra RM supports multiple SYBT2 modules depending on system configuration and can accommodate up to six battery modules.
Â
Â
APC Symmetra RM 2-6kVA Battery Module SYBT2 - User Manual
Â
Â
Â
SYBT2 - APC Symmetra RM 2-6kVA Specifications:
| Main | Â |
| Manufacturer | APC |
| Model | SYBT2 |
| Product Type | Replacement Battery Module |
| Compatible UPS Series | APC Symmetra RM |
| Compatible UPS Capacity | 2kVA / 4kVA / 6kVA Symmetra RM Systems |
| Module Type | Modular Internal Battery Module |
| Installation Type | Plug-and-Play / Slide-In Module |
| Maximum Battery Modules Supported by Symmetra RM | Up to 6 Modules |
| Case Manufacturer | APC |
| Case Condition | Clean Refurbished Original APC Battery Module Case |
| Battery Condition | Fresh New Batteries |
| Warranty | 1 Year Replacement Warranty |
| Â | Â |
| Batteries & Electrical | Â |
| Battery Type | Sealed Lead-Acid (VRLA) |
| Battery Technology | Maintenance-Free Lead-Acid |
| Battery Module Voltage | 120V DC |
| Battery Capacity | 5Ah |
| Battery Location | Internal / Modular UPS Battery Bay |
| Battery Module SKU | SYBT2 |
| Battery Replacement | User/Service Replaceable Module |
| Module Connection | Integrated Internal Electrical Connector |
| Installation | Slides Directly into Symmetra RM Battery Bay |
| Assembly Required | No |
| Battery Module Configuration | Fully Assembled |
| Battery Module Positioning | Right-Side Bays Filled Before Left-Side Bays |
| Recommended Storage Temperature | Below 25°C (77°F) |
| Expected Battery Life | 3-5 Years |
| Â | Â |
| Compatibility | Â |
| UPS Family | APC Symmetra RM |
| SYH2K6RMT | Compatible |
| SYH4K6RMT | Compatible |
| SYH6K6RMT | Compatible |
| SYH2K6RMI | Compatible |
| SYH4K6RMI | Compatible |
| SYH6K6RMI | Compatible |
| SYH2K6RMT-P1 | Compatible |
| SYH4K6RMT-P1 | Compatible |
| SYH6K6RMT-P1 | Compatible |
| Maximum Internal Battery Modules | 6 |
| Battery Bay Arrangement | Up to 3 Right-Side + 3 Lower Left-Side Modules |
| Â | Â |
| Installation & Service | Â |
| Installation Method | Slide-In Modular Installation |
| Electrical Connection | Automatic Connection When Fully Inserted into Battery Bay |
| Securing Method | Two Retaining Screws |
| Hot-Swappable Design | Modular Replaceable Battery System |
| Installation Personnel | Service Personnel Recommended |
| Module Handling | Two-Person Installation / Removal Recommended |
| Module Weight per APC Installation Manual | 48 lb (21.8 kg) |
| Â | Â |
| Physical | Â |
| Color | Beige |
| Height | 3.27 in (8.3 cm) |
| Width | 8.50 in (21.6 cm) |
| Depth | 21.50 in (54.6 cm) |
| Weight | Approx. 48-49 lb (21.8-22.3 kg) |
| Enclosure | Enclosed Battery Cartridge / Module |
| Mounting | Internal Symmetra RM Battery Bay |
| Â | Â |
| Environmental | Â |
| Operating Temperature | 32-104°F (0-40°C) |
| Recommended Battery Storage Temperature | Below 77°F (25°C) |
| Relative Humidity | 0-95% |
| Operating Altitude | 0-10,000 ft |
| Storage Temperature | 5-113°F (-15-45°C) |
| Storage Altitude | Up to 50,000 ft (15,240 m) |
| Storage Relative Humidity | 0-95% |
| Â | Â |
| Safety & Maintenance | Â |
| Battery Safety Rating Referenced in Manual | 120V, 5Ah |
| Battery Recycling | Required |
| Replacement Battery Module | APC SYBT2 |
| Deep-Discharge Protection Recommendation | Install Modules Only When System Is Ready to Be Powered |
| Maintenance | Maintenance-Free Battery Design |
