Avaya 05146005 Zoom


Avaya Rack/Tower UPS 1500VA 05146005-4103

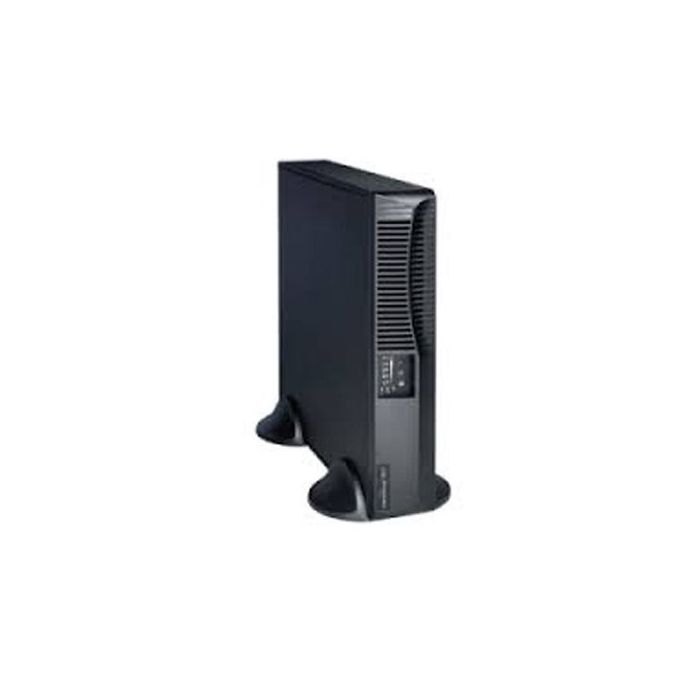

Avaya Rack/Tower UPS 1500VA
Model: 05146005-4103
Refurbished with New Batteries
1 Year Extended Warranty Included

Msrp Price: $529.99


Availability: Sold Out



Manufacturer:  Avaya Rack/Tower UPS 1500VA
Model: PW9125-1500 Refurbished
Condition: Refurbished with New Batteries
Part Number: 05146005-4103
Warranty: 1 Year Extended Warranty, additional warranty available

The Avaya Rack/Tower UPS 1500VA comes refurbished with new batteries. The Avaya UPS comes with a one year replacement warranty. Additional warranty of up to 3 years is available for your convenience.

Avaya Rack/Tower UPS 1500VA Specifications:

Electrical Input

Nominal Voltage

120 Vac (user-selectable for 100, 110, 120, and 127 Vac
See Model Selection Guide

Voltage Range

80 - 144V (without using batteries)

Input Power Factor

>.95, typical


50/60 Hz, autosensing

Frequency Range

45 - 65 Hz

Electrical Output

On Utility Voltage Regulation

+/-3% of nominal

On Battery Voltage Regulation

+/-3% of nominal


89 - 92%, depending on load

Frequency Regulation

+/- 3 Hz online; +/- 0.1 Hz on battery

Load Crest Factor

3 to 1 ratio


Internal Battery type

Sealed, lead-acid; maintenance free
700/1000VA: (2) 12V, 9 Ah
1250-2000VA: (4) 12V, 9 Ah

EBM Battery Type

PW9125 24 EBM: (8) 12V, 9 Ah
PW9125 48 EBM: (8) 12V, 9 Ah

On Battery Runtime

See Battery Runtimes

Battery Replacement

Hot-swappable internal and external batteries

Recharge Time

<2 hrs. from complete discharge to 80% capacity at nominal line conditions


Allows start of UPS without utility iinput


Serial Port

RS-232 communications port standard

Communications Cable

6-foot communications cable included

ConnectUPS-M SNMP Module (Optional)2

SNMP card adds direct control and monitoring capabilities in SNMP-based networks

RS-232 Multi-Port Module


Equipped with (6) communications ports to provide serial communication to multiple devices

USB Module


Allows UPS to communicate with Windows 98 computers via USB port; factory-installed option only



True online, double-conversion


Full system self-test on power up

UPS Bypass

Automatic on overload or UPS failure


50 lbs

Environmental and Safety

Safety Markings

UL, CSA, and NOM

EMC Markings

FCC Class B and VCCI Class II

Surge Suppression

IEEE/ANSI C62.41 Category B (formerly 587)

Audible Noise

<45 dBA (on utility); <50 dBA (on battery)

Storage Temperature

0o to 25o C (32o to 77o F)

Relative Humidity

5 to 90%%, non-condensing


Meets NEC code 645-II intent and UL requirements

Network Transient Protector

In and out jack for telephone/modem protection of 10Base-T network cable; UL497A tested


Additional Info

Additional Info

Manufacturer N/A
Form Factor N/A
Waveform in Battery Mode N/A
Input Voltage N/A
Output (VA) No
Output Voltage N/A
PDU Total Outlets N/A
