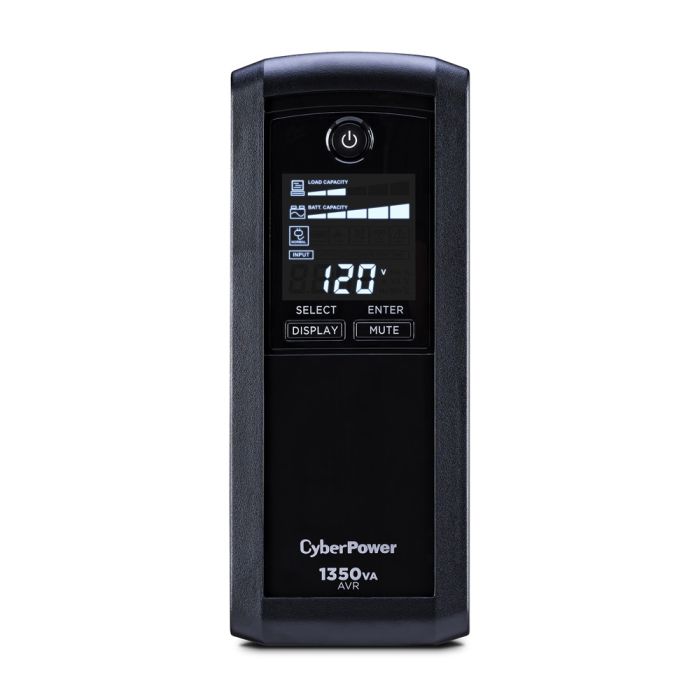

CyberPower Intelligent LCD UPS 1350VA 815W Tower 120V CP1350AVRLCD - Refurbished
CyberPower Intelligent LCD UPS 1350VA 815W Tower
Model: CP1350AVRLCD
Input: NEMA 5-15P (120V - 15A)
Output: (10) NEMA 5-15R
Line-Interactive UPS - Simulated Sine Wave Output
New batteries, Refurbished UPS
1 Year Warranty Included
$209.99
Back Order
Manufacturer: CyberPower
Model: CyberPower Intelligent LCD UPS 1350VA 815W, 15A, 120V, Tower
Condition: New batteries, refurbished UPS
Part Number: CP1350AVRLCD
Maximum output: 815W / 1350VA
Typical backup time at half load: 14 minutes (408 Watts)
Typical backup time at full load: 4 minutes (815 Watts)
Warranty: 1 year full replacement warranty
CyberPower Intelligent LCD UPS 1350VA CP1350AVRLCD User's Manual
CP1350AVRLCD - CyberPower Intelligent LCD UPS 1350VA Specifications:
General:
|
UPS Topology |
Line Interactive |
Battery:
|
Battery Capacity |
9Ah |
|
Battery Quantity |
2 |
|
Battery Size |
12V / 9Ah |
|
Battery Type |
Sealed Lead-Acid Battery |
|
Battery Voltage |
12 VDC |
|
Hot Swappable |
Yes |
|
Replacement Battery Cartridge |
RB1290X2 (for serial numbers that begin with “CTJ” or “CDN”) |
|
Replacement Battery Cartridge Quantity |
1 |
|
Runtime at Full Load |
4 min |
|
Runtime at Half Load |
14 min |
|
Typical Recharge Time |
8 Hours |
|
User Replaceable Battery |
Yes |
Input:
|
Circuit Breaker |
15A |
||
|
Cord Length |
6 ft (1.8 m) |
||
|
Input Frequency Range |
57 Hz – 63 Hz |
||
|
Input Plug Type |
|
||
|
Input Voltage Range |
90 VAC – 142 VAC |
||
|
Nominal Input Voltage |
120 VAC |
||
|
Plug Style |
Right Angle – 45° Offset |
Output:
|
Automatic Voltage Regulation |
Single Boost |
||
|
On AC WaveForm |
Sine Wave |
||
|
On Battery Frequency |
60 Hz ± 1% |
||
|
On Battery Voltage |
120 VAC ± 5% |
||
|
On Battery Waveform |
Simulated Sine Wave |
||
|
Outlet Type |
|
||
|
Outlets – Battery & Surge Protected |
5 |
||
|
Outlets – Surge-Only Protected |
5 |
||
|
Outlets – Total |
10 |
||
|
Output Power Factor |
0.6 |
||
|
Overload Protection |
Internal Circuitry Limiting |
||
|
Typical Transfer Time |
4 ms |
||
|
USB Charge Port |
No |
||
|
Under/Over-Voltage Correction |
+10% |
||
|
VA |
1350VA |
||
|
Watts |
815W |
Surge Protection & Filtering:
|
Coax Protection RG6 |
1 in |
|
EMI/RFI Filtration |
Yes |
|
Network Protection RJ45 |
1-in / 1-Out (10/100/1000) |
|
Phone / Network Protection RJ11/RJ45 |
1-In / 1-Out (Combo) |
|
Surge Suppression (Joules) |
1500 J |
Management & Communications:
|
Audible Alarms |
Battery Mode |
|
HID Compliant USB Port |
Yes |
|
LCD |
Multifunction LCD |
|
LCD Backlight |
Black |
|
LED Indicators |
Power On |
|
Management Cable |
USB Cable |
|
SNMP / HTTP Remote Monitoring |
None |
|
Serial Port |
1 Dry Contact |
|
Software (Free Download) |
PowerPanel® Personal |
Physical:
|
Color |
Black |
|
Form Factor |
Mini-Tower |
|
Material of Construction |
Plastic |
Dimensions:
|
Physical Dimensions – (WxHxD) (cm) |
9.91 x 24.89 x 34.8 (cm) |
|
Physical Dimensions – (WxHxD) (in) |
3.9 x 9.8 x 13.7 (in) |
|
Physical Dimensions – (WxHxD) (mm) |
99 x 249 x 348 (mm) |
|
Physical Weight (kg) |
10.16 |
|
Physical Weight (lb) |
22.4 |
Environmental:
|
Operating Elevation |
0 – 10000 ft (0 – 3048 m) |
|
Operating Relative Humidity |
0 – 90 % (non-condensing) |
|
Operating Temperature |
32 – 104 °F (0 – 40 °C) |
|
Storage Elevation |
0 – 50000 ft (0 – 15239 m) |
|
Storage Relative Humidity |
0 – 95% (non-condensing) |
|
Storage Temperature |
5 – 113 °F (-15 – 45 °C) |
Certifications:
|
Environmental |
RoHS Compliant |
|
Safety |
UL1778 |
