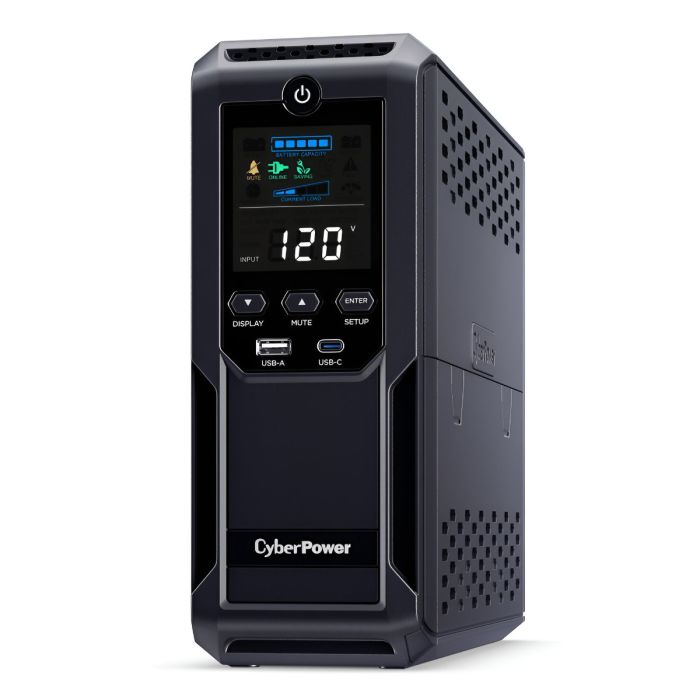

CyberPower Intelligent LCD UPS 1500VA 900W Tower 120V CP1500AVRLCD3 - Refurbished
CyberPower Intelligent LCD UPS 1500VA 900W Tower
Model: CP1500AVRLCD3
Input: NEMA 5-15P (120V - 15A)
Output: (12) NEMA 5-15R
Line-Interactive UPS - Simulated Sine Wave Output
New batteries, Refurbished UPS
1 Year Warranty Included
$239.99
In stock
Manufacturer: CyberPower
Model: CyberPower Intelligent LCD UPS 1500VA 900W, 15A, 120V, Tower
Condition: New batteries, refurbished UPS
Part Number: CP1500AVRLCD3
Maximum output: 900W / 1500VA
Typical backup time at half load: 12 minutes (450 Watts)
Typical backup time at full load: 3 minutes (900 Watts)
Warranty: 1 year full replacement warranty
A mini-tower UPS with line interactive topology, the CyberPower Intelligent LCD CP1500AVRLCD3 provides battery backup (using simulated sine wave output) and surge protection for desktop computers, workstations, networking devices, and home entertainment systems. The CP1500AVRLCD3 uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently.
CyberPower Intelligent LCD UPS 1500VA - User's Manual
CP1500AVRLCD3 - CyberPower Intelligent LCD UPS 1500VA Specifications:
General:
|
Energy Saving |
GreenPower UPS™ Bypass Technology |
|
Energy Star Certified |
Yes |
|
UPS Topology |
Line Interactive |
Battery:
|
Battery Quantity |
2 |
|
Battery Size |
12V / 9Ah |
|
Battery Type |
Sealed Lead-Acid Battery |
|
Hot Swappable |
Yes |
|
Replacement Battery Cartridge |
RB1290X2E |
|
Replacement Battery Cartridge Quantity |
1 |
|
Runtime at Full Load |
3 min |
|
Runtime at Half Load |
12 min |
|
Typical Recharge Time |
8 Hours |
|
User Replaceable Battery |
Yes |
Input:
|
Circuit Breaker |
15A |
|
Cord Length |
6 ft (1.8 m) |
|
Input Frequency Range |
57 Hz – 63 Hz |
|
Input Plug Type |
NEMA 5-15P |
|
Input Voltage Range |
90 VAC – 142 VAC |
|
Nominal Input Voltage |
120 VAC |
|
Plug Style |
Right Angle, 45° Offset Right |
Output:
|
Automatic Voltage Regulation |
Single Boost |
|
On AC WaveForm |
Sine Wave |
|
On Battery Frequency |
60 Hz ± 1% |
|
On Battery Voltage |
120 VAC ± 5% |
|
On Battery Waveform |
Simulated Sine Wave |
|
Outlet Type |
12 - NEMA 5-15R |
|
Outlets – Battery & Surge Protected |
6 |
|
Outlets – Surge-Only Protected |
6 |
|
Outlets – Total |
12 |
|
Output Power Factor |
0.6 |
|
Overload Protection |
Internal Circuitry Limiting |
|
Typical Transfer Time |
4 ms |
|
USB Charge Port |
1 Type A |
|
USB Charge Port Voltage |
5 VDC |
|
USB Charge Port Watts |
20 Watts |
|
VA |
1500 VA |
|
Watts |
900 W |
Surge Protection & Filtering:
|
Coax Protection RG6 |
1 in |
|
EMI/RFI Filtration |
Yes |
|
Network Protection RJ45 |
1-in / 1-Out (10/100/1000) |
|
Surge Suppression (Joules) |
1500 J |
Management & Communications:
|
Audible Alarms |
Battery Mode |
|
HID Compliant USB Port |
Yes |
|
LCD |
Multifunction LCD |
|
LED Indicators |
Power On |
|
Management Cable |
USB Cable |
|
Serial Port |
1 Dry Contact |
|
Software (Free Download) |
PowerPanel® Personal |
Physical:
|
Color |
Black |
|
Form Factor |
Mini-Tower |
|
Material of Construction |
Plastic |
Dimensions:
|
Physical Dimensions – (WxHxD) (cm) |
10.01 x 25.91 x 35.0 cm |
|
Physical Dimensions – (WxHxD) (in) |
3.94 x 10.2 x 13.78 in. |
|
Physical Dimensions – (WxHxD) (mm) |
100 x 259 x 350 mm |
|
Physical Weight (kg) |
10.80 kg. |
|
Physical Weight (lb) |
23.80 lbs. |
Environmental:
|
Operating Elevation |
0 – 10000 ft (0 – 3048 m) |
|
Operating Relative Humidity |
0 – 95 % (non-condensing) |
|
Operating Temperature |
32 – 104 °F (0 – 40 °C) |
|
Storage Elevation |
0 – 50,000 ft (0 – 15,239 m) |
|
Storage Relative Humidity |
0 – 95% (non-condensing) |
|
Storage Temperature |
5 – 113 °F (-15 – 45 °C) |
Certifications:
|
Environmental |
RoHS Compliant |
|
Safety |
UL1778 |
