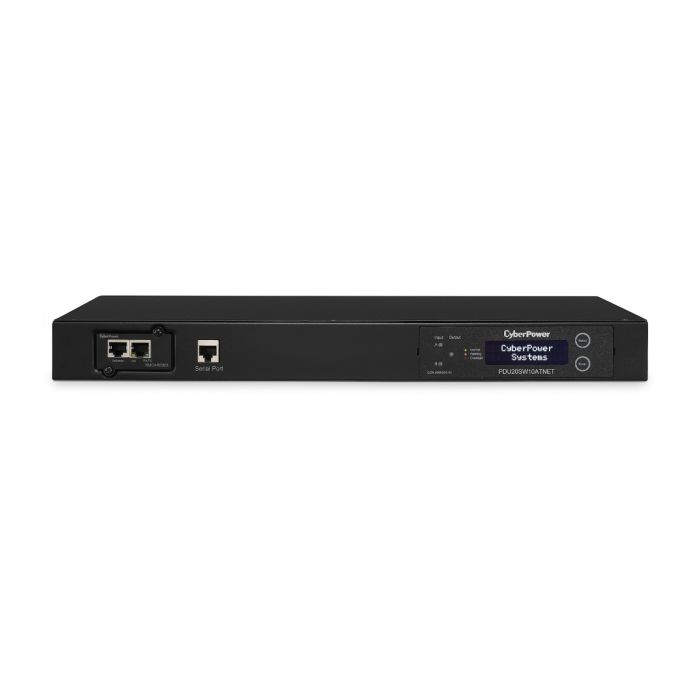

CyberPower PDU20SW10ATNET Rack PDU, Switched, 20A 120V (10)5-20R Output - Refurbished
CyberPower PDU20SW10ATNET Rack PDU, Switched, 1U, 120V 20A, 120V, (10)5-20R
Model: PDU20SW10ATNET
Input: 120V 20A - (2) NEMA 5-20P
Output: (10) NEMA 5-20R
Refurbished PDU
1 Year Replacement Warranty
$499.99
In stock
Manufacturer:Â CyberPower
Model: PDU20SW10ATNET
Description: Refurbished PDU - CyberPower PDU20SW10ATNET, Tower PDU, Switched, 1U, 20A 120V, (10)5-20R
Input: (2) NEMA Â 5-20P - 20A 120V
Output: (10) NEMA Â 5-20R
Condition: Refurbished
Warranty: 1 Year Warranty, additional warranty available
PDU20SW10ATNET Rack PDU .- Provides output from a UPS unit, generator, or utility power to multiple connected devices in IT environments. Dual power cords can be plugged into separate power sources to provide redundancy to single-corded connected equipment. If the selected power source exceeds the desired thresholds or fails, the PDU will automatically switch to the other power source to ensure continuous operation. The unit supports remote individual outlet control over the network, allowing administrators to turn on/off connected devices from any location.
Â
 CyberPower PDU20SW10ATNET, Tower PDU, Switched - User Manual
Â
Â
Main Features:
- Real-Time Local/Remote Monitoring and Switching
- Dual Input
- Industrial-grade Metal Housing
- Hot-swappable LCD Design
- Support ENVIROSENSOR
- PowerPanel® Management Software
- Cord Retention Tray
- Controllable Receptacles with Power Sequencing
- Quick Transfer Time 8-12 ms (typical)
- Digital Real-time Load Display
- LED Status Indicator
- User-upgradeable Firmware
- Adjustable Mounting Brackets
Â
|
Technical Specifications: |
||
|
|
 |
|
|
Output Voltage (V) |
Depends on Input (100–120 V) |
|
|
Outlets - # of Bank(s) |
1 |
|
|
Outlet(s) - Total |
10 |
|
|
Outlet(s) - Rear |
10 |
|
|
Outlet Type |
(10) NEMA 5-20R |
 |
|
Remote Individual Outlet Control |
Yes |
 |
|
Typical Transfer Time (ms) |
8 ~ 12 |
 |
|
 |
 |
 |
|
Input |
 |
|
|
Dual Power Inputs |
Yes |
|
|
Nominal Input Voltage (Vac) |
100 ~ 120 |
|
|
Input Frequency (Hz) |
50 / 60 |
|
|
Maximum Input Current (A) |
12 |
|
|
Input Connections |
(2) NEMA 5-20P |
 |
|
Power Cord Length (ft.) |
10 |
|
|
Power Cord Length (m.) |
3.05 |
|
Â
|
|
|
|
Dimensions (WxHxD) (in.) |
17.05 x 1.75 x 9.3 |
|
Dimensions (WxHxD) (mm.) |
433 x 44 x 236 |
|
Weight (lbs.) |
11.2 |
|
Weight (kg.) |
5.1 |
|
Installed Rack Height (U) |
1 |
|
Form Factor |
1U Horizontal Rackmount |
|
Enclosure Construction |
Steel |
|
Color |
Black |
|
Cord Retention Tray |
Yes |
|
External Site Ground Pin |
Yes |
|
Adjustable Mounting Brackets |
1 Set |
|
|
|
|
Hardware Connection Port |
RJ45 |
|
LCD |
Multifunction LCD |
|
LED Indicators |
Input Output Load Tx/Rx LINK Outlets |
|
Protocols |
TCP/IP UDP DHCP SNMP HTTP |
|
SNMP / HTTP Remote Monitoring |
RMCARD203 (Installed) -Â RMCARD205 (sold separately) |
|
|
|
|
Operating Temperature (°F) |
32 ~ 113 |
|
Operating Temperature (°C) |
0 ~ 45 |
|
Operating Relative Humidity (Non-condensing) (%) |
0 ~ 95 |
|
Operating Elevation (feet/meters) |
0-13,123 feet (0-4,000 meters) |
|
Storage Temperature (°F) |
5 ~ 131 |
|
Storage Temperature (°C) |
-15 ~ 55 |
|
Storage Relative Humidity (Non-condensing) (%) |
0 ~ 95 |
|
Storage Elevation (feet/meters) |
0-49,213 feet (0-15,000 meters) |
