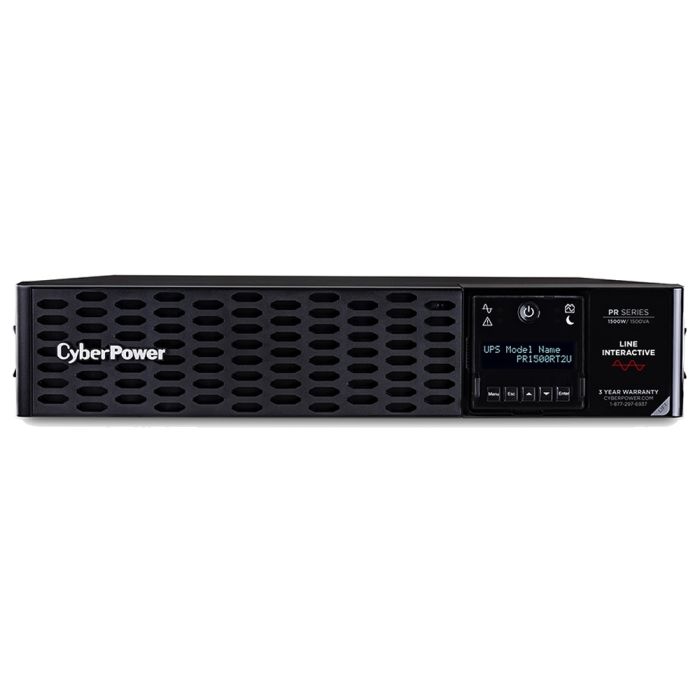

CyberPower Smart App 1500VA 1500W RM 2U 120V 15A PR1500RT2U Output: (8)5-15R- Refurbished

Manufacturer: CyberPower
Model: CyberPower Smart App Sinewave UPS 1500VA 1500W, RM, 2U, 15A, 120V
Condition: New Batteries, Refurbished UPS
Part Number: PR1500RT2U
Maximum Output: 1500W / 1500VA
Typical Backup Time at Half Load: 18.2 Minutes (750W)
Typical Backup Time at Full Load: 6.5 Minutes (1500W)
Input: NEMA 5-15P, 120V AC, 15A
Output: (8) NEMA 5-15R
Topology: Line-Interactive
Output Waveform: Pure Sine Wave
Automatic Voltage Regulation: Double Boost, Single Buck AVR
Network Management: Optional RMCARD205
Warranty: 1 Year Full Replacement Warranty

CyberPower Smart App Sinewave UPS 1500VA 1500W - User Manual

PR1500RT2U - CyberPower Smart App LCD UPS 1500VA Specifications:

Key Features
Manufacturer	CyberPower
Model	PR1500RT2U
Product Family	Smart App Sinewave
UPS Topology	Line-Interactive
Form Factor	Rackmount
Rack Height	2U
Maximum Output Capacity	1500VA / 1500W
Rated Power Factor	1.0
Nominal Input Voltage	120V AC
Nominal Output Voltage	120V AC
Output Waveform	Pure Sine Wave
Input Plug	NEMA 5-15P
Output Receptacles	(8) NEMA 5-15R
Automatic Voltage Regulation	Double Boost, Single Buck
Energy Saving Technology	GreenPower UPS Bypass Technology
ENERGY STAR Certified	Yes
Active PFC Compatible	Yes
Multifunction LCD	Yes
Network Management	Optional RMCARD205
Input
Nominal Input Voltage	120V AC
Input Voltage	100–125V AC
Input Voltage Range	75–155V AC
Adjustable Input Voltage Range	70–155V AC
Input Frequency Range	47–63 Hz
Input Phase	Single-Phase
Input Connection Type	NEMA 5-15P
Input Plug Style	Right Angle, 45° Offset
Input Cord Length	10 ft (3 m)
Input Circuit Breaker	15A
Output
Rated Output Capacity	1500VA
Rated Output Power	1500W
Maximum Configurable Power	1500VA
Maximum Configurable Power (Watts)	1500W
Rated Power Factor	1.0
Nominal Output Voltage	120V AC
Configurable Output Voltage	100/110/120/125V AC
On-Battery Output Voltage	100/110/120/125V AC ±5%
On-Battery Frequency	50/60 Hz ±1%
On-AC Waveform	Sine Wave
On-Battery Waveform	Pure Sine Wave
Automatic Voltage Regulation	Double Boost, Single Buck
Total Output Receptacles	8
Output Receptacle Type	NEMA 5-15R
Battery & Surge Protected Outlets	8
Critical Load Outlets	4
Non-Critical Load Outlets	4
Surge-Only Outlets	0
Critical / Non-Critical Load Management	Yes
Non-Critical Load Outlet Control	Configurable Through LCD
Non-Critical Load Shutdown Delay	Configurable
Non-Critical Load Restore Delay	Configurable
Typical Transfer Time	4 ms
Overload Protection	Internal Circuitry Limiting
	15A Circuit Breaker
Batteries & Runtime
Battery Type	Maintenance-Free Sealed Lead-Acid
Battery Quantity	4
Battery Voltage	12V per Battery
Battery Capacity	9Ah per Battery
Internal Battery Configuration	(4) 12V, 9Ah Batteries
Replacement Battery Cartridge	RB1290X4J
Replacement Battery Cartridge Quantity	1
Typical Runtime at Half Load	18.2 Minutes (750W)
Typical Runtime at Full Load	6.5 Minutes (1500W)
Typical Recharge Time	3 Hours to 90% Capacity
Hot-Swappable Batteries	Yes
User-Replaceable Batteries	Yes
Battery Status Monitoring	Yes
Battery Capacity Display	Yes
Estimated Remaining Runtime Display	Yes
Battery Self-Test	Yes
Battery Calibration	Supported Through LCD
Battery Replacement Notification	Yes
Low Battery Alarm	Yes
Battery Management	Intelligent Battery Management
External Battery Pack Support	Not Specified for PR1500RT2U
Compatible External Battery Pack	No Manufacturer-Confirmed Model
Communications & Management
Control Panel	Multifunction LCD Status and Control Console
LCD Display	Input and Output Voltage
	Battery Capacity and Status
	Load Capacity
	Estimated Remaining Runtime
	UPS Operating Mode
	System Status and Event Logs
	Fault and Warning Notifications
LCD Settings	27 Setup and Control Items
LCD Status Information	20 Status Updates and Log Menus
LCD Configuration	47 Settings and Status Functions
LCD Menu Navigation	Yes
LCD Night Mode	Yes
LCD Sleep / Hibernation Settings	Yes
Audible Alarm Configuration	Yes
UPS Self-Test	Supported
Battery Calibration	Supported
Event Log	Yes
HID-Compliant USB Port	Yes
Serial Port	Yes
USB / Serial Communication	Supported
USB and Serial Simultaneous Operation	No
Network Management Slot	1 Expansion Slot
Network Management Card	Optional RMCARD205
Network Management Card Included	No
SNMP Monitoring	Supported with Optional RMCARD205
HTTP Remote Monitoring	Supported with Optional RMCARD205
Remote Monitoring & Management	Supported with Optional Network Card
Management Software	PowerPanel Business
Software Availability	Free Download
Automatic System Shutdown	Supported Through Compatible Management Software
Emergency Power Off (EPO)	Yes
Remote On/Off (ROO)	Yes
Dry Contact Interface	Yes
Environmental Sensor Port	Yes
LED Indicators	Power On
	Line Mode
	Battery Mode
	Fault
	Night Mode
	Wiring Fault
Audible Alarms	Battery Mode
	Low Battery
	Overload
	Overcharge
	Overheat
Surge Protection & Filtering
Surge Suppression Rating	2430 Joules
EMI/RFI Filtering	Yes
Network Protection	RJ45
Network Protection Connections	1-In / 1-Out
Optional Coaxial Protection	RG6, 1-In / 1-Out
Automatic Voltage Regulation	Yes
Overload Protection	15A Circuit Breaker
Energy Saving Technology	GreenPower UPS Bypass Technology
Physical
Color	Black
Material of Construction	Metal
Form Factor	Rackmount / Tower
Rack Height	2U
Width	17.1 in (434 mm)
Height	3.4 in (86 mm)
Depth	16.2 in (411 mm)
Net Weight	55.8 lbs (25.3 kg)
Rackmount Installation	Supported
Tower Installation	Supported - Optional
Environmental
Operating Temperature	32°F to 104°F (0°C to 40°C)
Operating Humidity	0–95%, Non-Condensing
Storage Temperature	5°F to 113°F (-15°C to 45°C)
Maximum Operating Altitude	10,000 ft (3,000 m)
Maximum Storage Altitude	50,000 ft (15,000 m)
AC Mode Thermal Dissipation	47.4 BTU/hr
Conformance
ENERGY STAR Certified	Yes
Active PFC Compatible	Yes
Product Certifications	UL 1778
	CSA C22.2 No. 107.3
	FCC Part 15 Class B
	VCCI Class B
Condition	New Batteries, Refurbished UPS
Warranty	1 Year Full Replacement Warranty Included
