Description
Details
Manufacturer: CyberPower

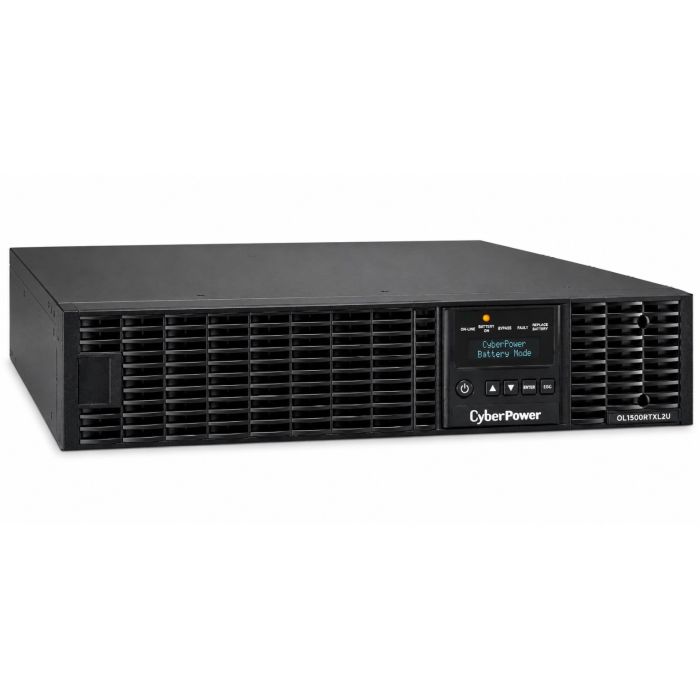

Model: CyberPower Smart App LCD UPS 1500VA 1350W, RM, 2U, 15A, 120V
Condition: New batteries, refurbished UPS
Part Number: OL1500RTXL2U
Maximum output: 1350W / 1500VA
Typical backup time at half load: 11 minutes (675 Watts)
Typical backup time at full load: 3.4 minutes (1350 Watts)
Warranty: 1 year full replacement warranty
CyberPower Smart App LCD UPS 1500VA 1350W RM 2U OL1500RTXL2U User's Manual
OL1500RTXL2U - CyberPower Smart App LCD UPS 1500VA Specifications:
General:
Energy Saving |
GreenPowerECO Mode Efficiency >95% |
Energy Star Certified |
Yes |
UPS Topology |
Online Double Conversion |
Battery:
Battery Quantity |
3 |
Battery Size |
12 V / 9 Ah |
Battery Type |
Sealed Lead-Acid Battery |
Extended Battery Module |
BP36V60ART2U |
Hot Swappable |
Yes |
Replacement Battery Cartridge |
RB1290X3L |
Replacement Battery Cartridge Quantity |
1 |
Runtime at Full Load |
3.4 min |
Runtime at Half Load |
11 min |
Smart Battery Management (SBM) Mode |
Yes |
Typical Recharge Time |
4 Hours (0% to 90% charged) |
Input:
Circuit Breaker |
15A |
||
Cold Start |
Yes |
||
Cord Length |
10 ft (3 m) |
||
Input Frequency Range |
40 Hz – 70 Hz |
||
Input Plug Type |
|
||
Input Power Factor |
0.99 |
||
Input Voltage Range |
60 VAC – 69 VAC for 0–60% Load 70 VAC – 79 VAC for 0–70% Load 80 VAC – 89 VAC for 0–80% Load 90 VAC – 95 VAC for 0–90% Load 96 VAC – 150 VAC for 0–100% Load
|
||
Nominal Input Voltage |
100 – 125 VAC |
Output:
Bypass |
Internal Bypass (Automatic and Manual) |
||
Crest Factor |
3:1 |
||
ECO Mode Voltage Regulation |
±10%, ±15% (Configurable) |
||
Harmonic Distortion |
< 3% at Linear Load < 5% at Non-Linear Load |
||
On Battery Frequency |
50/60 Hz ± 0.25Hz (auto-sensing or configurable) |
||
On Battery Voltage |
100/110/115/120/125 VAC ± 2% (configurable) |
||
On Battery Waveform |
Sine Wave |
||
Outlet Type |
|
||
Outlets – Total |
8 |
||
Output Power Factor |
0.9 |
||
Overload Protection |
Line Mode: 105% ~ 125% Load – 1 min |
||
Short Circuit Protection |
UPS Output Cut Off Immediately or Input Fuse / Circuit Breaker Protection |
||
Typical Transfer Time |
0 ms |
||
VA |
1500VA |
||
Watts |
1350W |
Surge Protection & Filtering:
EMI/RFI Filtration |
Yes |
Phone / Network Protection RJ11/RJ45 |
1-In / 1-Out (Combo) |
Surge Suppression (Joules) |
1780 J |
Management & Communications:
Audible Alarms |
Battery Mode |
HID Compliant USB Port |
Yes |
LCD |
Multifunction LCD |
LED Indicators |
Power On (White) |
Management Cable |
USB Cable |
Removable LCD Control Panel Option |
Yes – Requires DB26 cable (not included) |
Serial Port |
1 Dry Contact |
Software (Free Download) |
PowerPanel® Business |
Physical:
Form Factor |
Rackmount |
Material of Construction |
Metal |
Rack Height |
2U |
Dimensions:
Physical Dimensions – (WxHxD) (cm) |
43.18 x 8.89 x 42.93 (cm) |
Physical Dimensions – (WxHxD) (in) |
17 x 3.5 x 16.9 (in) |
Physical Dimensions – (WxHxD) (mm) |
432 x 89 x 429 (mm) |
Weight (kg) |
17.96 |
Weight (lb) |
39.6 |
Additional Info
Additional Info
Manufacturer | CyberPower |
---|---|
Form Factor | Rackmount |
Waveform in Battery Mode | Pure Sinewave |
Input Voltage | 120V AC |
Output (VA) | 1500VA |
Output Voltage | 120V AC |
PDU Total Outlets | No |
