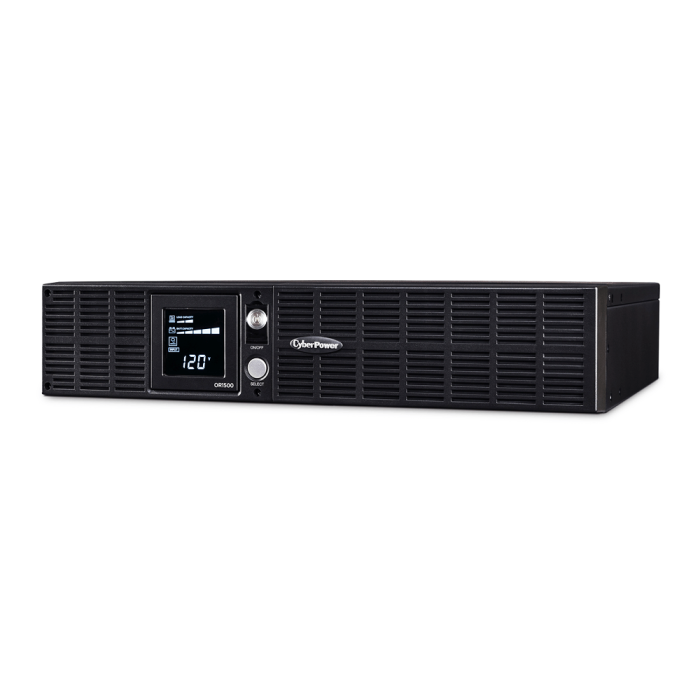

CyberPower Smart App LCD UPS 1500VA 900W RM 2U 120V OR1500LCDRT2U - Refurbished

Manufacturer: CyberPower
Model: CyberPower Smart App LCD UPS 1500VA 900W, RM 2U, 15A, 120V
Condition: New Batteries, Refurbished UPS
Part Number: OR1500LCDRT2U
Maximum Output: 900W / 1500VA
Typical Backup Time at Half Load: 18 Minutes (450 Watts)
Typical Backup Time at Full Load: 6 Minutes (900 Watts)
Input: NEMA 5-15P, 120V / 15A Circuit
Output: (8) NEMA 5-15R Battery & Surge Protected Outlets
Topology: Line-Interactive
Output Waveform: Simulated Sine Wave on Battery
Automatic Voltage Regulation (AVR): Full AVR Buck/Boost
Local Management: USB & Dual Serial Ports
Display: Multifunction LCD
Warranty: 1 Year Full Replacement Warranty

CyberPower Smart App LCD UPS 1500VA 900W OR1500LCDRT2U - User Manual

OR1500LCDRT2U - CyberPower Smart App LCD UPS 1500VA Specifications:

General:
UPS Topology	Line Interactive
Energy Saving	GreenPower UPS™ Bypass
ENERGY STAR® Qualified	Yes
Main
Manufacturer	CyberPower
Product Series	Smart App LCD
Model / Part Number	OR1500LCDRT2U
Product Type	Uninterruptible Power Supply (UPS)
Power Capacity	1500VA / 900W
UPS Topology	Line-Interactive
Energy-Saving Technology	GreenPower UPS Bypass
ENERGY STAR Qualified	Yes
Nominal Voltage	120V AC
Output Waveform	Simulated Sine Wave on Battery
Automatic Voltage Regulation	Full AVR Buck/Boost
Form Factor	Rack / Tower Convertible
Rack Height	2U
Input
Nominal Input Voltage	120V AC
Input Voltage Range	90–140V AC
Input Frequency Range	50/60 Hz ±3 Hz
Input Plug	NEMA 5-15P
Plug Style	Straight
Input Cord Length	10 ft
Input Phase	Single-Phase
Output
Output Capacity	1500VA
Output Power	900W
Nominal Output Voltage	120V AC
On-Battery Voltage	120V AC ±10%
On-Battery Frequency	50/60 Hz ±1%
On-Battery Waveform	Simulated Sine Wave
Output Receptacle Type	NEMA 5-15R
Total Output Receptacles	8
Battery & Surge Protected Outlets	(8) NEMA 5-15R
Overload Protection	Internal circuitry limiting / circuit breaker
Transfer Time	4 ms
Voltage Regulation
Automatic Voltage Regulation (AVR)	Yes
AVR Type	Full AVR Buck/Boost
AVR Function	Corrects low and high utility voltage without switching to battery operation
Batteries & Runtime
Battery Type	Sealed Lead-Acid
Battery Size	12V / 7Ah
Battery Quantity	4
Runtime at Half Load	18 minutes (450W)
Runtime at Full Load	6 minutes (900W)
Replacement Battery Cartridge	RB1270X4F
Replacement Battery Cartridge Quantity	1
User-Replaceable Battery	Yes
Typical Recharge Time	8 hours
Surge Protection & Filtering
Surge Suppression	1840 J
Phone / Ethernet Protection	RJ11 / RJ45, 1-In / 1-Out combo
Coaxial Protection	RG-6, 1-In / 1-Out
EMI/RFI Filtering	Yes
Communications & Management
Local Management	USB and Serial communication
Network Management	Optional via CyberPower RMCARD205 Network Management Card
Compatible Network Management Card	RMCARD205
Remote Network Management	SNMP / HTTP remote monitoring with optional RMCARD205
Management Software	PowerPanel Business Edition
Management Interfaces	HID-Compliant USB, Serial
Serial Communication	(2) Serial interfaces
Management Cables	USB Cable, Serial Cable, Phone Line
Remote Monitoring	UPS status, power conditions and event monitoring with optional RMCARD205
Automatic Shutdown	Supported through PowerPanel Business Edition
User Interface, Alerts & Controls
Display	Multifunction LCD
LCD Monitoring	Load level, runtime, battery level, input voltage, output voltage and output frequency
LCD Operating Status	AVR in use, battery operation, overload and silent mode
Audible Alarms	On Battery, Low Battery, Overload, Battery Missing and Fault
Power Management Features
GreenPower UPS Bypass	Energy-saving bypass technology
Automatic Voltage Regulation (AVR)	Full AVR Buck/Boost voltage correction without using battery power
PowerPanel Business Edition	UPS monitoring and automatic system shutdown
Network Management Capability	Optional SNMP / HTTP remote monitoring through RMCARD205
Power Failure Protection	Automatically transfers connected equipment to battery power during utility failure
Overload Protection	Internal current-limiting circuitry and circuit breaker
Physical
Form Factor	Rack / Tower
Rack / Tower Convertible	Yes
Rack Height	2U
Dimensions (W × H × D)	17.25 × 3.5 × 15.75 in
Weight	48.4 lb
Environmental
Operating Temperature	32°F to 95°F (0°C to 35°C)
Operating Humidity	0–95%, non-condensing
Conformance
Safety Certifications	UL1778, cUL, cUL 107.1
EMC Compliance	FCC DOC Class B
Environmental Compliance	RoHS Compliant
ENERGY STAR Qualified	Yes
Condition & Warranty
Condition	New Batteries, Refurbished UPS
Warranty	1 Year Full Replacement Warranty
