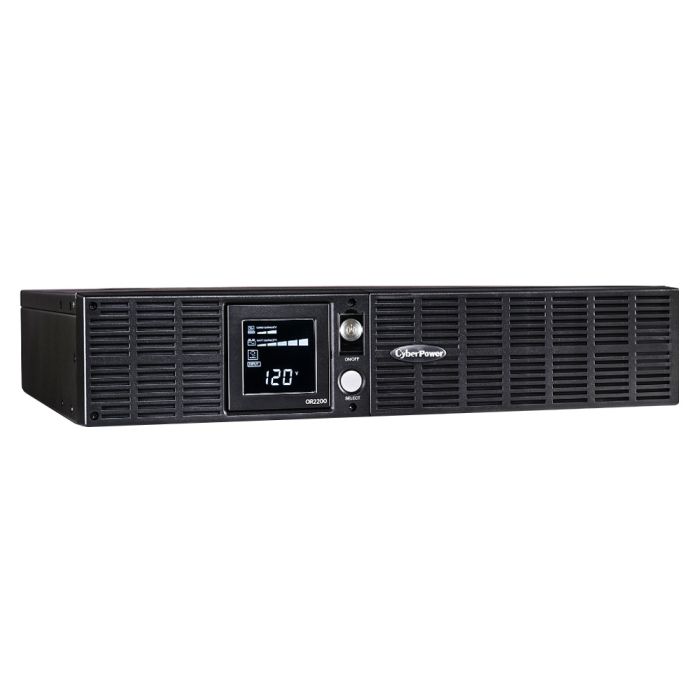

CyberPower Smart App LCD UPS 2kVA 1320W 120V Output:(8)5-20R, OR2200LCDRT2U - Refurbished

Manufacturer: CyberPower
Model: CyberPower Smart App LCD UPS 2200VA 1320W, RM, 2U, 20A, 120V
Condition: New Batteries, Refurbished UPS
Part Number: OR2200LCDRT2U
Maximum Output: 1320W / 2000VA
Typical Backup Time at Half Load: 13 Minutes (660 Watts)
Typical Backup Time at Full Load: 5 Minutes (1320 Watts)
Input: NEMA 5-20P, 120V / 20A
Output: (8) NEMA 5-20R Battery & Surge Protected Outlets
Topology: Line-Interactive
Output Waveform: Simulated Sine Wave on Battery
Automatic Voltage Regulation (AVR): Yes
Local Management: USB, Serial & Dry Contact
Display: Multifunction LCD
Warranty: 1 Year Full Replacement Warranty

CyberPower Smart App LCD UPS 2000VA 1320W RM 2U OR2200LCDRT2U - User's Manual

OR2200LCDRT2U - CyberPower Smart App LCD UPS 2200VA Specifications:

General:
UPS Topology	Line Interactive
Energy Saving	GreenPower UPS™ Bypass
ENERGY STAR® Qualified	Yes
Main
Manufacturer	CyberPower
Product Series	Smart App LCD
Part Number	OR2200LCDRT2U
Power Capacity	2000VA / 1320W
UPS Topology	Line-Interactive
Nominal Voltage	120V AC
Output Waveform	Simulated Sine Wave on Battery
Energy-Saving Technology	GreenPower UPS Bypass Technology
Primary Form Factor	Rack / Tower
Rack Height	2U
Input
Nominal Input Voltage	120V AC
Input Voltage Range	Automatic Voltage Regulation supports correction of abnormal utility voltage
Input Frequency	50/60 Hz ±3 Hz, auto-sensing
Input Plug	NEMA 5-20P
Input Circuit Breaker	20A
Recommended Branch Circuit Protection	20A maximum
Input Phase	Single-Phase
Input Cord Length	10 ft (3.0 m)
Plug Style	Right Angle
Output
Output Capacity	2000VA
Output Watt Capacity	1320W
Nominal Output Voltage	120V AC
On-Battery Output Voltage	120V AC ±10%
On-Battery Frequency	50/60 Hz ±1%
On-Battery Waveform	Simulated Sine Wave
Total Output Receptacles	8
Output Connections	(8) NEMA 5-20R
Battery & Surge Protected Outlets	8
Overload Protection	Internal circuitry limiting and resettable circuit breaker
Typical Transfer Time	10 ms
Voltage Regulation
Automatic Voltage Regulation	Yes
AVR Function	Corrects abnormal utility voltage without using battery power
Low-Voltage Correction	Automatic boost
Regulated Output	Maintains safe 110V / 120V output during AVR operation
Batteries & Runtime
Battery Type	Sealed Maintenance-Free Lead-Acid
Battery Configuration	(4) 12V / 9Ah batteries
Typical Runtime at Half Load	13 minutes (660W)
Typical Runtime at Full Load	5 minutes (1320W)
Replacement Battery Cartridge	RB1290X4L
Replacement Battery Cartridge Quantity	1
User-Replaceable Battery	Yes
Battery Access	Front-accessible battery compartment
Typical Recharge Time	8 hours from total discharge
Typical Battery Life	3–6 years, depending on discharge/recharge cycles
Extended Runtime	No
Communications & Management
Local Management	Yes
Network Management	Optional
Network Management Slot	SNMP/HTTP Network Slot
Optional Network Card	Compatible optional CyberPower RMCARD
Network Monitoring	Remote UPS monitoring and management supported with compatible optional RMCARD
USB Interface	Yes
Primary Serial Port	Yes
Dry Contact Interface	Yes
Primary Serial Function	UPS-to-computer monitoring and communication
Dry Contact Function	Provides basic UPS status information to compatible equipment
Multi-System Shutdown	USB and Primary Serial interfaces support simultaneous shutdown of two computer systems
Management Software	PowerPanel Business Edition
Software Functions	UPS monitoring, configuration and automatic computer shutdown during utility power loss
Communication Protection	RJ11/RJ45 modem, fax, telephone and network/Ethernet protection
Management Cables	USB cable, DB9 serial cable and telephone cable
User Interface, Alerts & Controls
Display	High-Resolution Multifunction LCD
LCD Monitoring	Displays input voltage, output voltage, estimated runtime, battery capacity and output load
LCD Status	Displays Normal, Battery, AVR, Silent Mode, Overload and Fault conditions
Battery Capacity Meter	Displays approximate battery charge in 20% increments
Load Capacity Meter	Displays approximate output load in 20% increments
Power Indicator	LED Power On indicator
Wiring Fault Indicator	Dedicated red site-wiring fault LED
Audible Alarms	Battery operation, low battery, overload and fault conditions
Silent Mode	Yes
LCD Function Control	Front-panel function selection switch
Surge Protection & Filtering
Surge Suppression	1840 J
EMI/RFI Filtration	Yes
RJ11/RJ45 Protection	1-In / 1-Out
Coaxial RG6 Protection	1-In / 1-Out
Physical
Form Factor	Rack / Tower
Rack Height	2U
Construction	Metal
Dimensions (W × H × D)	17.2 × 3.5 × 15.7 in
Net Weight	52.7 lb (23.9 kg)
Rack Mount Brackets	Supported / included
Tower Stands	Supported / Not included
Environmental
Operating Temperature	32°F to 104°F (0°C to 40°C)
Operating Relative Humidity	0–90%, non-condensing
Conformance
Safety Approvals	UL 1778 / CSA C22.2 No. 107
FCC Compliance	FCC DOC Class B
Canadian Compliance	CAN ICES-3 (B) / NMB-3(B)
Condition & Warranty
Condition	New Batteries, Refurbished UPS
Warranty	1 Year Full Replacement Warranty
