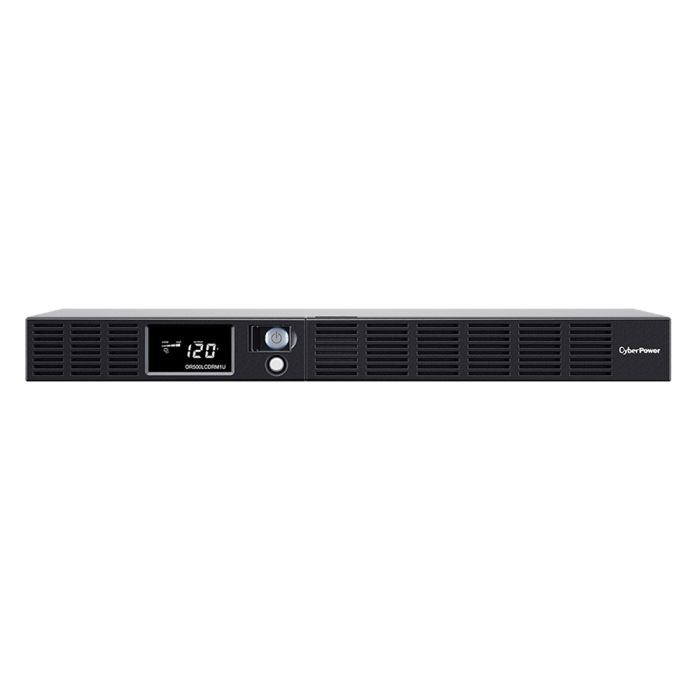

CyberPower Smart App LCD UPS 500VA 300W 120V Output: (6)5-15R, OR500LCDRM1U - Refurbished
CyberPower Smart App LCD UPS 500VA 300W RM 1U 120V
Model: OR500LCDRM1U
Input: NEMA 5-15P (120V - 15A)
Output: (6) NEMA 5-15R
Line-Interactive UPS - Simulated Sinewave Output
New batteries, Refurbished UPS
1 Year Warranty Included
$299.99
In stock
Manufacturer: CyberPower
Model:Â CyberPower Smart App LCD UPS 500VA, RM, 1U, 120V
Condition: New batteries, refurbished UPS
Part Number: OR500LCDRM1U
Maximum output: 300WÂ /Â 500VA
Typical backup time at half load: 12 minutes (150 Watts)
Typical backup time at full load: 3 minutes (300 Watts)
Warranty: 1 year full replacement warranty
CyberPower Smart App LCD UPS 500VA 300W RM 1U OR500LCDRM1U - User ManualÂ
Â
OR500LCDRM1U - CyberPower Smart App LCD UPS 500VA Specifications:
General:
|
UPS Topology |
Line Interactive |
|
Energy Star Certified |
Yes |
|
Energy Saving |
GreenPower UPSâ„¢ Bypass |
Input:
|
Nominal Input Voltage |
120VAC |
||
|
Input Voltage Range |
90-140VAC |
||
|
Adjustable Voltage Range |
88-144VAC |
||
|
Frequency Range |
57-63Hz |
||
|
Plug Type |
|
||
|
Plug Style |
Straight |
||
|
Cord Length |
10 ft |
Output:
|
VA |
500 |
||
|
Watts |
300 |
||
|
On Battery Voltage |
120VAC ± 10% |
||
|
On Battery Frequency |
60 Hz ± 1% |
||
|
On Battery Waveform |
Simulated Sine Wave |
||
|
Outlet Type |
|
||
|
Outlets - Total |
6 |
||
|
Outlets - Battery & Surge Protected |
4 |
||
|
Outlets - Surge-Only Protected |
2 |
||
|
Automatic Voltage Regulation |
Yes |
||
|
Transfer Time |
Typical 8ms |
||
|
Overload Protection |
Internal Circuitry Limiting, Circuit Breaker |
Battery:
|
Battery Type |
Sealed Lead-Acid |
|
Battery Quantity |
2 |
|
Battery Size |
6V/7Ah |
|
Runtime at Half Load (min) |
12 |
|
Runtime at Full Load (min) |
3 |
|
User Replaceable |
Yes |
|
Replacement Battery Cartridge |
RB0670X2 |
|
Replacement Battery Cartridge Quantity |
1 |
|
Hot Swappable |
Yes |
|
Typical Recharge Time |
8 Hours |
Surge Protection & Filtering:
|
Network Protection RJ45 |
1-in, 1-Out (10/100/1000) |
|
EMI/RFI Filtration |
Yes |
|
Surge Suppression (Joules) |
1150 |
Management & Communications:
|
Multifunction LCD Panel |
Yes |
|
Audible Alarms |
On Battery, Low Battery, Overload, Fault |
|
Dry Contact Port |
Yes |
|
HID Compliant USB Port |
Yes |
|
Management Cable |
USB Cable |
|
SNMP / HTTP Remote Monitoring |
Yes, with optional RMCARD205 |
|
Software |
PowerPanel® Business |
Physical:
|
Form Factor |
Rackmount
|
|
Rack Size |
1U |
|
Physical Dimensions - (WxHxD) (in) |
17.05 x 1.75 x 9.25 |
|
Physical Dimensions - (WxHxD) (mm) |
433 x 44 x 235 |
|
Weight (lb) |
18 lbs |
|
Weight (kg) |
8.16 |
