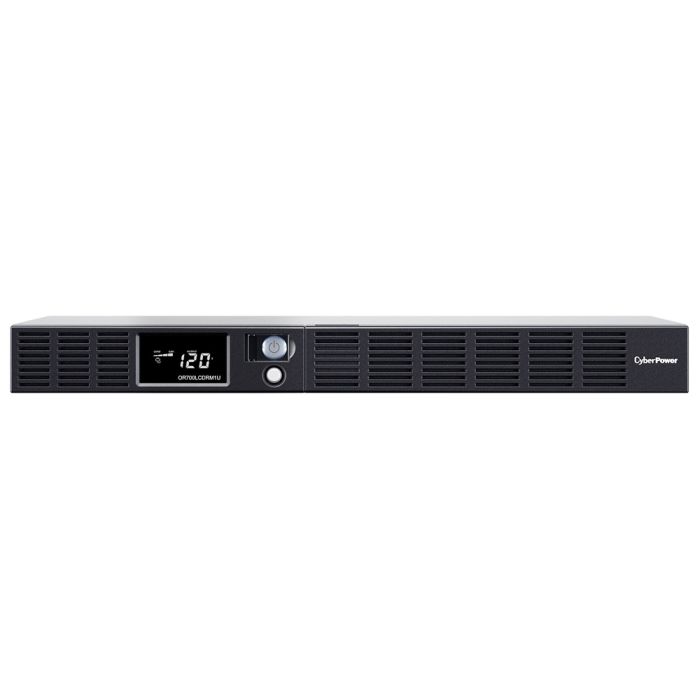

CyberPower Smart App LCD UPS 700VA 400W 120V Output: (6)5-15R, OR700LCDRM1U - Refurbished
CyberPower Smart App LCD UPS 700VA 400W RM 1U
Model: OR700LCDRM1U
Input: NEMA 5-15P (120V - 15A)
Output: (6) NEMA 5-15R
Line-Interactive UPS - Simulated Sinewave Output
New batteries, Refurbished UPS
1 Year Warranty Included
$349.99
In stock
Manufacturer: CyberPower
Model:Â CyberPower Smart App LCD UPS 700VA 400W, RM, 1U, 15A, 120V, New Batteries, Refurbished UPS
Condition: New batteries, refurbished UPS
Part Number: OR700LCDRM1U
Maximum output: 400WÂ /Â 700VA
Typical backup time at half load: 11 minutes (200 Watts)
Typical backup time at full load: 3 minutes (400 Watts)
Warranty: 1 year full replacement warranty
CyberPower Smart App LCD UPS 700VA 400W RM 1U OR700LCDRM1U - User's Manual
Â
OR700LCDRM1U - CyberPower Smart App LCD UPS 700VA Specifications:
General:
|
Energy Saving |
GreenPower UPSâ„¢ Bypass Technology |
|
Energy Star Certified |
Yes |
|
UPS Topology |
Line Interactive |
Input:
|
Adjustable Voltage Range |
88 – 144 VAC |
||
|
Circuit Breaker |
15A |
||
|
Cord Length |
10 ft (3 m) |
||
|
Input Frequency Range |
57 Hz – 63 Hz |
||
|
Input Plug Type |
|
||
|
Input Voltage Range |
90 VAC – 140 VAC |
||
|
Nominal Input Voltage |
120 VAC |
||
|
Plug Style |
Straight |
Output:
|
Automatic Voltage Regulation |
Single Boost |
||
|
On Battery Frequency |
60 Hz ± 1% |
||
|
On Battery Voltage |
120 VAC ± 10% |
||
|
On Battery Waveform |
Simulated Sine Wave |
||
|
Outlet Type |
|
||
|
Outlets – Battery & Surge Protected |
4 |
||
|
Outlets – Surge-Only Protected |
2 |
||
|
Outlets – Total |
6 |
||
|
Output Power Factor |
0.6 |
||
|
Overload Protection |
Internal Circuitry Limiting |
||
|
Typical Transfer Time |
8 ms |
||
|
VA |
700 VA |
||
|
Watts |
400 W |
Battery:
|
Battery Quantity |
2 |
|
Battery Size |
6 V / 8 Ah |
|
Battery Type |
Sealed Lead-Acid Battery |
|
Hot Swappable |
Yes |
|
Replacement Battery Cartridge |
RB0690X2 |
|
Replacement Battery Cartridge Quantity |
1 |
|
Runtime at Full Load |
3 min |
|
Runtime at Half Load |
11 min |
|
Typical Recharge Time |
8 Hours |
|
User Replaceable Battery |
Yes |
Surge Protection & Filtering:
|
EMI/RFI Filtration |
Yes |
|
Network Protection RJ45 |
1-in / 1-Out (10/100/1000) |
|
Surge Suppression (Joules) |
1150 J |
Management & Communications:
|
Audible Alarms |
Battery Mode |
|
HID Compliant USB Port |
Yes |
|
LCD |
Multifunction LCD |
|
LED Indicators |
Power On |
|
Management Cable |
USB Cable |
|
SNMP / HTTP Remote Monitoring |
Yes – with optional RMCARD205 (Not included) |
|
Serial Port |
1 Dry Contact |
|
Software (Free Download) |
PowerPanel® Business |
Physical:
|
Form Factor |
Rackmount |
|
Material of Construction |
Metal |
|
Rack Height |
1U |
Dimensions:
|
Physical Dimensions – (WxHxD) (cm) |
43.31 x 4.45 x 23.5 (cm) |
|
Physical Dimensions – (WxHxD) (in) |
17.05 x 1.75 x 9.25 (in) |
|
Physical Dimensions – (WxHxD) (mm) |
433 x 44 x 235 (mm) |
|
Weight (kg) |
8.39 |
|
Weight (lb) |
18.5 |
