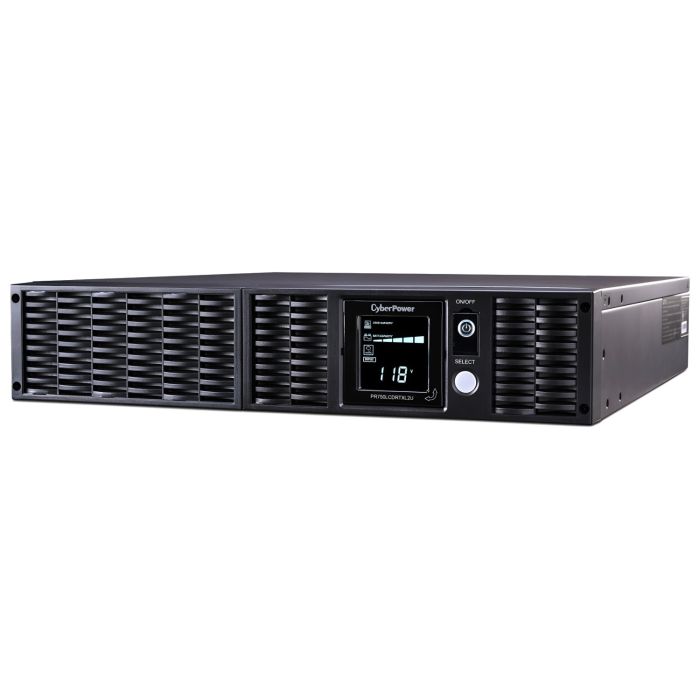

CyberPower Smart App 750VA 675W RM 2U 120V Output:(8)5-15R, PR750LCDRTXL2U - Refurbished

Manufacturer: CyberPower
Model: CyberPower Smart App Sinewave UPS 750VA 675W, RM, 2U, 15A, 120V
Condition: New Batteries, Refurbished UPS
Part Number: PR750LCDRTXL2U
Maximum Output: 750VA / 675W
Typical Backup Time at Half Load: 30 Minutes (337.5 Watts)
Typical Backup Time at Full Load: 13 Minutes (675 Watts)
Input: NEMA 5-15P, 120V / 15A Circuit
Output: (8) NEMA 5-15R Battery & Surge Protected Outlets
Topology: Line-Interactive
Output Waveform: Pure Sine Wave
Automatic Voltage Regulation (AVR): Full Buck/Boost AVR
Extended Runtime: Yes - BP48V45ART2U External Battery Pack Supported
Local Management: USB, RS-232, Dry Contact & EPO
Display: Multifunction LCD Status & Configuration Display
Warranty: 1 Year Full Replacement Warranty

CyberPower Smart App Sinewave UPS 750VA 675W RM 2U 15A - User's Manual

PR750LCDRTXL2U - CyberPower Smart App Sinewave UPS 750VA Specifications:

General:
UPS Topology	Line Interactive
Energy Saving	GreenPower UPS™ Bypass Technology
Main
Manufacturer	CyberPower
Product Series	Smart App Sinewave
Model / Part Number	PR750LCDRTXL2U
Product Type	Uninterruptible Power Supply (UPS)
Power Capacity	750VA / 675W
Rated Power Factor	0.9
UPS Topology	Line-Interactive
Energy-Saving Technology	GreenPower UPS Technology
Nominal Voltage	120V AC
Output Waveform	Pure Sine Wave
Automatic Voltage Regulation	Full Buck/Boost AVR
Extended Runtime	Yes
Form Factor	Rackmount
Rack Height	2U
Input
Nominal Input Voltage	120V AC
Input Voltage Range	80–150V AC
Input Frequency Range	50/60 Hz ±3 Hz, auto-sensing
Input Plug	NEMA 5-15P
Plug Style	Right Angle, 45° Offset Right
Input Cord Length	10 ft
Input Phase	Single-Phase
Branch Circuit Protection	20A maximum
Output
Output Capacity	750VA
Output Power	675W
Nominal Output Voltage	120V AC
On-Battery Voltage	120V AC ±5%
On-Battery Frequency	50/60 Hz ±1%
On-Battery Waveform	Pure Sine Wave
Output Receptacle Type	NEMA 5-15R
Total Output Receptacles	8
Battery & Surge Protected Outlets	(8) NEMA 5-15R
Critical Load Outlets	4
Critical / Non-Critical Load Management	Non-critical outlets can be disconnected during overload or low-battery conditions to preserve runtime for critical loads
Software Outlet Control	Non-critical outlets can be manually controlled through the UPS management software
Surge-Only Outlets	0
Transfer Time	4 ms typical
Overload Protection	Circuit breaker on utility power; internal current limiting on battery
Voltage Regulation
Automatic Voltage Regulation (AVR)	Yes
AVR Regulation	Boost 1 +30%, Boost 2 +14%, Buck -12%
AVR Function	Automatically increases low voltage or decreases high voltage without switching to battery power
Battery Transfer Range	Battery power is used when input voltage falls below approximately 80V or rises above approximately 150V
Batteries & Runtime
Battery Type	Sealed Lead-Acid
Internal Battery Configuration	(4) 12V / 7Ah batteries
Battery Quantity	4
Runtime at Half Load	30 minutes (337.5W)
Runtime at Full Load	13 minutes (675W)
Replacement Battery Cartridge	RB1270X4F
User-Replaceable Battery	Yes
Hot-Swappable Battery	Yes
Typical Recharge Time	Less than 6 hours to 90%
Extended Runtime Capability	Yes
External Battery Pack	BP48V45ART2U
External Battery Pack Connector	Dedicated external battery pack connector
Battery Pack Configuration	LCD setup supports configuration of connected battery pack quantity for runtime estimation
Auto-Charging	Battery automatically charges whenever the UPS is connected to AC power
Auto-Restart	Yes
Surge Protection & Filtering
Surge Suppression	2060 J
Lightning / Surge Protection	Yes
EMI/RFI Filtering	Yes
Communications & Management
Local Management	USB, RS-232 Serial and Dry Contact communication
Network Management	Optional through SNMP/HTTP Network Management Card
Network Management Slot	SNMP/HTTP network expansion slot
Remote Network Management	Remote UPS monitoring and control supported with compatible optional RMCARD
USB Interface	Built-in USB interface
Serial Communication	(1) RS-232 Serial Port
Dry Contact Interface	(1) Dry Contact / Contact Closure Port
EPO Interface	Emergency Power Off (EPO) port for connection to an external EPO switch
Management Software	PowerPanel Business Edition
Software Management	UPS monitoring, power-event management and automatic operating-system shutdown
Multi-Computer Shutdown	PowerPanel Business Edition can signal configured secondary systems to shut down during a power failure
USB / Serial Operation	USB and Serial communication cannot be used simultaneously
User Interface, Alerts & Controls
Display	Multifunction LCD
LCD Monitoring	Input voltage, output voltage, output frequency, estimated runtime, load capacity, battery capacity and internal temperature
LCD Operating Status	Normal operation, battery operation, AVR operation, overload, fault and silent mode
Battery Capacity Meter	Displays approximate remaining battery charge in 20% increments
Load Capacity Meter	Displays approximate output load in 20% increments
LCD Setup Functions	Sensitivity, external battery pack quantity, battery lifetime and firmware version
Sensitivity Adjustment	High / Low UPS sensitivity can be configured for local utility power conditions
LCD Self-Test Control	Manual self-test can be initiated through the LCD Display control
LCD Backlight	Automatically turns off after approximately 30 seconds of inactivity
Silent Mode	Configurable through the LCD interface
Power Indicator	Power On indicator
Wiring Fault Indicator	Warns of AC receptacle wiring problems such as bad ground or reversed wiring
Audible Alarms	On Battery, Low Battery and Overload
Power Management Features
GreenPower UPS Technology	Energy-saving circuitry bypasses the AVR transformer when utility power is normal to improve efficiency and reduce heat
Automatic Voltage Regulation	Buck/Boost voltage correction without unnecessary battery operation
Critical Load Management	Preserves power for critical outlets by disconnecting non-critical loads during overload or low-battery conditions
Software-Controlled Outlets	Non-critical outlets can be controlled through the management software
Automatic System Shutdown	Supported through PowerPanel Business Edition
Automatic Battery Charging	Yes
Automatic Restart	Yes
Manual Self-Test	Yes
Emergency Power Off	Yes
Physical
Form Factor	Rackmount
Rack Height	2U
Dimensions	17.1 × 15.7 × 3.5 in
Weight	53 lb
Grounding	Ground stud provided
Environmental
Operating Temperature	32°F to 104°F (0°C to 40°C)
Operating Relative Humidity	0–95%, non-condensing
Maximum Operating Elevation	10,000 ft (3,000 m)
Conformance
Safety Approvals	UL1778, cUL107, CSA
EMC Compliance	FCC Part 15 Class A
Condition & Warranty
Condition	New Batteries, Refurbished UPS
Warranty	1 Year Full Replacement Warranty
