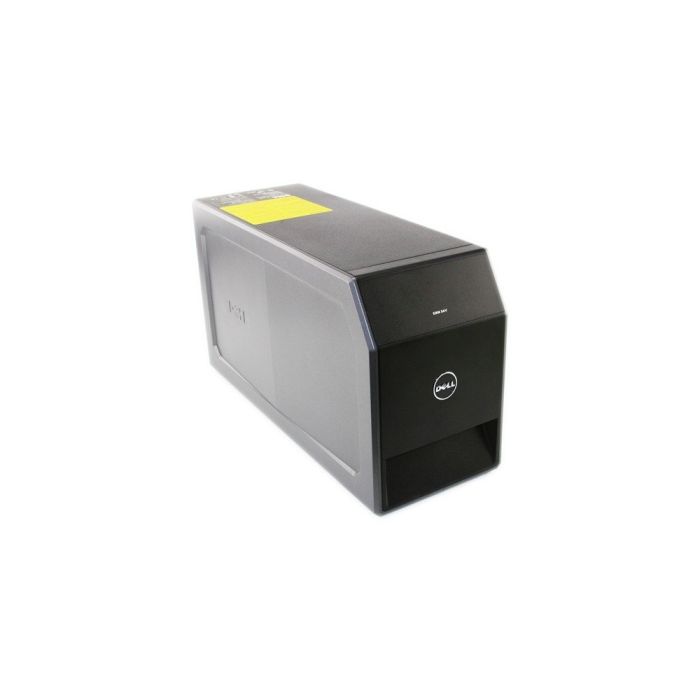

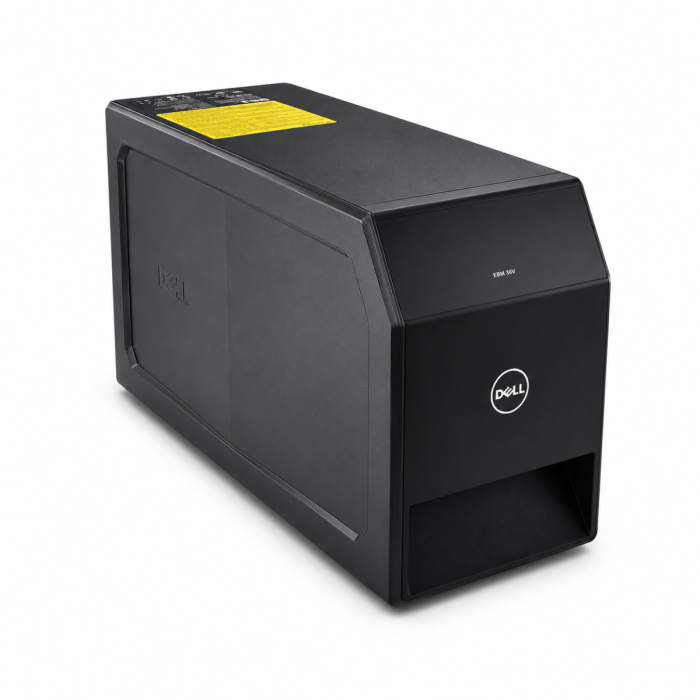

Dell Tower UPS 36V 30A Extended Runtime Battery Module K806N - Refurbished
Dell 1000W Tower UPS Extended Battery Module K806N 36V 30A
Model: K806N-EBM
Refurbished with New Batteries
1 Year Extended Warranty Included
$399.99
In stock
Manufacturer:Â Dell
Model: Dell 1000W Tower UPS Extended Battery Module (EBM)
Condition:Â Refurbished with New Batteries
Part Number: K806N
Compatible With: Dell Tower UPS 1000W & 1920W / 1500W Models
Warranty: 1 Year Full Replacement Warranty, Additional Warranty Available
Description: The Dell K806N Extended Battery Module (EBM) is designed to significantly extend the runtime of compatible Dell Tower UPS systems, providing additional backup power for servers, network switches, storage systems, VoIP equipment, security devices, and other mission-critical applications. Featuring maintenance-free sealed lead-acid (VRLA) batteries, the K806N connects directly to the dedicated EBM port on supported Dell UPS models for seamless integration and automatic runtime expansion. Professionally refurbished with brand-new batteries, each unit is thoroughly tested to ensure reliable performance and long service life. The Dell K806N is backed by our 1-Year Full Replacement Warranty, with extended warranty options of up to 3 years available.
Â
Â
Dell K806N Extended Battery Module (EBM) - User's Manual
K806N-EBM Specifications:
| General | Â |
| Part Number | K806N |
| Manufacturer | Dell |
| Product Type | External Battery Module (EBM) |
| Compatible UPS Models | Dell Tower UPS 1000W, Dell Tower UPS 1500W (100V), Dell Tower UPS 1920W (120V) |
| Battery Technology | Sealed Lead-Acid (VRLA) |
| Battery Configuration | Internal Battery Pack |
| Battery Type | Maintenance-Free |
| Runtime Expansion | Extends UPS Backup Runtime |
| Maximum Supported EBMs | One External Battery Module per Compatible UPS |
| UPS Connection | Dedicated EBM Connector |
| Automatic UPS Detection | Yes |
| User Configuration | Automatic |
| Cooling | Passive (Fanless) |
| Application | Extends backup runtime for compatible Dell Tower UPS systems protecting servers, storage, network switches, VoIP systems, security equipment, and other mission-critical devices. |
| Color | Black |
| Â | Â |
| Battery | Â |
| Battery Chemistry | Valve-Regulated Lead-Acid (VRLA) |
| Battery Style | Sealed Maintenance-Free |
| Battery Replacement | User Replaceable |
| Battery Charging | Automatically Controlled by the UPS |
| Battery Monitoring | Managed by the Connected UPS |
| Recharge Time | Automatically Managed by the UPS |
| Battery Protection | Integrated UPS Charging and Protection System |
| Â | Â |
| Compatibility | Â |
| Supported UPS Models | Dell Tower UPS 1000WDell Tower UPS 1500W (100V)Dell Tower UPS 1920W (120V) |
| Connection Type | Dedicated External Battery Connector |
| Runtime Detection | Automatic |
| Maximum Expansion | One External Battery Module |
| Installation | Â |
| Â | Â |
| Installation Type | Plug-and-Play |
| Configuration Required | None |
| Mounting Style | Tower |
| Recommended Installation | Connect with UPS Powered Off |
| Â | Â |
| Physical | Â |
| Form Factor | Tower |
| Height | 6.7 in (170 mm) |
| Width | 9.8 in (250 mm) |
| Depth | 17.7 in (450 mm) |
| Net Weight | 40.3 lbs (18.3 kg) |
| Shipping Weight | Approximately 44 lbs (20 kg) |
| Color | Black |
| Â | Â |
| Environmental | Â |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Storage Temperature | 5°F to 113°F (-15°C to 45°C) |
| Operating Humidity | 0–95% Non-Condensing |
| Storage Humidity | 0–95% Non-Condensing |
| Operating Altitude | Up to 10,000 ft (3,048 m) |
| Â | Â |
| Warranty | Â |
| Condition | Refurbished with New Batteries |
| Warranty | 1 Year Full Replacement Warranty Included |
| Extended Warranty | Available up to 3 Years |
