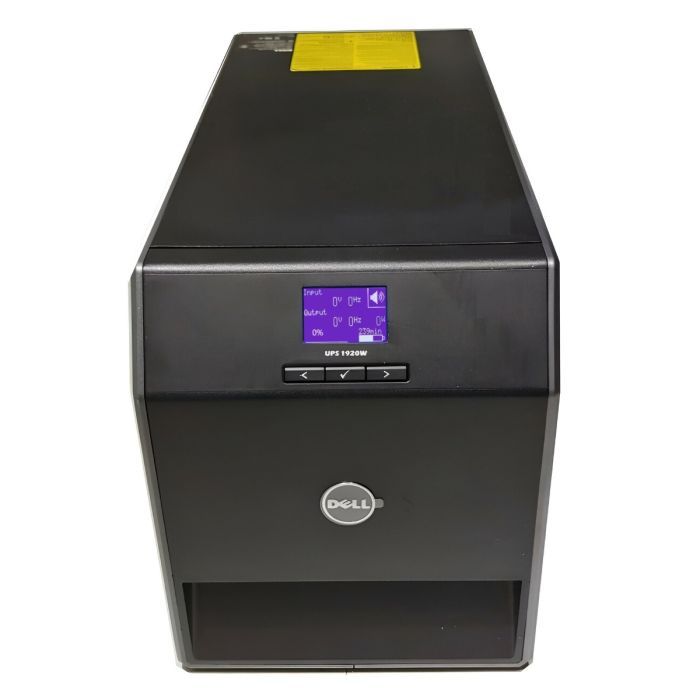

Main image Click to view image in fullscreen Dell J716N 2200VA 1920W Tower 120V 20A UPS Output: (8)5-15R, (2)5-20R - Refurbished

Dell J716N 2200VA 1920W Tower 120V 20A UPS Output: (8)5-15R, (2)5-20R - Refurbished

Dell J716N 2200VA 1920W Tower UPS 120V 20A
Model: J716N
Input: C19, NEMA 5-20P (120V - 20A)
Output: (8) 5-15R, (2) 5-20R
New batteries, Refurbished UPS
1 Year Warranty Included

Extended Warranty

1 Year Included

2 Year + $110.00

3 Year + $192.50

In stock

Quantity

Manufacturer: Dell
Model: Dell 2200VA 1920W J716N Tower UPS - 20A, 120V
Condition: Refurbished with New Batteries
Part Number: J716N
Output Waveform: Sine wave
Warranty: 1 Year Full Replacement Warranty

J716N Specifications:

Input:

Nominal Voltage	100/120V
Voltage Range	84–150V auto-sensing
Nominal Frequency	50/60 Hz auto-sensing, ±3 Hz
Efficiency (Normal mode)	>95%
Noise Filtering	Full-time EMI/RFI filtering
Connections 1920/1500W	IEC 320-C20 input connector, 20A

Output:

Power Levels (rated at nominal inputs)	1920W (1500W for 100V)
Regulation (Normal mode)	100V: 92–108V 110V: 100–121V 120V: 106–132V
Regulation (Battery mode), Nominal Voltage ±5%	Same as line mode
Voltage Waveform	Sine wave
Output Receptacles	(8) 5-15/5-20R; 10A (2) 5-15/5-20R; 10A

Battery Configuration:

Battery	(6) 12V, 9 Ah internal batteries
Voltage	72 Vdc internal
Fuses	(2) 30A fuses
Type	Sealed, maintenance‐free, valve‐regulated, lead‐acid
Charging Internal batteries	Approximately 4 hours to 90% usable capacity at nominal line and no supplementary power supply load
Monitoring	Advanced monitoring for earlier failure detection and warning
Battery Runtimes	5 minutes at full load/14 minutes at half load
