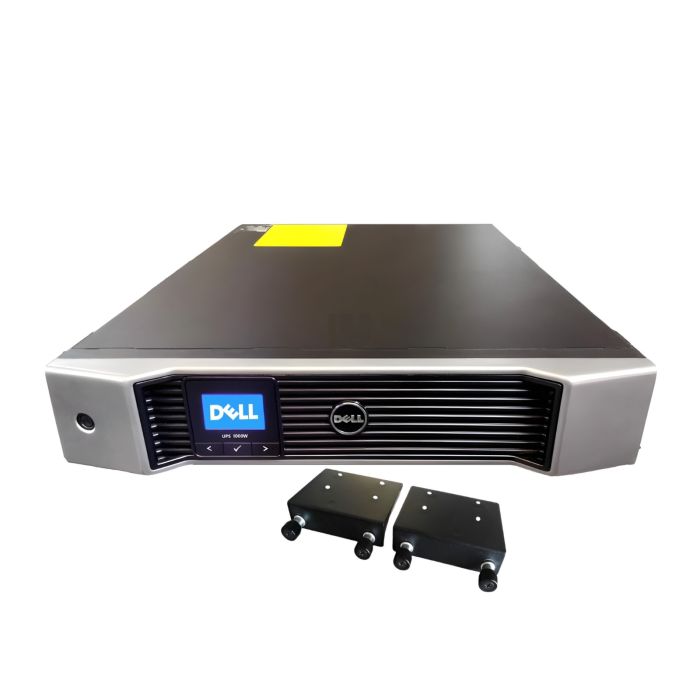

Dell K792N UPS 2200VA 1920W RM 2U 120V 20A Output: (6)5-20R, (2)C19,(2)C13 - Refurbished

Dell UPS 2200VA 1920W RM 2U K792N
Model: K792N
Input: IEC 320-C20 (20A - 120V)
(6) NEMA 5-15/5-20R, (2) IEC 320-C19, (2) IEC 320-C13

Line-Interactive UPS - Pure Sine Wave Output
New batteries, Refurbished UPS
1 Year Full Replacement Warranty Included

Back Order

Manufacturer: Dell
Model: Dell 2200VA 1920W RM 2U 120V 20A
Condition: Refurbished with New Batteries
Part Number: K792N

UPS Topology: Line-Interactive

Maximum Output: 1920W / 2200VA
Output Waveform: Pure Sine Wave
Warranty: 1 Year Full Replacement Warranty

Description: The Dell K792N is a 2200VA / 1920W line-interactive UPS designed to provide reliable power protection for servers, network equipment, telecommunications systems, storage devices, and other critical IT infrastructure. Featuring pure sine wave output, automatic voltage regulation (AVR), USB and RS-232 communications, optional network management support, and expandable runtime through an optional External Battery Module (EBM), the K792N delivers dependable backup power and advanced power conditioning. Refurbished with new batteries and backed by a 1 Year Full Replacement Warranty.





Dell K792N UPS 2200VA 1920W RM 2U 120V 20A - User Manual






Dell K792N UPS Dell 2200VA 1920W Specifications:

Main
UPS Topology Line-Interactive
Rated Power in VA 2200VA
Rated Power in Watts 1920W
Maximum Configurable Power 1920W
Output Waveform Pure Sine Wave
Form Factor Rackmount
Rack Height 2U
Nominal Input Voltage 100V / 120V
Nominal Output Voltage 100V / 110V / 120V

Input
Nominal Input Voltage 100V / 120V
Input Frequency 50/60 Hz Auto-Sensing
Input Connection Type IEC 320-C20
Input Current Rating 20A
Input Voltage Range 100V - 120V
Power Cord Included Yes

Output
Output Power Capacity 1920W
Output Frequency 50/60 Hz Auto-Sensing, ±3 Hz
Waveform Type Pure Sine Wave
Nominal Output Voltage 100V / 110V / 120V
Output Connections (6) NEMA 5-15R / 5-20R
  (2) IEC 320-C19
  (2) IEC 320-C13
Load Segment Control Yes

Batteries & Runtime
Battery Type Sealed Maintenance-Free VRLA Lead-Acid
Hot-Swappable Batteries Yes
User Replaceable Batteries Yes
Extendable Runtime Yes
External Battery Module Support Optional
External Battery Module Included No
Maximum External Battery Modules 1
Recharge Time Less Than 4 Hours to 90% Capacity
Battery Configuration Internal Battery Pack

Communications & Management
LCD Display Graphical LCD Display
USB Interface Yes
RS-232 Serial Port Yes
Network Management Card Optional
Available Communication Bay 1
Remote Management Support Yes (Optional Network Card)
UPS Monitoring Software Supported
Remote Emergency Power Off (REPO) Yes
Event Logging Yes
Firmware Upgradeable Yes
Alarm Notifications Yes
Load Segment Management Yes

Power Protection & Conditioning
Automatic Voltage Regulation (AVR) Yes
Surge Protection Yes
Noise Filtering Yes
Power Conditioning Yes

Physical
Color Black
Height 3.3 in (84 mm)
Width 17.2 in (438 mm)
Depth 23.3 in (593 mm)
Weight 68.34 lbs (31.0 kg)
Form Factor Rackmount
Rack Height 2U

Environmental
Operating Temperature 32°F to 104°F (0°C to 40°C)
Operating Humidity 0% to 95% Non-Condensing
Storage Temperature -13°F to 131°F (-25°C to 55°C)
Storage Humidity 0% to 95% Non-Condensing
Operating Altitude Up to 10,000 ft (3,048 m)
Storage Altitude Up to 30,000 ft (9,144 m)

Conformance
UPS Type Line-Interactive
Output Waveform Pure Sine Wave
Condition Refurbished with New Batteries
Warranty 1 Year Full Replacement Warranty Included
