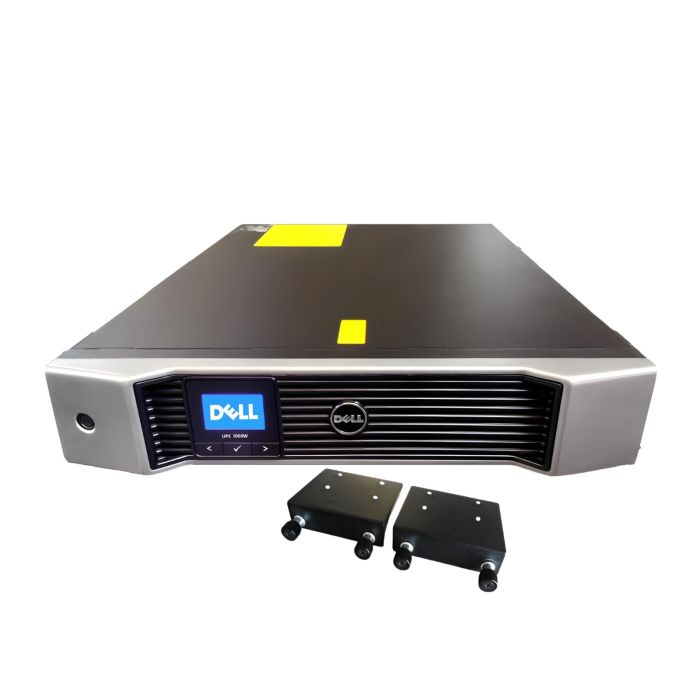

Dell UPS H919N 1500VA 1000W RM 2U 120V 15A Output: (4)5-15R,(2)C13 - Refurbished

Dell UPS 1000W 1500VA H919N 2U 15A
Model: H919N - 1500VA/1000W

 Input: IEC 320-C14 (120V - 15A)

Output: (4) NEMA 5-15R, (2) IEC C13
Line-Interactive UPS - Pure Sine Wave Output
New Batteries, Refurbished UPS
1 Year Warranty Included

In stock

Manufacturer: Dell
Model Description: Dell 1500VA 1000W Rackmount 2U Line-Interactive UPS
Condition: New Batteries, Refurbished UPS
Part Number: H919N

Typical Backup Time at Half Load: 12 Minutes (500W)

Typical Backup Time at Full Load: 4 Minutes (1000W

Output Waveform: Sine wave
Warranty: 1 Year Full Replacement Warranty

Description: The Dell H919N is a 1500VA / 1000W line-interactive rackmount UPS designed to provide reliable backup power and surge protection for servers, network switches, telecommunications equipment, and other critical IT devices. Operating at 120V, it features pure sine wave output, Automatic Voltage Regulation (AVR), and output connections including (4) NEMA 5-15R and (2) IEC C13 receptacles. The H919N includes USB and RS-232 communication ports, hot-swappable batteries, and support for optional network management, making it ideal for small business and enterprise rack environments. Refurbished with new batteries and backed by a 1 Year Full Replacement Warranty.





Dell UPS H919N 1500VA 1000W RM 2U 120V 15A - User Manual





H919N - Dell 1500VA 1000W UPS Specifications:

Key Features
UPS Topology Line-Interactive
Form Factor Rackmount
Rack Height 2U
UPS Capacity 1500VA / 1000W
Waveform Type Pure Sine Wave
Input Voltage 120V AC
Output Voltage 120V AC
Input Connection NEMA 5-15P
Output Connections (4) NEMA 5-15R, (2) IEC C13
Total Output Receptacles 6
Automatic Voltage Regulation (AVR) Yes
Hot-Swappable Batteries Yes
User Interface LCD Status Display
Application Servers, Switches, Storage, VoIP & Networking Equipment

Output
Rated Output Capacity 1500VA / 1000W
Output Voltage 120V AC
Output Frequency 50/60 Hz
Waveform Output Pure Sine Wave
Output Receptacles (4) NEMA 5-15R
  (2) IEC C13
Transfer Time Typical 2-6 ms
Voltage Regulation Automatic Voltage Regulation (AVR)
Surge Protection Integrated
Overload Protection Yes
Power Conditioning Yes

Input
Input Voltage 120V AC
Input Plug Type NEMA 5-15P
Input Frequency 50/60 Hz
Input Protection Circuit Breaker Protected
Input Power Feed Single Phase
Power Factor Correction Active

Battery & Runtime
Battery Type Sealed Lead-Acid
Battery Replacement User Replaceable
Battery Access Front Accessible
Hot-Swappable Batteries Yes
Typical Runtime @ 50% Load Approximately 12 Minutes
Typical Runtime @ Full Load Approximately 4 Minutes
Recharge Time Approximately 6 Hours
Battery Management Intelligent Battery Monitoring
Extended Runtime Capability No

Communications & Management
LCD Display Yes
USB Port Yes
RS-232 Serial Port Yes
Network Management Support Optional
Remote Monitoring Supported
Power Management Software Dell UPS Management Software
Event Logging Supported
User Configuration LCD Menu System
Alarm Notifications Audible & Visual
Automatic Shutdown Supported

Physical
Height 3.5 in (89 mm)
Width 17.2 in (437 mm)
Depth 19.7 in (500 mm)
Net Weight Approximately 55 lbs (25 kg)
Color Black
Rack Height 2U
Mounting Type Rackmount
Rail Kit Optional

Environmental
Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -15°C to 50°C (5°F to 122°F)
Operating Humidity 0-95% Non-Condensing
Storage Humidity 0-95% Non-Condensing
Operating Altitude Up to 10,000 ft
Audible Noise Less Than 45 dBA

Certifications & Compliance
Safety Certifications UL Listed, cUL Listed
EMC Compliance FCC Class A
RoHS Compliant Yes
Energy Saving Features Yes
