Eaton 5P UPS Tower 1000VA 770W 15A 120V Outputs:(8)5-15R, 5P1000 - Refurbished

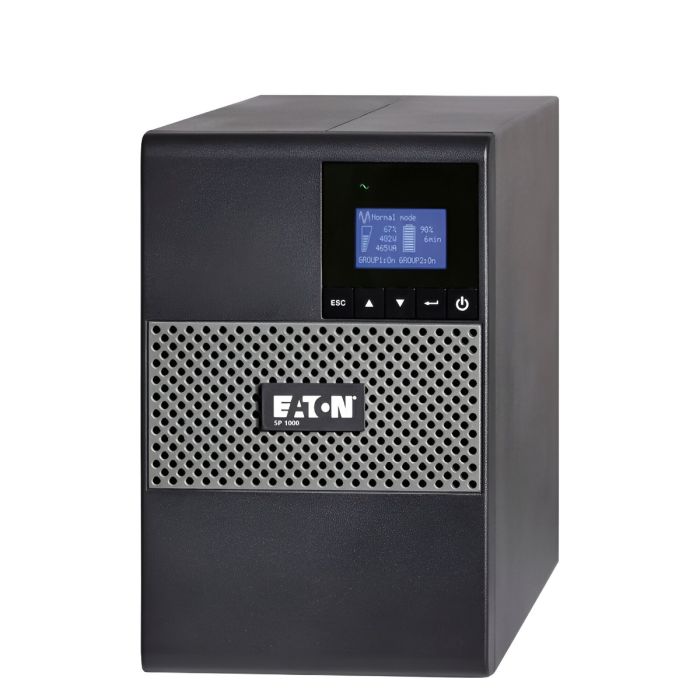

Eaton 5P 1000VA 770W Tower 120V UPS
Model: 5P1000
Input: NEMA 5-15P
Output: (8) NEMA 5-15R
Line-Interactive UPS – Sinewave Output
New Batteries – Refurbished UPS
1-Year Warranty Included

Extended Warranty

1 Year Included

2 Year + $70.00

3 Year + $122.50

Back Order

Quantity

Manufacturer: Eaton

Model: Eaton 5P 1000VA 770W Tower, 120V

Condition: New batteries, refurbished UPS

Part Number: 5P1000

Maximum output: 770W / 1000VA

Typical backup time at half load: ~13 minutes (385 Watts)

Typical backup time at full load: ~4 minutes (770 Watts)

Warranty: 1 year full replacement warranty

Eaton 5P – 1000VA 770W Tower 120V 5P1000 - User Manual

5P1000 - Eaton 5P 1000VA 770W Specifications:

Product Name	Eaton 5P UPS
Catalog Number	5P1000
Product Length/Depth	13.6 in
Product Height	9.1 in
Product Width	5.9 in
Product Weight	25.3 lb
Compliances	RoHS Compliant, CE Marked
Certifications	IEC 62040-2 C1-C2, EN 55024, CISPR22 Class B, FCC Part 15 Class B, UL 1778, UL 497A, cULus Listed
Battery Type	Sealed lead-acid
Battery Replacement	User replaceable
Battery Management	ABM technology (3-stage charging extends battery life 50%)
Extended Battery Capability	None (5PX required for extended runtime)
Output Voltage	120V
Output Receptacles	(8) 5-15R
Wattage	770 W
VA Rating	1000 VA
Output Voltage Range	102–132 Vac
Output Nominal Voltage	120V default (100/120/125V)
Topology	Line-interactive
Input Connection	5-15P
Input Nominal Voltage	120V default (100/110/120/127V)
Input Power Factor	0.77
Input Cord Length	6 ft
Input Voltage Range	89–151 Vac (adjustable 70–153 Vac)
Input Frequency Range	47–70 Hz (50 Hz), 56.5–70 Hz (60 Hz), 40–70 Hz (low-sensitivity mode)
Nominal Frequency	50–60 Hz
Communications	RS-232 (RJ45), USB (HID), cables included
Expansion Slots	1 slot (Network-MS, Network-M2 optional)
Software Compatibility	Eaton Intelligent Power Manager
Altitude	Up to 10,000 ft
Noise Level	<45 dB at 1 m
Temperature Range	0–35°C (32–95°F)
BTU Rating	106 (online), 500 (battery)
Relative Humidity	0–90% non-condensing
Form Factor	Tower
Color	Black/Silver
Efficiency at Max Load	97%
Warranty	1-year factory warranty
