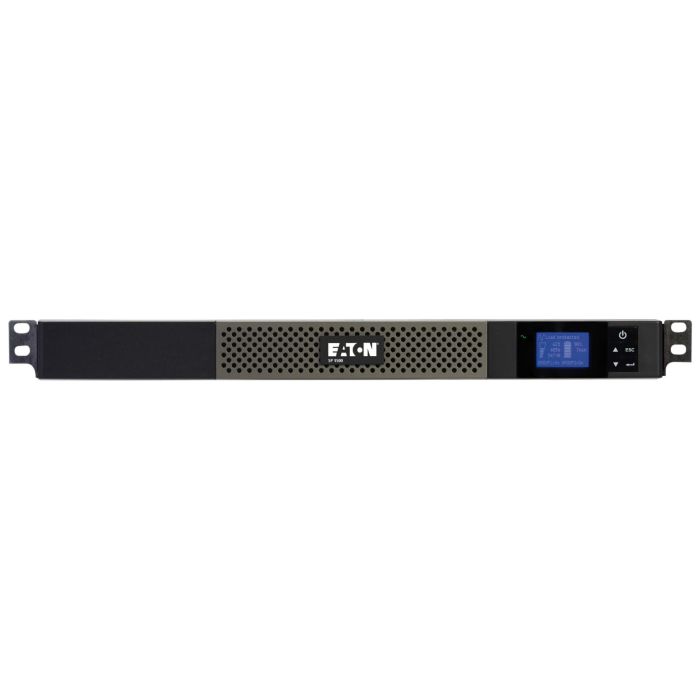

Eaton 5P UPS 1500VA 1100W RM 1U 120V 15A Output: (5) NEMA 5-15R, 5P1500R - Refurbished
Eaton 5P UPS 1500VA 1100W RM 1U 120V 15A
Model: 5P1500R
Input: NEMA 5-15P (15A 120V)
Output: (5) NEMA 5-15R
Line Interactive UPS - Sinewave Output
New batteries, Refurbished UPS
1 Year Warranty Included
$699.99
In stock
Manufacturer: Eaton
Model: Eaton 5P 1500VA 1100W RM 1U, 15A, 120V
Condition: New Batteries, Refurbished UPS
Part Number: 5P1500R
Maximum output: 1100W / 1500VA
Typical backup time at half load: 8 minutes (550 Watts)
Typical backup time at full load: 4 minutes (1100 Watts)
Warranty: 1 year full replacement warranty
Eaton 5P - 1500VA 1100W RM 1U 120V 5P1500R - User Manual
5P1500R - Eaton UPS 1500VA Specifications:
General:
|
Topology |
Line interactive |
|
Form Factor |
Rackmount |
|
Catalog Number |
5P1500R |
|
Color |
Black/Silver |
|
Rating (VA/Watts) |
1500VA / 1100W |
|
Dimensions (H x W x D, inches) |
1.7 x 17.4 x 21.8 |
|
Dimensions (H x W x D, mm) |
43 x 441 x 553 |
|
Weight (kg) |
20 |
|
Weight (lbs) |
44.1 |
|
Rack Size |
1U |
|
Rail Kit: |
Not included / Sold separately |
Electrical Input:
|
Connection |
|
||
|
Input Cord |
6 ft. |
||
|
Input Voltage Range |
89-151 Vac (adjustable to 70-153 Vac) |
||
|
Input Nominal Voltage |
120V default (100/110/120/125V) |
||
|
Frequency |
50/60 Hz (auto-sensing) |
||
|
Frequency Range |
47–47-70 Hz (50 Hz system), 56.5-70 Hz (60 Hz system), 40-70 Hz in low-sensitivity mode |
||
|
Input Power Factor |
0.77 |
Electrical Output:
|
Output Receptacles |
|
||
|
Voltage |
120V |
||
|
Voltage Range |
102-132 Vac |
||
|
Output Nominal Range |
120V default (100/120/125V) |
||
|
Wattage |
1100W |
Battery:
|
Battery Type |
Sealed, lead-acid |
|
Battery Management |
ABM technology (3-stage charging extends battery service life by 50% and provides advance warning for battery replacement) |
Communications:
|
Communication Ports |
RS-232 (RJ45) ports; USB port as standard (HID). 6-foot RS-232 and USB cables included |
|
Expansion Slots |
One slot; Gigabit Network Card (Network-M2) is optional |
|
Power Management Software |
Eaton Intelligent Power Manager (included) |
