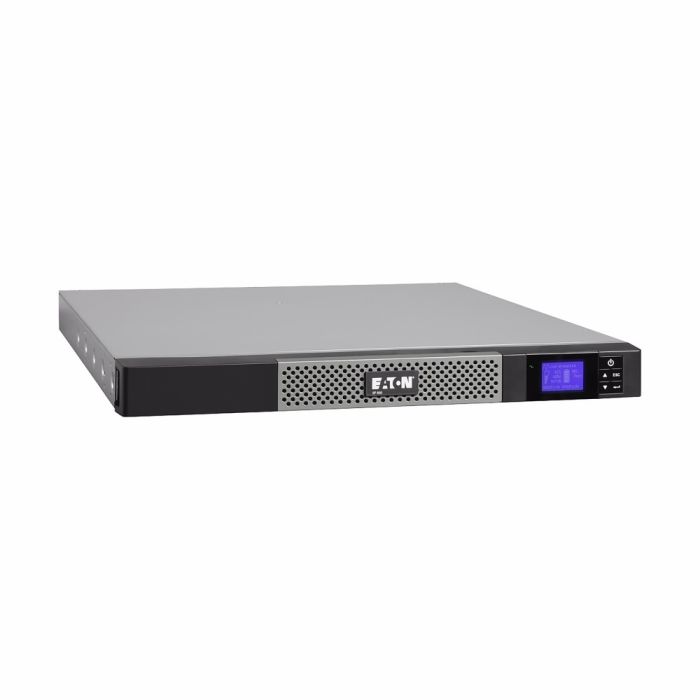

Eaton 5P 1550VA 1100W RM 1U 208V/230V/240V 5P1550IR - Refurbished

Product Name

Eaton 5P UPS

Catalog Number

5P1550IR

UPC

743172042934

Product Length/Depth

438 mm

Product Height

43.2 mm

Product Width

554 mm

Product Weight

19.36 kg

Compliances

CE Marked
TUV

Certifications

IEC/EN 62040-1
UL 1778
IEC/EN 62040-2
CE
EAC
cTUVus

Secondary Frequency - Max

60 Hz

Output Waveform

Sine Wave

Wattage

1100W

Output Power Factor

0.7

Form Factor

Rack

Enclosure

Black/Silver

Includes Network Card

No

Input Connection

Input Voltage - Min

150V

Output Voltage - Max

240V

Secondary Frequency - Min

50 Hz

Software Compatibility

Eaton Intelligent Power Manager, Eaton Intelligent Power Protector

Battery Replacement

User replaceable

Battery Type

Lead-acid maintenance-free (replaceable)

Efficiency

97

Special Fatures

Automatic Voltage Regulation (AVR)
High-density protection for networks: 1U only
Energy efficient, reduce energy and cooling costs
Delivers clean sinewave output
1 slot for optional com card (Network management card, Relay card or Network and Industrial card)
Compatible with Virtual environments (VMware, Hyper-V, Citrix Xen, Redhat)
Fully integrates with Eaton Intelligent Power Manager software
1 USB port + 1 serial port
Advanced Battery Management (ABM) technology to increase battery lifetime
Next-generation graphical LCD display
Hot swappable batteries
Remote reboot and runtime optimization thanks to 2 manageable outlet groups

Construction Type

482.6 mm (19 inch) device

Output Voltage - Min

200V

Color

Black/Silver

Extended Battery Capability

No

Output Voltage Range

230 V (+6%/-10%)

Topology

Line-interactive

BTU Rating

Online: 225

Runtime at Half Load

13 min

Input Nominal Voltage

230V default (200/208/220/230/240V)

Input Frequency Range

47-70 Hz (50 Hz system), 56.5-70 Hz (60 Hz system), 40 Hz in low sensitivity mode

Input Voltage - Max

294V

Voltage Type

AC

Phase (Output)

1

Battery Management

ABM or constant voltage charging method (user selectable), automatic battery test, deep discharge protection

Auto Shutdown Function

Yes

Number of Outputs C13

6

VA Rating

1550VA

Potential Free Switch Contact

Yes

Receptacle

(6) C13

Phase (Input)

1

Noise Level

<40 dB at 1 meter

Feed Type

1

User Interface

Multilingual Graphical LCD Display

Battery Quantity

3

Rack Size

1U

Voltage

230V

Temperature Range

0-90% non-condensing

Ethernet Interface

No

Communication

USB port (HID compliant)
Serial port (RS232)
Mini-terminal block for remote On/Off and Remote Power Off
Dry contacts (2 outputs, optocoupler, RJ)

Relative Humidity

0-90% non-condensing

Rack Mounting Kit

Not included

Output Frequency

50/60 Hz

Runtime at Full Load

4 min

Type of Interface

Other

Primary Frequency - Min

47 Hz

Battery Rating

12V / 9Ah

Type

UPS

Output Nominal Voltage

230V default (200/208/220/230/240V)

Expansion Slots

One slot for optional communication card

Input Voltage Range

160 - 294V (adjustable to 150V - 294V)

Nominal Frequency

50-60 Hz

Primary Frequency - Max

70 Hz

Altitude

2000 m
