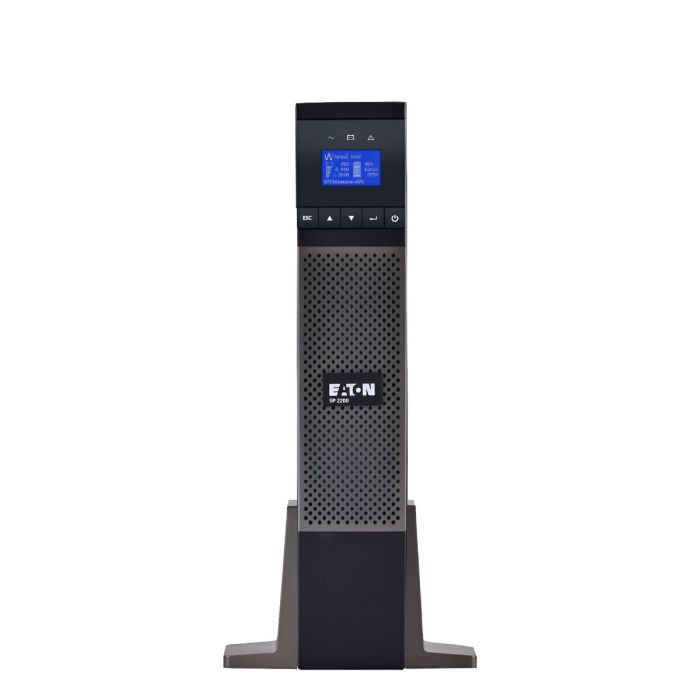

Eaton 5P UPS 1950VA 1920W Tower 120V 20A Output:(8)5-20R, 5P2200 - Refurbished

Eaton 5P UPS 1950VA 1920W Tower 120V 20A
Model: 5P2200
Input: NEMA 5-20P
Output: (8) NEMA 5-20R
Line Interactive UPS - Sinewave Output
New batteries, Refurbished UPS
1 Year Warranty Included

Additional Warranty

1 Year Included

2 Year + $130.00

3 Year + $227.50

Back Order

Quantity

Manufacturer: Eaton
Model: Eaton 5P 1950VA 1920W Tower, 120V 20A
Condition: New batteries, refurbished UPS
Part Number: 5P2200
Maximum output: 1950V / 1920W
Typical backup time at half load: 8 minutes (960 Watts)
Typical backup time at full load: 3 minutes (1920 Watts)
Warranty: 1 year full replacement warranty

Eaton 5P - 1950VA 1920W Tower 120V 20A 5P2200 - User Manual

5P2200 - Eaton UPS 1920W Specifications:

General:

Product Name	Eaton 5P UPS
Catalog Number	5P2200
Product Length/Depth	20.6 in
Product Height	3.4 in
Product Width	17.4 in
Product Weight	65 lb
Compliances	FCC Part 15 Class A Subpart B Sections 15.107b , 15.109b FCC Part 15
Certifications	UL 497A UL 1778 cUL Listed

Battery:

Battery type	Sealed, lead-acid
Battery replacement	User replaceable
Battery management	ABM technology (3-stage charging extends battery service life by 50% and provides advance warning for battery replacement)
Extended battery capability	None; See Eaton 5PX UPS for extended runtimes options

Electrical Output:

Voltage	120V
Wattage	1920 W
Output voltage range	102-132 Vac
Output frequency	50/60 Hz
Output nominal voltage	120V default (100/120/125V)
Topology	Line-interactive

Electrical Input:

Input connection	5-20P
Input nominal voltage	120V default (100/110/120/127V)
Nominal frequency	50-60 Hz
Input power factor	0.98
Input cord length	8 ft
Input voltage range	89-151 Vac (adjustable to 70-153 Vac)
Input frequency range	47-70 Hz (50 Hz system), 56.5-70 Hz (60 Hz system), 40 Hz in low-sensitivity mode

Communications:

Communication	1 USB HID compliant port + 1 RS232 serial port and relay contacts (USB and RS232 ports cannot be used simultaneously)
Expansion slots	One slot; Gigabit Network Card (Network-M2 or Network-MS) is Optional
Software compatibility	Eaton Intelligent Power Manager

Enviromental:

Altitude	Up to 10,000 ft (3000m) without de-rating
Noise level	<45 dB at 1 meter
Temperature range	0° to 40°C (32° to 104°F)
BTU Rating	Online: 305, Battery: 2047
Relative humidity	20-95% non-condensing

Additional Specifications:

Form factor	Tower
Color	Black/silver
Efficiency	97%
