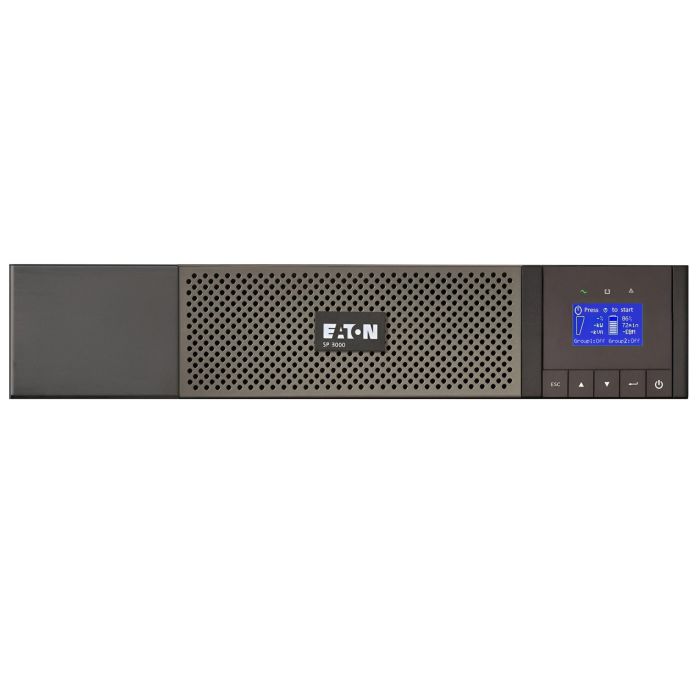

Eaton 5P3000 UPS 3000VA 2700W RM 2U 30A 120V Output: (6)5-20R, (1)L5-30R - Refurbished
Eaton 5P 3000VA 2700W RM 2U 120V 30A
Model: 5P3000
Input: NEMA L5-30P - 30A 120V
Output: (6) 5-20R, (1) L5-30R
Line Interactive UPS - Sinewave Output
New batteries, Refurbished UPS
1 Year Warranty Included
$849.99
In stock
Manufacturer: Eaton
Model:Â Eaton 5PÂ 3000VA 2700W RM 2U, 120V 30A
Condition: New batteries, refurbished UPS
Part Number: 5P3000
Maximum output:Â 3000VAÂ / 2700W
Typical backup time at half load:Â 10 minutes (1350 Watts)
Typical backup time at full load: 4Â minutes (2700 Watts)
Warranty: 1 year full replacement warranty
Eaton 5PÂ - 3000VA 2700W RM 2U 120V 5P3000 Manual
5P3000 - Eaton UPS 2700W Specifications:
General:
|
Product Name |
Eaton 5P UPS |
|
Catalog Number |
5P3000 |
|
Product Length/Depth |
25.5 in |
|
Product Height |
17.4 in |
|
Product Width |
3.4 in |
|
Product Weight |
81 lb |
|
Compliances |
FCC Part 15 Class A Subpart B Sections 15.107b , 15.109b |
|
Certifications |
cUL Listed |
Battery:
|
Battery Type |
Sealed, Lead-acid |
|
Battery Replacement |
User Replaceable |
|
Battery Management |
ABM technology (3-stage charging extends battery service life by 50% and provides advance warning for battery replacement) |
|
Extended Battery Capability |
None; See Eaton 5PX UPS for extended runtimes options |
Electrical Output:
|
Voltage |
120V |
|
Receptacle |
(6) 5-20R; (1) L5-30R |
|
Wattage |
2700W |
|
Output Voltage Range |
102-132 Vac |
|
Output Frequency |
50/60 Hz |
|
Output Nominal Voltage |
120V default (100/120/125V) |
|
Topology |
Line-interactive |
Electrical Input:
|
Input Connection |
L5-30P |
|
Input Nominal Voltage |
120V default (100/110/120/127V) |
|
Nominal Frequency |
50-60 Hz |
|
Input Power Factor |
0.9 |
|
Input Cord Length |
10 ft |
|
Input Voltage Range |
89-151 Vac (adjustable to 70-153 Vac) |
|
Input Frequency Range |
47-70 Hz (50 Hz system), 56.5-70 Hz (60 Hz system), 40 Hz in low-sensitivity mode |
Communications:
|
Communication |
1 USB HID compliant port + 1 RS232 serial port and relay contacts (USB and RS232 ports cannot be used simultaneously) |
|
Expansion Slots |
One slot; Gigabit Network Card (Network-M2 or Network-MS) is optional |
|
Software Compatibility |
Eaton Intelligent Power Manager (included) |
Environmental:
|
Altitude |
Up to 10,000 ft (3000m) without de-rating |
|
Noise Level |
<50 dB at 1 meter |
|
Temperature Range |
0° to 40°C (32° to 104°F) |
|
BTU Rating |
Online: 305, Battery: 2047 |
|
Relative Humidity |
20-95% non-condensing |
Additional Specifications:
|
Form Factor |
Rackmount 2U |
|
Color |
Black/Silver |
|
Efficiency |
97% |
