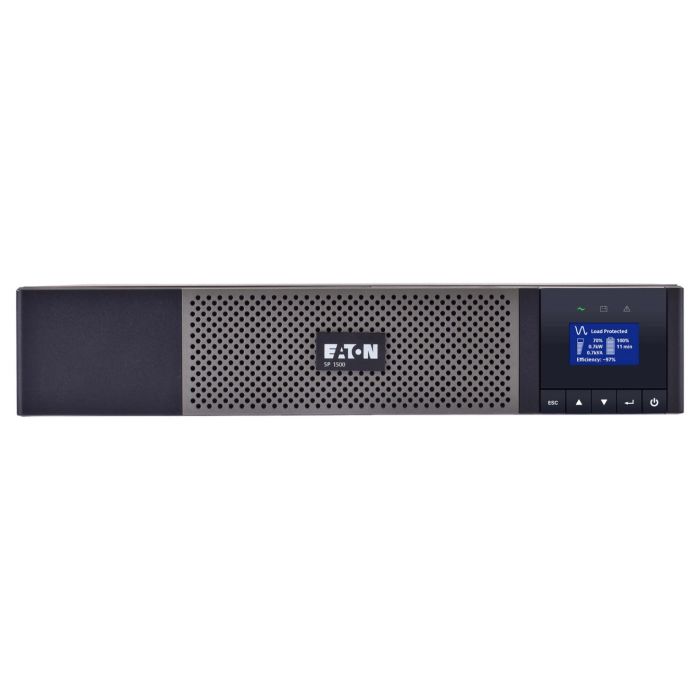

Eaton 5P UPS 1440VA 1440W RM 2U 120V 15A Output: (8)5-15R, 5P1500RT - Refurbished
Eaton 5P UPS 1440VA 1440W Rack/Tower 2U 120V 15A
Model: 5P1500RT
Input: NEMA 5-15P (120V - 15A)
Output: (8) NEMA 5-15R
Line Interactive UPS - Â True Sine Wave
New Batteries, Refurbished UPS
1 Year Warranty Included
$449.99
Back Order
Manufacturer: Eaton
Model: Eaton 5P 1440VA 1440W RM 2U, 120V, New Batteries, Refurbished UPS
Condition: New Batteries, Refurbished UPS
Part Number: 5P1500RT
Maximum output: 1440WÂ /Â 1440VA
Typical backup time at half load: 11 minutes (720 Watts)
Typical backup time at full load: 3 minutes (1440 Watts)
Warranty: 1 year full replacement warranty
Eaton 5P 1440VA 1440W RM 2U 120V 5P1500RT - User Manual
5P1500RT - Eaton 1440VA 1440W RM Specifications:
General:
|
Topology |
Line interactive |
|
Configuration |
Rack |
|
Rack Height |
2U |
|
Catalog Number |
5P1500RT |
|
Color |
Black |
|
Rating (VA/Watts) |
1440VA / 1440W |
|
Diagnostics |
Full system self-test at power up |
|
Dimensions (H x W x D, inches) |
3.4 x 17.4 x 20.6 |
|
Dimensions (H x W x D, mm) |
86 x 441 x 522 |
|
Weight (kg) |
29 |
|
Weight (lbs) |
65 |
|
Warranty |
3 years on electronics, 3 years on batteries with registration |
|
Rail Kit Included |
Tower stands and 4-post rail kit included |
|
Efficiency |
up to 98% |
Electrical Input:
|
Connection |
(1) NEMA 5-15P |
|
Input Cord |
8 ft. |
|
Input Voltage Range |
89–151 Vac (adjustable to 70–153 Vac) |
|
Nominal Voltage |
120 Vac (adjustable to100/120/127 Vac) |
|
Frequency |
50/60 Hz (auto-sensing) |
|
Frequency Range |
47–70 Hz (50 Hz system), |
|
Input Power Factor |
1 |
Electrical Output:
|
Output Receptacles |
(8) NEMA 5-15R |
|
On Utility Voltage Regulation |
102–132 Vac |
|
On Battery Voltage Regulation |
-10%, +6% of nominal |
|
Output Frequency |
50/60 Hz ±0.1 % (autosensing) |
|
Transfer Time |
1–4 ms typical |
|
Load Segments |
Group 1: (2) 5-15R outlets |
|
Battery Management |
ABM® technology and temperature-compensated charging method (user selectable), automatic battery test, deep discharge protection, automatic recognition of extended battery modules (EBMs) |
|
Battery Type |
12V/7.2 Ah; sealed, lead-acid; maintenance free |
|
Battery Replacement |
Hot-swappable internal batteries |
|
Start On Battery |
Allows start of UPS without utility power |
Communications:
|
User Interface |
LCD graphical display |
|
LEDs |
Load protected, battery and fault |
|
Communication Ports |
1 USB HID compliant port + 1 RS232 serial port and relay contacts (USB and RS232 ports cannot be used simultaneously) |
|
Communications Card Slots |
1 slot for ConnectUPS-MS network management card - Optional |
