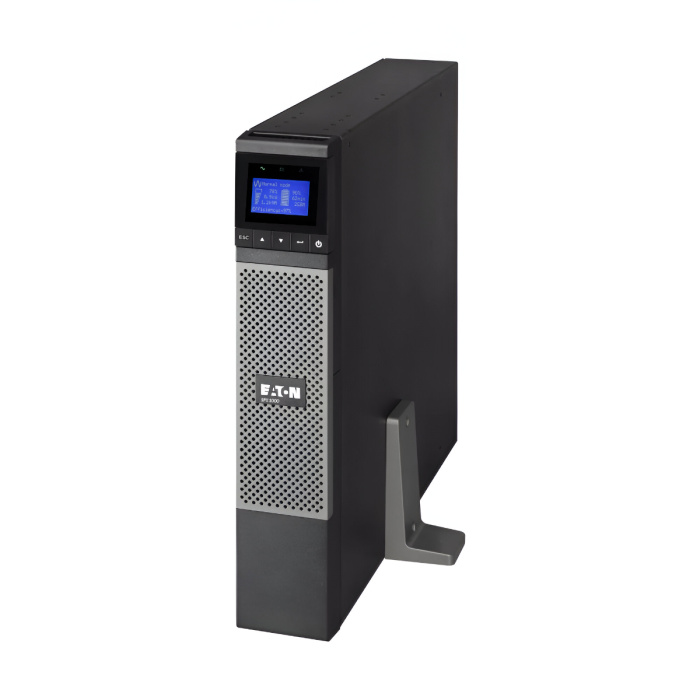

Eaton 5PX1000RT UPS 1000VA 1kW 120V 15A Smart LCD Tower Out: (8)5-15R, RM 2U - Refurbished

Manufacturer: Eaton
Model: Eaton 5PX 1000VA 1000W Tower, 120V
Condition: New Batteries, Refurbished UPS
Part Number: 5PX1000RT
Maximum output: 1000W / 1000VA
Typical backup time at half load: 16 minutes (500 Watts)
Typical backup time at full load: 7 minutes (1000 Watts)
Warranty: 1 Year Full Replacement Warranty

Description : The Eaton 5PX1000RT is a 1000VA / 1000W line-interactive UPS designed to provide advanced power protection for servers, network equipment, storage devices, security systems, and other critical electronics. Featuring pure sine wave output, ABM® battery management technology, Automatic Voltage Regulation (AVR), graphical LCD display, and support for up to four external battery modules, the 5PX1000RT delivers enterprise-class reliability and scalable runtime. The rack/tower convertible design provides installation flexibility, while the optional Network Card-MS enables advanced remote monitoring and management. Refurbished with new batteries and backed by a 1 Year Full Replacement Warranty.

Eaton 5PX - 1000VA 1000W Tower 120V 5PX1000RT - User Manual

5PX1000RT - Eaton UPS 1000VA Tower - Specifications:

General
Product Name	Eaton 5PX UPS
Catalog Number	5PX1000RT
UPS Topology	Line-Interactive
Rated Power	1000VA
Rated Power (Watts)	1000W
Output Power Factor	1.0
Output Waveform	Pure Sine Wave
Form Factor	Tower
Color	Black / Silver
User Interface	LCD Graphical Display
Efficiency	Up to 99%
Input
Input Connection	NEMA 5-15P
Input Cord Length	8 ft
Nominal Input Voltage	120V Default (100/110/120/127V Selectable)
Input Voltage Range	89-151 VAC (Adjustable to 70-153 VAC)
Input Frequency	50/60 Hz
Input Frequency Range	47-70 Hz (50 Hz System), 56.5-70 Hz (60 Hz System), 40 Hz Low-Sensitivity Mode
Input Power Factor	1.0
Feed Type	Single Phase
Output
Output Capacity	1000VA
Output Power	1000W
Output Voltage	120V Default (100/120/125V Selectable)
Output Voltage Range	102-132 VAC
Output Frequency	50/60 Hz
Output Waveform	Pure Sine Wave
Output Receptacles	(8) NEMA 5-15R
Automatic Voltage Regulation (AVR)	Yes
Power Factor	1.0
Batteries & Runtime
Battery Type	Sealed Lead-Acid
Battery Rating	12V / 7.2Ah
User Replaceable Batteries	Yes
Battery Management	ABM® Technology
Deep Discharge Protection	Yes
Temperature Compensated Charging	Yes
Typical Runtime at Half Load	16 Minutes (500 Watts)
Typical Runtime at Full Load	7 Minutes (1000 Watts)
Extended Battery Capability	Yes
Compatible EBM	5PXEBM48RT
Maximum External Battery Modules	4
Automatic EBM Detection	Yes
Communications & Management
Display Type	LCD Graphical Display
Expansion Slots	1
Network Management Card Support	Optional Network Card-MS / Network Card-M2
Software Included	Eaton Intelligent Power Manager
Remote Monitoring	Optional
Event Logging	Yes
Power Management	Yes
Communication Card Support	Yes
Physical
Height	3.4 in
Width	17.4 in
Depth	20.6 in
Weight	62 lbs
Rack Height	2U
Form Factor	Tower
Environmental
Operating Temperature	32°F to 104°F (0°C to 40°C)
Relative Humidity	20-95% Non-Condensing
Operating Altitude	Up to 10,000 ft (3000 m) Without Derating
Noise Level	<45 dB at 1 Meter
BTU Rating (Online)	305 BTU/hr
BTU Rating (Battery Mode)	2047 BTU/hr
Compliance & Certifications
Safety Certifications	UL 1778
	UL 497A
	cTUVus
	cUL Listed
	UL Listed
	NOM
EMC Compliance	FCC Part 15 Class A
CE Marked	Yes
Condition	New Batteries, Refurbished UPS
Warranty	1 Year Full Replacement Warranty Included
