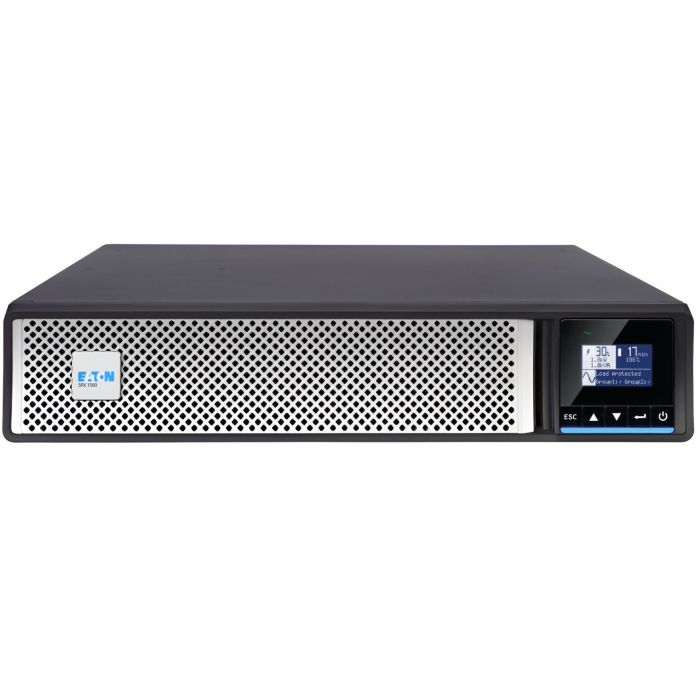

Eaton 5PX G2 UPS 1440VA 1440W RM 2U 120V 15A 5PX1500RTG2 - Refurbished
Eaton 5PX G2 UPS 1440VA 1440W RM 2U 120V 15A
Model: 5PX1500RTG2
Input: NEMA 5-15P - 120V
Output: (8) NEMA 5-15R
Line Interactive UPS - Sinewave Output
New batteries, Refurbished UPS
1 Year Warranty Included
Model: 5PX1500RTG2
Input: NEMA 5-15P - 120V
Output: (8) NEMA 5-15R
Line Interactive UPS - Sinewave Output
New batteries, Refurbished UPS
1 Year Warranty Included
$849.99
Back Order
Manufacturer: Eaton
Model: Eaton 5PX 1440VA 1440W RM 2U 120V
Condition: New batteries, refurbished UPS
Part Number: 5PX1500RTG2
Maximum output: 1440VA / 1440W
Warranty: 1-Year full replacement warranty with registration
Â
Eaton 5PX1500RTG2 - UPS 1440VA 1440W RM 2U 120V - User's Manual
Â
Â
5PX1500RTG2 - Eaton 5PX 1440VA 1440W Specifications:
Â
Main:
|
Main Input Voltage |
120V |
|
Main Output Voltage |
120V |
|
Kw Rating |
1440W |
|
Rated Power in VA |
1440VA |
|
Input Connection Type |
NEMA 5-15P |
|
Output Connection Type |
(8) 5-15R |
|
Number of Rack Units |
2U |
|
Cable Length |
10 ft (3.05 m) |
|
Number of Cables |
1 |
|
Battery Type |
Sealed, lead-acid |
Â
Batteries & Runtime:
|
Included Battery Modules |
0 |
|
Extendable Run Time |
Up to 4 external battery modules (EBM) available for extended runtimes |
|
Battery Slots Empty |
4 (for external battery modules) |
|
Typical Recharge Time |
3 hours |
|
RBC Quantity |
1 (User Replaceable) |
|
Battery Life |
3-5 years (with proper maintenance) |
|
Replacement Battery |
EBP-1613 |
|
Battery Charge Power (Watts) |
540W rated |
Â
General:
|
Number of Power Module Filled Slots |
0 |
|
Number of Power Module Free Slots |
0 |
|
Redundant |
 No |
Â
Physical:
|
Color |
Black |
|
Height |
3.4 in (8.64 cm) |
|
Width |
17.2 in (43.69 cm) |
|
Depth |
17.6 in (44.7 cm) |
|
Net Weight |
50.7 lb (23 kg) |
|
Mounting Location |
Front |
|
Mounting Preference |
Lower |
|
Mounting Mode |
Rackmount |
|
USB Compatible |
Yes (USB and RS-232 ports included) |
Input:
|
Efficiency at Full Load |
Up to 98% at maximum load |
|
Input Frequency |
50/60 Hz (auto-sensing) |
|
Input Voltage Range |
89–151 VAC (adjustable to 70–153 VAC) |
|
Input Power Factor |
1.0 (optimal power utilization) |
Â
Output:
|
Harmonic Distortion |
Less than 5% at full load |
|
Maximum Configurable Power in VA |
1440 VA |
|
Max Configurable Power (Watts) |
1440W |
|
Transfer Time |
2ms typical; 4ms maximum |
|
Topology |
Line-Interactive |
|
Waveform Type |
Pure Sine Wave |
|
Output Frequency (sync to mains) |
47...53 Hz for 50 Hz nominal; 57...63 Hz for 60 Hz nominal sync to mains |
Â
Environmental:
|
Acoustic Level |
<45 dBA at 1 meter |
|
Heat Dissipation |
Online: 160 BTU/hr, Battery: 699 BTU/hr |
|
Operating Altitude |
Up to 10,000 ft (3000 m) without derating |
|
Ambient Air Temperature for Operation |
0°C to 40°C (32°F to 104°F) |
|
Ambient Air Temperature for Storage |
-5°C to 55°C (23°F to 131°F) |
|
Storage Altitude |
Up to 50,000 ft (15,240 m) |
|
Relative Humidity |
0–90% (non-condensing) |
|
Storage Relative Humidity |
0–95% (non-condensing) |
Â
Communications & Management:
|
Control Panel |
LCD graphical display, load and battery status indicators |
|
Emergency Power Off (EPO) |
Optional (can be integrated) |
|
SmartSlotâ„¢ Cards |
Gigabit Network Management Card (Optional)Â |
|
Alarm |
Battery low, overload, replace battery, and other notifications |
Â
Surge Protection & Filtering:
|
Surge Energy Rating |
480 Joules |
|
Filtering |
Full-time multi-pole noise filtering, IEEE surge let-through, zero clamping time |
