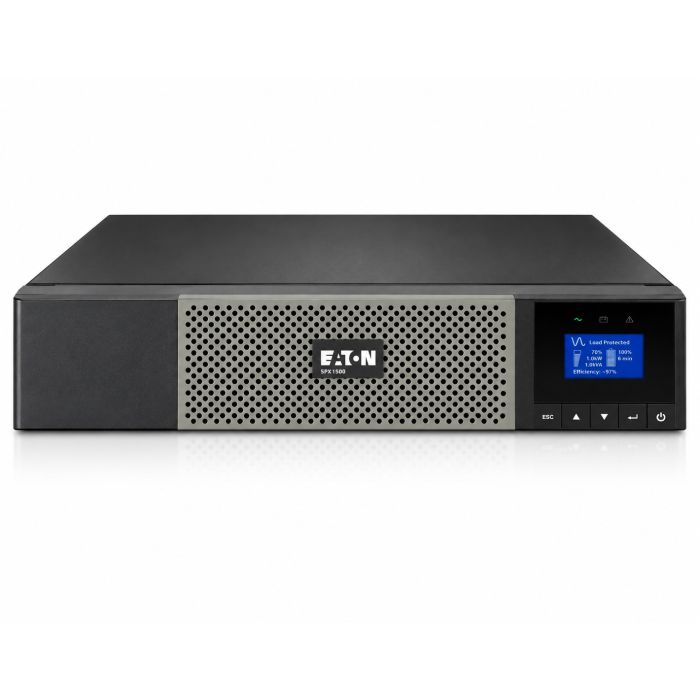

Eaton 5PX UPS 1500VA 1440W RM 2U 15A 120V Output: (8)5-15R, 5PX1500RT - Refurbished
Eaton 5PX 1500VA 1440W Rackmount UPS, 2U, 120V
Model: 5PX1500RT
Input: NEMA 5-15P (120V / 15A)
Output Connections: (8) NEMA 5-15R
Maximum Output Capacity: 1500VA / 1440W
Topology: Line-Interactive UPS
Waveform Type: Pure Sine Wave Output
Automatic Voltage Regulation (AVR)
Hot-Swappable Batteries
LCD Graphical Display with Load & Battery Monitoring
New Batteries Installed, Refurbished UPS
1 Year Full Replacement Warranty Included
$549.99
In stock
Manufacturer: Eaton
Model: Eaton 5PX 1440VA 1440W, RM, 2U, 15A, 120VÂ
Condition: New batteries, refurbished UPS
Part Number: 5PX1500RT
Maximum output: 1440WÂ /Â 1440VA
Typical backup time at half load: 11 minutes (720 Watts)
Typical backup time at full load: 3 minutes (1440 Watts)
Warranty: 1 year full replacement warranty
Description: The Eaton 5PX1500RT is a 2U rackmount line-interactive UPS designed to provide reliable power protection for servers, switches, storage systems, and networking equipment. Delivering 1500VA / 1440W of pure sine wave output power, it features Automatic Voltage Regulation (AVR), hot-swappable batteries, programmable load segments, and an LCD graphical display for real-time monitoring. Optional network management support enables remote monitoring, shutdown, and power management for enterprise and data center environments.
Â
Â
Eaton 5PX 440VA 1440W RM 2U 120V 5PX1500RT User's Manual
Â
5PX1500RT - Eaton 5PX 1440VA Specifications:
| Key Features | Â |
| UPS Topology | Line-Interactive |
| Form Factor | Rackmount |
| Rack Height | 2U |
| Rated Power Capacity | 1500VA / 1440W |
| Output Power Factor | 1.0 |
| Waveform Type | Pure Sine Wave |
| Input Voltage | 120V |
| Output Voltage | 120V |
| Input Connection | NEMA 5-15P |
| Output Connections | (8) NEMA 5-15R |
| Input Cord Length | 8 ft |
| Efficiency | Up to 98% |
| Automatic Voltage Regulation (AVR) | Yes |
| Hot-Swappable Batteries | Yes |
| Extended Runtime Support | Yes |
| External Battery Module Compatibility | Eaton 5PXEBM48RT |
| Programmable Load Segments | Yes |
| Cold Start Capability | Yes |
| Generator Compatible | Yes |
| Diagnostics | Full system self-test at startup |
| Application | Servers, switches, storage, and networking equipment |
| Â | Â |
| Output | Â |
| Nominal Output Voltage | 120V |
| Output Receptacles | (8) NEMA 5-15R |
| Maximum Output Power | 1440W |
| Maximum Output Capacity | 1500VA |
| Output Frequency | 50/60 Hz ±0.1% |
| Transfer Time | 1–4 ms typical |
| Voltage Regulation (Utility Mode) | 102–132 Vac |
| Voltage Regulation (Battery Mode) | -10%, +6% of nominal |
| Waveform Output | Pure Sine Wave |
| Load Segment Control | Supported |
| Power Sequencing | Supported via software |
| Surge Protection | Integrated |
| Efficiency at Full Load | Up to 98% |
| Â | Â |
| Input | Â |
| Input Voltage Range | 89–151 Vac adjustable |
| Nominal Input Voltage | 100/120/127 Vac selectable |
| Input Frequency | 50/60 Hz auto-sensing |
| Frequency Range | 47–70 Hz |
| Input Power Factor | 1 |
| Input Sensitivity | User configurable |
| Low Voltage Transfer | Adjustable |
| High Voltage Transfer | Adjustable |
| Generator Support | Yes |
| Input Frequency Auto-Sensing | Yes |
| Â | Â |
| Battery & Runtime | Â |
| Battery Type | Sealed Lead-Acid |
| Battery Voltage | 12V / 7.2Ah |
| Battery Replacement | Hot-swappable |
| Battery Management | ABM® technology with temperature-compensated charging |
| Deep Discharge Protection | Yes |
| Automatic Battery Test | Yes |
| Typical Runtime Half Load | 11 minutes (720W) |
| Typical Runtime Full Load | 3 minutes (1440W) |
| External Battery Module | 5PXEBM48RT |
| Runtime Expansion | Supports up to 4 EBMs |
| Start on Battery | Supported |
| Â | Â |
| Communications & Management | Â |
| User Interface | LCD graphical display |
| LEDs | Load protected, battery, and fault indicators |
| Communication Ports | USB HID, RS232 serial, relay contacts |
| Network Management Support | Optional Network-M2 card |
| Power Management Software | Eaton Intelligent Power Software |
| Remote Monitoring | Supported with optional network card |
| Remote Shutdown | Supported |
| Event Logging | Supported |
| Battery Monitoring | Advanced battery health monitoring |
| Alarm Notifications | Audible and visual alarms |
| User Configuration | LCD-based local configuration |
| Environmental Monitoring | Supported with optional network card |
| Firmware Updates | Supported with optional network card |
| Â | Â |
| Physical | Â |
| Height | 3.4 inches (86 mm) |
| Width | 17.4 inches (441 mm) |
| Depth | 20.6 inches (522 mm) |
| Net Weight | 65 lbs (29 kg) |
| Color | Black |
| Mounting Mode | Rack-mounted |
| Rail Kit | Optional 4-post rail kit |
| Â | Â |
| Environmental | Â |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Operating Humidity | 0–95% non-condensing |
| Storage Temperature | -15°C to 45°C (5°F to 113°F) |
| Operating Altitude | Up to 10,000 ft |
| Audible Noise | Low acoustic operation |
