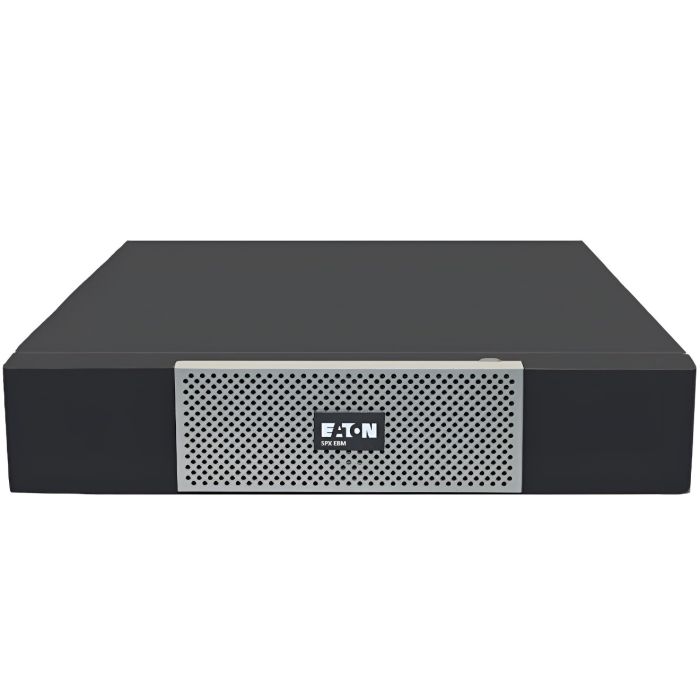

Eaton 5PX 48V Extended Runtime Battery Module (EBM) RM 2U 5PXEBM48RT - Refurbished
Eaton 5PX 48V Extended Battery Module, Rack/Tower, 2U
Compatible with Eaton 5PX 1000VA / 1500VA / 2200VA UPS Systems
Model: 5PXEBM48RT
Hot-Swappable VRLA Battery Module (8 × 12V / 9Ah)
Expandable Runtime – Supports Up to (4) External Battery Modules
New Batteries, Refurbished Battery Cabinet
1 Year Full Replacement Warranty Included
$599.99
In stock
 Manufacturer: Eaton
Model: Eaton 5PX Extended Battery Module (EBM) for 5PX 1000VA / 1500VA / 2200VA UPS Systems
Condition: New Batteries, Refurbished Battery Cabinet
Part Number: 5PXEBM48RT
Battery Type: Hot-Swappable, User-Replaceable Sealed VRLA Batteries (8 × 12V / 9Ah)
Runtime Expansion: Supports Up to (4) 5PXEBM48RT External Battery Modules per Compatible UPS
Compatible UPS Models: Eaton 5PX 1000RT, 5PX1500RT, 5PX2200RT and Compatible Tower Models
Form Factor: Rack/Tower Convertible, 2U
Included: Refurbished 5PXEBM48RT Battery Cabinet, EBM Power Cable, EBM Detection Cable, Rack Mount Ears
Warranty: 1 Year Full Replacement Warranty Included
Â
Â
Eaton 5PXEBM48RT 5PX RM 2U Extended Battery Module (EBM) - User Manual
Â
Â
5PXEBM48RT - Eaton 5PX RM 48V 2UÂ Specifications:
| General | Â |
| Manufacturer | Eaton |
| Model | 5PXEBM48RT |
| Product Series | Eaton 5PX |
| Product Type | Extended Battery Module (EBM) |
| Form Factor | Rackmount / Tower Convertible |
| Rack Height | 2U |
| Compatible UPS Models | Eaton 5PX 1000VA, 1500VA & 2200VA Models |
| Runtime Expansion | Supports Up to (4) External Battery Modules per Compatible UPS |
| Construction Type | Free Standing Model |
| Color | Black / Silver |
| Rack Mount Kit | Included |
| Â | Â |
| Battery | Â |
| Battery Type | Sealed Valve-Regulated Lead Acid (VRLA) |
| Battery Chemistry | Maintenance-Free Lead Acid |
| Battery Rating | 12V / 9Ah |
| Number of Batteries | 8 |
| Battery Replacement | User Replaceable |
| Battery Charging | Managed Automatically by the Connected UPS |
| Runtime Expansion | Yes |
| Â | Â |
| Compatibility | Â |
| Compatible UPS Series | Eaton 5PX |
| Compatible Models | 5PX1000RT, 5PX1500RT, 5PX2200RT and Compatible Tower Versions |
| Maximum Supported EBMs | Up to 4 |
| Detection | Automatic EBM Detection by Compatible UPS |
| Â | Â |
| Connections | Â |
| Input Connection | C14 |
| Interface Type | Dedicated Battery Interface |
| Output Waveform | Pure Sine Wave (Generated by the Connected UPS) |
| Â | Â |
| Installation | Â |
| Installation Type | Plug-and-Play |
| Mounting Options | Rackmount or Tower |
| Rack Mount Kit | Included |
| Recommended Installation | Connect to UPS While Powered Off |
| Â | Â |
| Physical | Â |
| Form Factor | Rackmount |
| Rack Size | 2U |
| Height | 3.39 in (86.2 mm) |
| Width | 20.55 in (522 mm) |
| Depth | 17.37 in (441.2 mm) |
| Net Weight | 72.3 lb (32.8 kg) |
| Color | Black / Silver |
| Â | Â |
| Compliance | Â |
| Certifications | UL 1778, IEC/EN 62040-1, IEC/EN 62040-2, cTUVus, CE, EAC |
| Compliance | CE Marked, TUV |
| Â | Â |
| Warranty | Â |
| Condition | New Batteries, Refurbished Battery Cabinet |
| Warranty | 1 Year Full Replacement Warranty Included |
