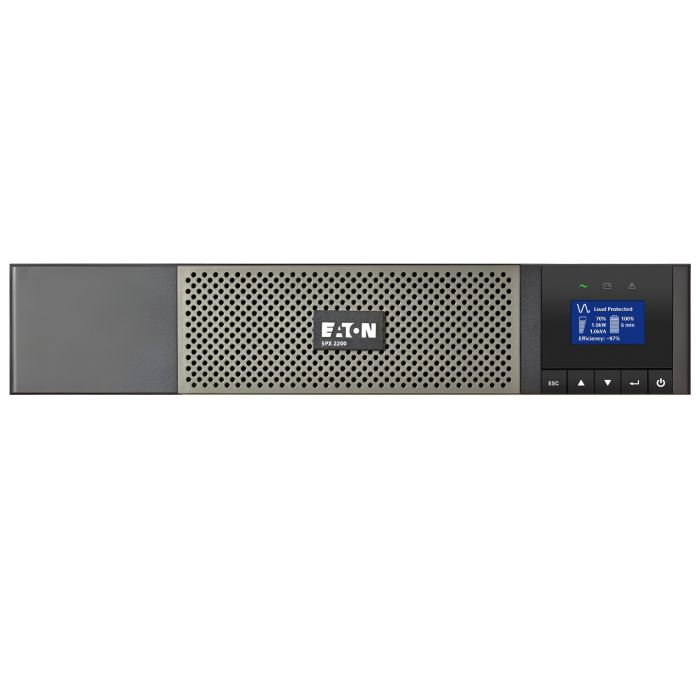

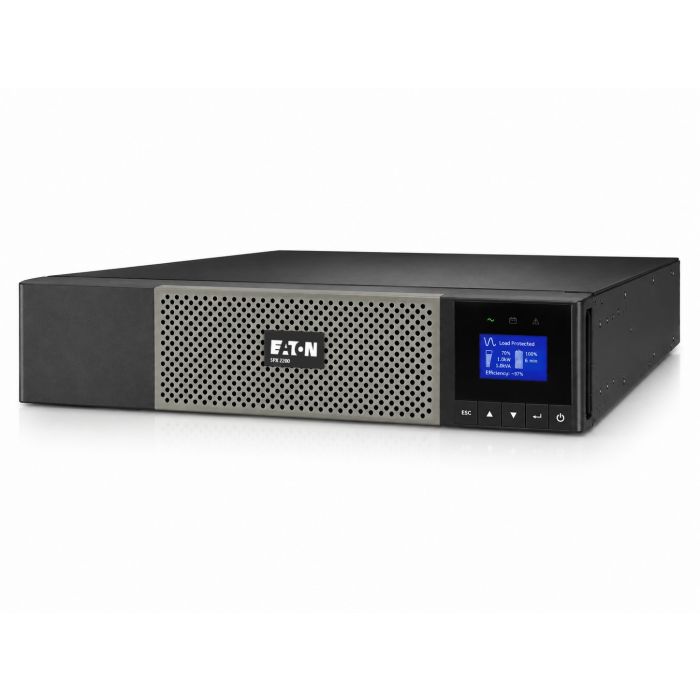

Eaton 5PX 1950VA 1920W RM 2U 120V 20A, Output:(8)5-20R, 5PX2200RT - Refurbished

Eaton 5PX 1950VA 1920W RM 2U 120V 20A, ABM® Advanced Battery Management Technology
Model: 5PX2200RT
Input: NEMA 5-20P (120V - 20A)
Output Connections: (8) NEMA 5-20R
Line Interactive UPS - Sinewave Output

Automatic Voltage Regulation (AVR)

New Batteries Installed, Refurbished UPS
1 Year Full Replacement Warranty Included

In stock

Manufacturer: Eaton
Model: Eaton 5PX 2200VA 1920W Line-Interactive UPS, RM 2U, 120V 20A
Condition: New Batteries,Refurbished UPS
Part Number: 5PX2200RT
Maximum output: 1920W / 2200VA
Typical backup time at half load: 13 minutes (960 Watts)
Typical backup time at full load: 4 minutes (1920 Watts)
Warranty: 1 Year full replacement warranty

Description: The Eaton 5PX2200RT is a 2U rackmount line-interactive UPS designed to provide reliable power protection for servers, switches, storage systems, and networking equipment. Delivering 2200VA / 1920W of pure sine wave output power, it features Automatic Voltage Regulation (AVR), hot-swappable batteries, Eaton ABM® battery management technology, programmable load segments, and an LCD graphical display for real-time monitoring. Optional network management support enables remote monitoring, shutdown, environmental monitoring, and power management for enterprise and data center environments.








Eaton 5PX - 1950VA 1920W RM 2U 120V 5PX2200RT Manual






5PX2200RT - Eaton UPS 2200VA Specifications:

Key Features
UPS Topology Line-Interactive
Form Factor Rackmount / Tower Convertible
Rack Height 2U
Rated Power Capacity 2200VA / 1920W
Output Power Factor 0.98
Waveform Type Pure Sine Wave
Input Voltage 120V
Output Voltage 120V
Input Connection NEMA 5-20P
Output Connections (8) NEMA 5-20R
Input Cord Length 8 ft
Efficiency Up to 97%
Automatic Voltage Regulation (AVR) Yes
Hot-Swappable Batteries Yes
Extended Runtime Support Yes
External Battery Module Compatibility Eaton 5PXEBM48RT
Programmable Load Segments Yes
Cold Start Capability Yes
Generator Compatible Yes
LCD Display Graphical LCD Display
Application Servers, switches, storage, and networking equipment

Output
Nominal Output Voltage 120V (100/120/125V selectable)
Output Receptacles (8) NEMA 5-20R
Maximum Output Power 1920W
Maximum Output Capacity 2200VA
Output Frequency 50/60 Hz ±0.1%
Output Voltage Range 102–132 Vac
Waveform Output Pure Sine Wave
Output Power Factor 0.98
Load Segment Control Supported
Surge Protection Integrated
Efficiency at Full Load Up to 97%

Input
Input Voltage Range 89–151 Vac (adjustable to 70–153 Vac)
Nominal Input Voltage 120V default (100/110/120/127V selectable)
Input Frequency 50/60 Hz auto-sensing
Frequency Range 47–70 Hz
Input Power Factor 0.98
Maximum Input Current 20A
Generator Compatible Yes
Input Frequency Auto-Sensing Yes

Battery & Runtime
Battery Type Sealed Lead-Acid
Battery Rating 12V / 9Ah
Battery Replacement User Replaceable, Hot-Swappable
Battery Management ABM® technology with automatic battery testing
Deep Discharge Protection Yes
Typical Runtime Half Load Approximately 13 minutes (960W)
Typical Runtime Full Load Approximately 4 minutes (1920W)
External Battery Module 5PXEBM48RT
Runtime Expansion Supports up to 4 EBMs
Start on Battery Supported

Communications & Management
User Interface LCD Graphical Display
Communication Ports USB and Serial Connectivity
Expansion Slot One slot for optional Network Card-MS
Power Management Software Eaton Intelligent Power Manager Included
Remote Monitoring Supported with optional network card
Remote Shutdown Supported
Event Logging Supported
Battery Monitoring Advanced battery health monitoring
Alarm Notifications Audible and visual alarms
Environmental Monitoring Supported with optional network card
Firmware Updates Supported

Physical
Height 3.4 inches (86 mm)
Width 17.4 inches (441 mm)
Depth 20.6 inches (522 mm)
Net Weight 65 lbs (29 kg)
Color Black / Silver
Rack Mounting Kit Included
Mounting Mode Rack/Tower Convertible

Environmental
Operating Temperature 0°C to 40°C (32°F to 104°F)
Operating Humidity 20–95% non-condensing
Operating Altitude Up to 10,000 ft (3000 m) without derating
Noise Level <45 dB at 1 meter
BTU Rating 305 BTU/hr Online, 2047 BTU/hr On Battery
Certifications UL 1778, cUL Listed, cTUVus, NOM, UL 497A
Compliance CE, FCC Part 15 Class A
