FREE

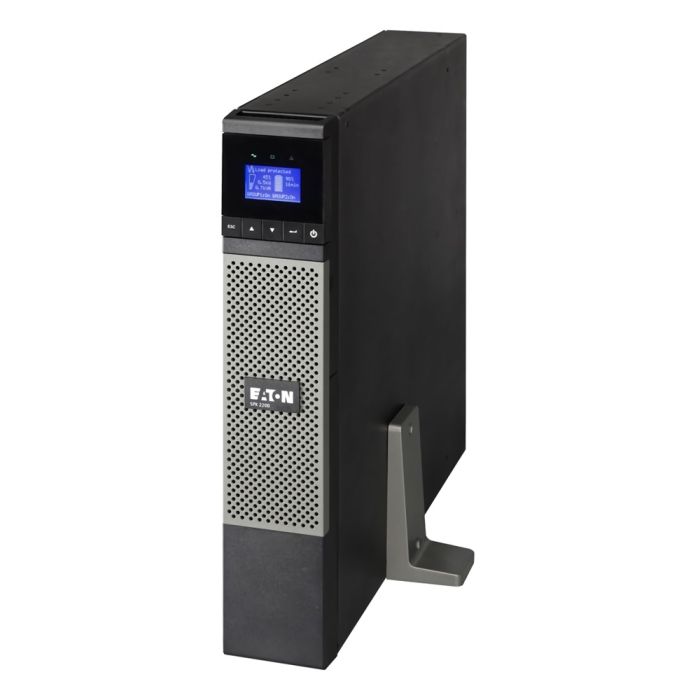

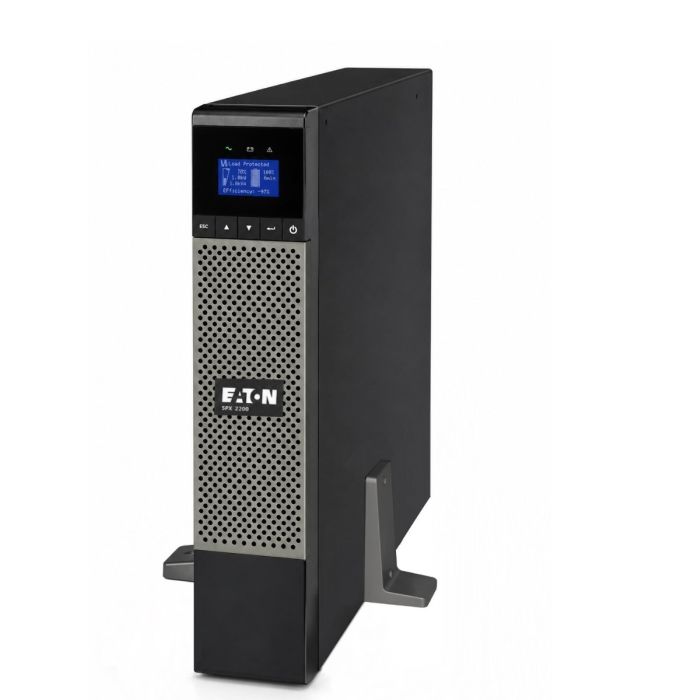

Eaton 5PX 1950VA 1920W Tower 120V 20A Output: (8)5-20R, 5PX2200RT - Refurbished
Eaton 5PX 1950VA 1920W Tower 120V ABM® Advanced Battery Management Technology
Model: 5PX2200RT
Input:Â NEMA 5-20P (120V - 20A)
Output Connections: (8) NEMA 5-20R
Line Interactive UPS - Sinewave Output
Automatic Voltage Regulation (AVR)
New Batteries Installed, Refurbished UPS
1 Year Full Replacement Warranty Included
$749.99
In stock
Manufacturer: Eaton
Model: Eaton 5PX 2200VA 1920W Tower, 120V
Condition: New batteries, refurbished UPS
Part Number: 5PX2200RT
Maximum output: 1920W / 2200VA
Typical backup time at half load:Â 7 minutes (960 Watts)
Typical backup time at full load: 3Â minutes (1920 Watts)
Warranty:Â 1 Year Full Replacement Warranty
Description: The Eaton 5PX2200RT Tower is a line-interactive tower UPS designed to provide reliable power protection for servers, network switches, storage systems, and critical IT equipment. Delivering 2200VA / 1920W of pure sine wave output power, it features Automatic Voltage Regulation (AVR), Eaton ABM® advanced battery management technology, hot-swappable batteries, and an LCD graphical display for real-time monitoring. With support for up to four external battery modules, optional network management capabilities, and up to 97% efficiency, the 5PX2200RT is ideal for business-critical power protection and extended runtime applications.
Â
Eaton 5PX - 1950VA 1920W Tower 120V 5PX2200RT - User Manual
5PX2200RT - Eaton UPS 1950VA Specifications:
| Key Features | Â |
| UPS Topology | Line-Interactive |
| Form Factor | Tower |
| Rated Power Capacity | 2200VA / 1920W |
| Output Power Factor | 0.98 |
| Waveform Type | Pure Sine Wave |
| Input Voltage | 120V |
| Output Voltage | 120V |
| Input Connection | NEMA 5-20P |
| Output Connections | (8) NEMA 5-20R |
| Input Cord Length | 8 ft |
| Efficiency | Up to 97% |
| Automatic Voltage Regulation (AVR) | Yes |
| Hot-Swappable Batteries | Yes |
| Extended Runtime Support | Yes |
| External Battery Module Compatibility | Eaton 5PXEBM48RT |
| Supports Up To | 4 External Battery Modules |
| User Interface | LCD Graphical Display |
| Application | Servers, switches, storage, and networking equipment |
| Â | Â |
| Output | Â |
| Nominal Output Voltage | 120V (100/120/125V selectable) |
| Output Receptacles | (8) NEMA 5-20R |
| Maximum Output Power | 1920W |
| Maximum Output Capacity | 2200VA |
| Output Frequency | 50/60 Hz |
| Output Voltage Range | 102–132 VAC |
| Waveform Output | Pure Sine Wave |
| Output Power Factor | 0.98 |
| Surge Protection | Integrated |
| Efficiency at Full Load | Up to 97% |
| Â | Â |
| Input | Â |
| Input Voltage Range | 89–151 VAC (adjustable to 70–153 VAC) |
| Nominal Input Voltage | 120V default (100/110/120/127V selectable) |
| Input Frequency | 50/60 Hz auto-sensing |
| Input Frequency Range | 47–70 Hz |
| Input Power Factor | 0.98 |
| Maximum Input Current | 20A |
| Generator Compatible | Yes |
| Input Frequency Auto-Sensing | Yes |
| Â | Â |
| Battery & Runtime | Â |
| Battery Type | Sealed Lead-Acid |
| Battery Rating | 12V / 9Ah |
| Battery Replacement | User Replaceable |
| Battery Management | ABM® technology with automatic battery testing |
| Deep Discharge Protection | Yes |
| Typical Runtime Half Load | 7 minutes (960W) |
| Typical Runtime Full Load | 3 minutes (1920W) |
| External Battery Module | 5PXEBM48RT |
| Runtime Expansion | Supports up to 4 EBMs |
| Automatic Recognition of EBMs | Yes |
| Â | Â |
| Communications & Management | Â |
| User Interface | LCD Graphical Display |
| Expansion Slot | One slot for optional card Network-MS or Network-M2Â |
| Software Compatibility | Eaton Intelligent Power Manager |
| Remote Monitoring | Supported with optional network card |
| Event Logging | Supported |
| Battery Monitoring | Advanced battery health monitoring |
| Alarm Notifications | Audible and visual alarms |
| Environmental Monitoring | Supported with optional network card |
| User Configuration | LCD-based local configuration |
| Â | Â |
| Physical | Â |
| Height | 3.4 inches (86 mm) |
| Width | 17.4 inches (441 mm) |
| Depth | 20.6 inches (522 mm) |
| Net Weight | 65 lbs (29 kg) |
| Color | Black / Silver |
| Rack Mounting Kit | Not Included |
| Noise Level | <45 dB at 1 meter |
| Â | Â |
| Environmental | Â |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Operating Humidity | 20–95% non-condensing |
| Operating Altitude | Up to 10,000 ft (3000 m) without derating |
| BTU Rating | 305 BTU/hr Online, 2047 BTU/hr On Battery |
| Certifications | UL 1778, cUL Listed, cTUVus, NOM, UL 497A |
| Compliance | CE Marked, FCC Part 15 Class A |
