FREE

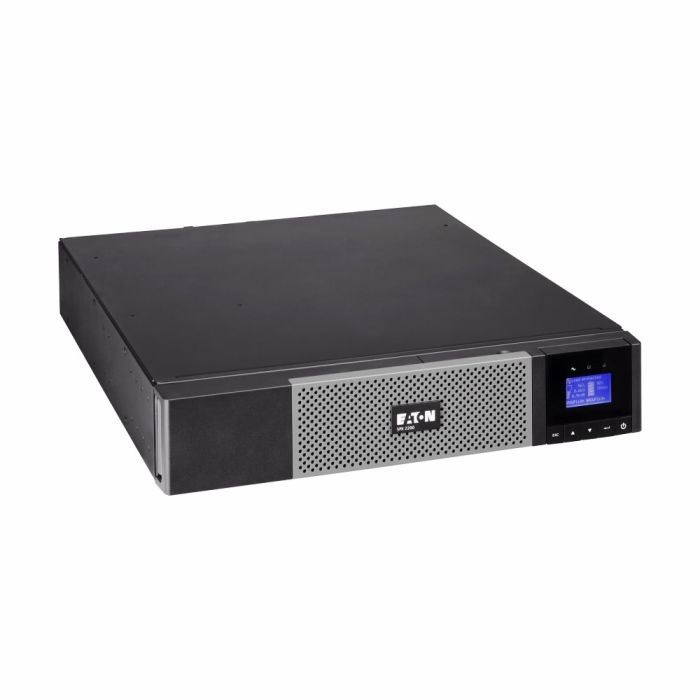

Eaton 5PX 2200VA 1980W RM 2U 230V 5PX2200IRT - Refurbished
Eaton 5PX 2200VA 1980W RM 2U 230V
Model: 5PX2200IRT
Input: IEC-320 C20
Output: (8) IEC-320 C13, (1) IEC-320 C19
Line Interactive UPS - Sinewave Output
New batteries, Refurbished UPS
1 Year Warranty Included
$649.99
Back Order
Manufacturer: Eaton
Model: Eaton 5PX 2200VA 1980W RM 2U, 230V
Condition: New batteries, refurbished UPS
Part Number: 5PX2200IRT
Maximum output: 1980W / 2200VA
Typical backup time at half load: 9 minutes (990 Watts)
Typical backup time at full load: 3 minutes (1980 Watts)
Warranty: 1 year full replacement warranty
Eaton 5PX - 2200VA 1980W RM 2U 230V 5PX2200IRT Manual
5PX2200IRT - Eaton UPS 2200VA Specifications:
General:
|
Topology |
Line interactive |
|
Configuration |
Rack/Tower |
|
Catalog Number |
5PX2200iRT |
|
Color |
Black |
|
Rating (VA/Watts) |
2200/1980 |
|
Diagnostics |
Full system self-test at power up |
|
UPS Bypass |
EHBPL3000R-PDU1U (optional) |
|
Dimensions (H x W x D, inches) |
3.4 x 17.4 x 20.6 |
|
Dimensions (H x W x D, mm) |
86 x 441 x 522 |
|
Weight (kg) |
29 |
|
Weight (lbs) |
63 |
|
Warranty |
3 years on electronics, 3 years on batteries with registration |
|
Rail Kit Included |
Tower stands and 4-post rail kit included |
|
Contents (Ships with the following items) |
5PX2200iRT |
Electrical Input:
|
Connection |
|
|
|
Input Voltage Range |
160–294 Vac (adjustable to 150–294 Vac) |
|
|
Nominal Voltage |
230 Vac (adjustable to 200/208/220/230/240 Vac) |
|
|
Frequency |
50/60 Hz (auto-sensing) |
|
|
Frequency Range |
47–70 Hz (50 Hz system) |
|
|
Input Power Factor |
0.9 |
Electrical Output:
|
Output Receptacles |
|
||||
|
On Utility Voltage Regulation |
184–265 Vac |
||||
|
On Battery Voltage Regulation |
-10%, +6% of nominal |
||||
|
Output Frequency |
50/60 Hz ±0.1 % (autosensing) |
||||
|
Transfer Time |
1–4 ms typical |
||||
|
Load Segments |
Group 1: (2) C13 outlets |
Battery:
|
Optional Extended Battery Module |
5PXEBM48RT |
|
Battery Management |
ABM® technology and temperature-compensated charging method (user selectable), automatic battery test, deep discharge protection, automatic recognition of extended battery modules (EBMs) |
|
Battery Type |
12V/9 Ah; sealed, lead-acid; maintenance free. Hot-swappable internal batteries and extended battery modules (EBMs). |
|
Battery Replacement |
EBP-1002 |
|
Start On Battery |
Allows start of UPS without utility power |
Communications:
|
User Interface |
LCD graphical display |
|
LEDs |
Load Protected, Battery, and Fault |
|
Communication Ports |
1 USB HID compliant port + 1 RS232 serial port and relay contacts (USB and RS232 ports cannot be used simultaneously) |
|
Communications Card Slots |
1 slot for ConnectUPS-MS network management card |
|
Power Management Software |
Eaton Intelligent Power Software Suite CD (included) |
