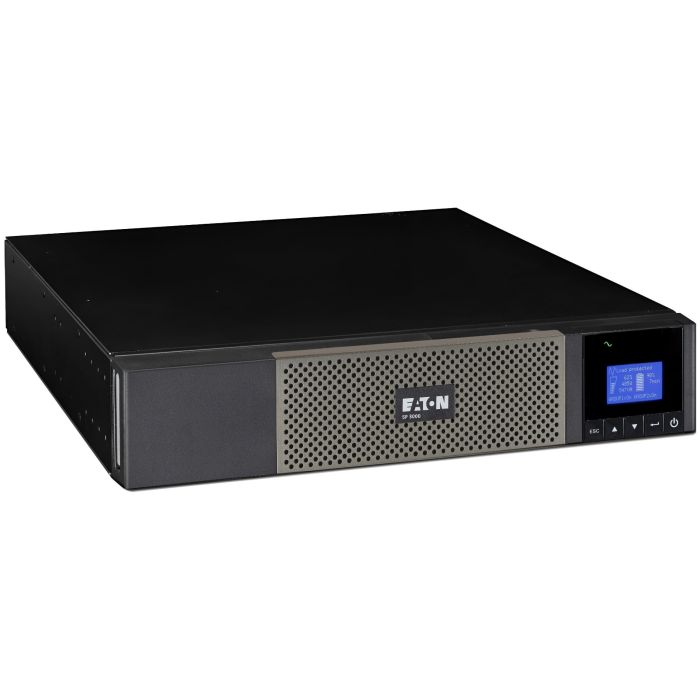

Eaton 5PX3000iRT2U 3000VA 2700W RM 2U 230 V Output: (8)IEC C13 & (1)IEC C19 – Refurbished
Eaton 5PX 3000 VA 2700 W RM 2U
Model: 5PX3000iRT2U
Input: IEC C14 (230 V)
Output: (8) (8) IEC C13, (1) IEC C19
Type: Line-Interactive UPS – True Sinewave Output
Condition: Refurbished UPS with New Batteries
Warranty: 1-Year Included
$1,299.99
In stock
Manufacturer: Eaton
Model: Eaton 5PX 3000VA 2700W RM 2U 230V
Condition: Refurbished UPS with New Batteries
Part Number: 5PX3000iRT2U
Maximum output: 2700 W / 3000 VA
Typical backup time at half load: ~17 minutes (1350 W)
Typical backup time at full load: ~4 minutes (2700 W)
Warranty: 1‑Year full replacement warranty
Eaton 5PX – 3000VA 2700W RM 2U 230V 5PX3000iRT2U - User Manual
5PX3000iRT2U – Eaton UPS 3000VA Specifications
|
Product Name |
Eaton 5PX UPS |
|
Catalog Number |
5PX3000iRT2U |
|
VA Rating |
3000 VA |
|
Wattage |
2700 W |
|
Topology |
Line‑interactive |
|
Form Factor |
Rack Mount 2U |
|
Input Connection |
IEC C20 |
|
Input Nominal Voltage |
230 V default (adjustable 200/208/220/230/240 V) |
|
Nominal Frequency |
50‑60 Hz |
|
Input Frequency Range |
47‑70 Hz (50 Hz system), 56.5‑70 Hz (60 Hz system) |
|
Input Power Factor |
0.9 |
|
Output Receptacles |
(8) IEC C13 and (1) IEC C19 |
|
Output Voltage |
230 V (default) |
|
Output Waveform |
True sine wave |
|
Output Voltage Range |
184‑265 Vac |
|
Output Frequency |
50/60 Hz |
|
Feed Type |
Single‑phase |
|
Battery Replacement |
User replaceable |
|
Expansion Slots |
One slot (Optional communication card) - NETWORK-MS, NETWORK-M2 |
|
User Interface |
Multilingual graphical LCD display |
|
Operating Temperature Range |
0° to 40 °C |
|
Relative Humidity |
20‑95 % non‑condensing |
|
Noise Level |
< 50 dB at 1 m |
|
Dimensions (HxWxD) |
3.4″ x 17.4″ x 25.5″ (86.2 mm x 441 mm x 647 mm) |
|
Weight |
38.08 kg (~84 lbs) |
|
Certifications |
CE Marked, IEC 62040‑1‑1, EN 62040‑1‑1/2/3, CB |
|
Altitude Rating |
Up to 10,000 ft / 3000 m without de‑rating |
