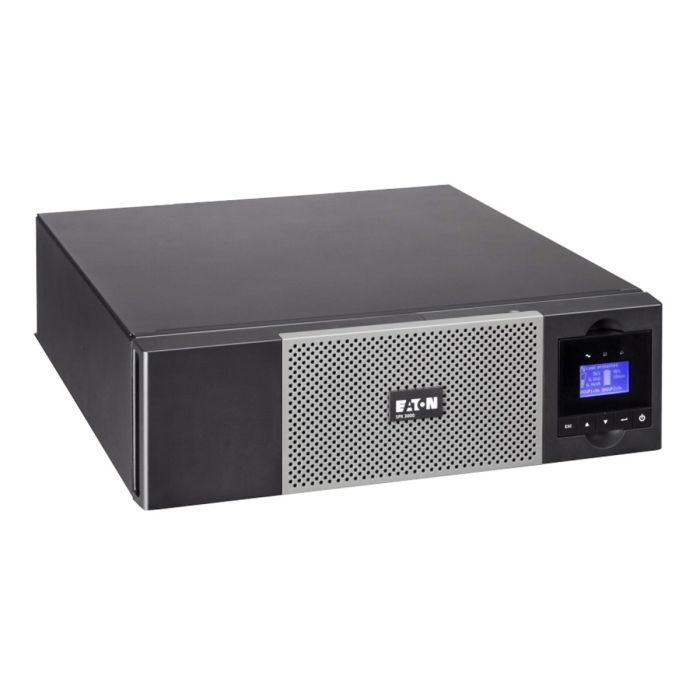

Eaton 5PX UPS 3000VA 2700W RM-3U 30A 5PX3000RT3U, Network-M2 Pre-Install - Refurbished
Eaton 5PX 3000VA 2700W RM 3U 120V
Model: 5PX3000RT3U
Input: NEMA L5-30P (30A 120V)
Output: (1) NEMA L5-30R, (6) NEMA L5-20R
Line Interactive UPS - Sinewave Output
New batteries, Refurbished UPS
1 Year Warranty Included
$1,399.99
Back Order
Manufacturer: Eaton
Model:Â Eaton 5PX 3000VA 2700W RM 3U, 120V, 30A, New Batteries, Refurbished UPS
Condition: New batteries, refurbished UPS
Part Number: 5PX3000RT3U
Maximum output: 2700WÂ /Â 3000VA
Typical backup time at half load: 10 minutes (1350 Watts)
Typical backup time at full load: 4 minutes (2700 Watts)
Warranty: 1 year full replacement warranty
Eaton 5PX - 3000VA 2700W RM 3U 120V 5PX3000RT3U Manual
5PX3000RT3U - Eaton UPS 3000VA Specifications:
General:
|
Topology |
Line interactive |
|
Configuration |
Rackmount |
|
Catalog Number |
5PX3000RT3U |
|
Color |
Black |
|
Rating (VA/Watts) |
3000VA / 2700W |
|
Diagnostics |
Full system self-test at power up |
|
UPS Bypass |
EHBPL3000R-PDU1U (optional) |
|
Dimensions (H x W x D, inches) |
5.1 x 17.4 x 19.6 |
|
Dimensions (H x W x D, mm) |
131 x 441 x 497 |
|
Weight (kg) |
38 |
|
Weight (lbs) |
86 |
|
Warranty |
3 years on electronics, 3 years on batteries with registration |
|
Rail Kit Included |
4-post rail kit included |
|
Contents (Ships with the following items) |
5PX3000RT3U |
Electrical Input:
|
Connection |
|
||
|
Input Cord |
10 ft. |
||
|
Input Voltage Range |
89–151 Vac (adjustable to 70–153 Vac) |
||
|
Nominal Voltage |
120 Vac (adjustable to100/120/127 Vac) |
||
|
Frequency |
50/60 Hz (auto-sensing) |
||
|
Frequency Range |
47–70 Hz (50 Hz system), 56.5–70 Hz (60 Hz system), 40 Hz in low-sensitivity mode |
||
|
Input Power Factor |
0.9 |
Electrical Output:
|
Output Receptacles |
|
||||
|
On Utility Voltage Regulation |
102–132 Vac |
||||
|
On Battery Voltage Regulation |
-10%, +6% of nominal |
||||
|
Output Frequency |
50/60 Hz ±0.1 % (autosensing) |
||||
|
Transfer Time |
1–4 ms typical |
||||
|
Load Segments |
Group 1: (2) 5-20R outlets |
Battery:
|
Optional Extended Battery Module |
5PXEBM72RT3U |
|
Battery Management |
ABM® technology and temperature-compensated charging method (user selectable), automatic battery test, deep discharge protection, automatic recognition of extended battery modules (EBMs) |
|
Battery Type |
12V/9 Ah; sealed, lead-acid; maintenance free |
|
Battery Replacement |
Hot-swappable internal batteries and extended battery modules (EBMs) |
|
Start On Battery |
Allows start of UPS without utility power |
Communications:
|
User Interface |
LCD graphical display |
|
LEDs |
Load protected, battery and fault |
|
Communication Ports |
1 USB HID compliant port + 1 RS232 serial port and relay contacts (USB and RS232 ports cannot be used simultaneously) |
|
Communications Card Slots |
1 slot for Connect UPS Network-M2 or MS network management card |
|
Power Management Software |
Eaton Intelligent Power Software Suite CD (included) |
