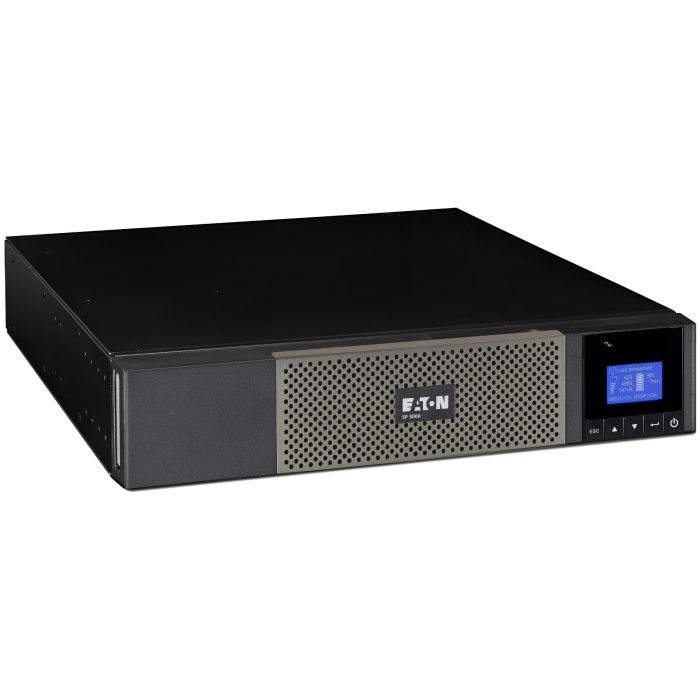

Eaton 5PX3000RT2U 3000VA 2700W RM 2U 120V 30A Output: (6)5-20R & (1)L5-30R - Refurbished
Eaton 5PX 3000VA 2700W RM 2U 120V
Model: 5PX3000RT2U
Input: NEMA L5-30P (30A 120V)
Output: (6) NEMA 5-20R, (1) NEMA L5-30R
Line Interactive UPS - Sinewave Output
New batteries, Refurbished UPS
1 Year Warranty Included
$999.99
In stock
Manufacturer: Eaton
Model: Eaton 5PX 3000VA 2700W, RM 2U, 120V, 30A
Condition: New batteries, refurbished UPS
Part Number: 5PX3000RT2U
Maximum output: 2700W / 3000VA
Typical backup time at half load: 10 minutes (1350 Watts)
Typical backup time at full load: 4 minutes (2700 Watts)
Warranty: 1 year full replacement warranty
Eaton 5PX - 3000VA 2700W RM 2U 120V 5PX3000RT2U Manual
5PX3000RT2U - Eaton UPS 3000VA Specifications:
General:
|
Product Name |
Eaton 5PX UPS |
|
Catalog Number |
5PX3000RT2U |
|
Product Height |
3.4 In. |
|
Product Width |
17.4 In. |
|
Product Weight |
87 lbs. |
|
Compliances |
CE Marked |
|
Certifications |
cTUVus |
|
Catalog Notes |
5PX replaces Evolution:_81715 and 81716, Add up to 4 EBMs, Allows start of UPS without utility power. |
Electrical Input:
|
Input Connection |
|
||
|
Input Nominal Voltage |
120V default (100/110/120/127V) |
||
|
Nominal Frequency |
50-60 Hz |
||
|
Input Power Factor |
0.9 |
||
|
Input Cord Length |
10 ft. |
||
|
Input Voltage Range |
89-151 Vac (adjustable to 70-153 Vac) |
||
|
Input Frequency Range |
47–70 Hz (50 Hz system), 56.5–70 Hz (60 Hz system), 40 Hz in low-sensitivity mode |
Electrical Output:
|
Output Receptacles |
|
||||
|
Voltage |
120V |
||||
|
Wattage |
2700W |
||||
|
Output Power Factor |
0.9 |
||||
|
Output Voltage Range |
102-132 Vac |
||||
|
Output Waveform |
Sine wave |
||||
|
Output Nominal Voltage |
120V default (100/120/125V) |
||||
|
Feed Type |
1 |
||||
|
Topology |
Line-interactive |
||||
|
VA Rating |
3000VA |
Battery:
|
Battery Replacement |
User replaceable |
|
Extended Battery Capability |
Add up to 4 extended battery modules (EBM). Part number 5PXEBM72RT2U |
Communications:
|
User Interface |
LCD graphical display |
|
Expansion Slots |
One slot; Gigabit Network Card (Network-M2) is optional - Not included with the purchase of the UPS |
|
Software Compatibility |
Eaton Intelligent Power Manager - Online download |
